To have a more user-friendly and efficient experience with EOSDA Crop Monitoring, you need to know more about the following interface tools:
These simple tools will save you a lot of time!
Filters are customizable search criteria. Your fields or scouting tasks (switch to the Scouting tab) can be easily filtered by crop names and group names. Simply check/uncheck the corresponding checkbox and click APPLY.
In order to sort your fields or scouting tasks (switch to the Scouting tab), use the sorting option on the right. Currently, the following sorting orders are available: Newest, Oldest, by field name: ascending/descending, or field area: Low to High/High to Low.
Not to waste your time by scrolling through the list of existing fields or tasks (switch to the Scouting tab), you can simply find a specific one using the Field search option by entering the field’s name into it.
Field card is a profile of a particular field, showcasing the most basic data:
– field name
– square (measured in ha)
– group (displayed if the field has been added to a group)
– crop (currently growing crop on this field)
– location (district and country)
The Find field button allows you to instantly zoom in on a field on the map.
By default, you are in the Monitoring tab where you can switch between different layers – My Crops, Vegetation, Water Stress, Vegetation Rating, and Crop Classification.
Pressing the Find field button, you get to view the field in any of these layers.
You can view several adjacent fields within your AOI (area of interest) at once, without opening their field cards one by one. This allows you to understand what is happening in your fields within this area at a glance. For example, if you need to view water stress levels of such fields, click on the Find field icon on the field’s card.
The tool also helps you to quickly get back to the field and zoom in on it on the map.
For example, if you opened the field card, zoomed out, or scrolled away, just press the Find field button to zoom in on the field again.
To get started with EOSDA Crop Monitoring, you need to find the Location first. Please choose one of the options:
1. Use Search box
Enter the geographical name of an object into the Search box.
2. Use coordinates
Enter the coordinates of an object into the Search box, longitude first, latitude last.
Note: For longitudes south of the equator, put a “-” (minus) before the number. Likewise, for latitudes west of the Greenwich Meridian, put a “-” (minus) before the number.
Zoom in (“+”) and out (“-”) is for easier navigation (same functionality is allowed by using a mouse wheel).
The measure distance tool (left sidebar) is designed to calculate the total area of a field or measure distance between objects. Outline your field or measure the distance to get the result displayed at the bottom of the screen.
The Split view feature allows you to compare vegetation indices for the selected field for different dates. This provides an opportunity to track the change dynamics of the state of crops on the field over time, based on the values of 5 different vegetation indices to detect problems and plan field activities effectively.
To get started, select the field you want to analyze from your Fields list and click on the Split view icon on the left side menu.
Your screen will be split into two equal parts.
Now you can select indices and dates to compare the data. To do this, use individual timelines and the index switching panel.

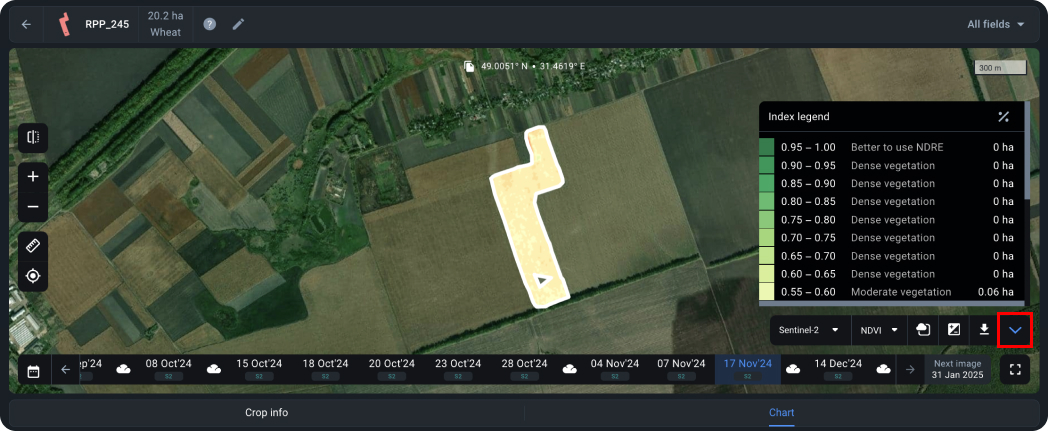

If necessary, you can expand the legend to check the values for the selected index, just like in the single view mode.
Note: By default, the NDVI values for the date of the last available image will be displayed for the selected field.

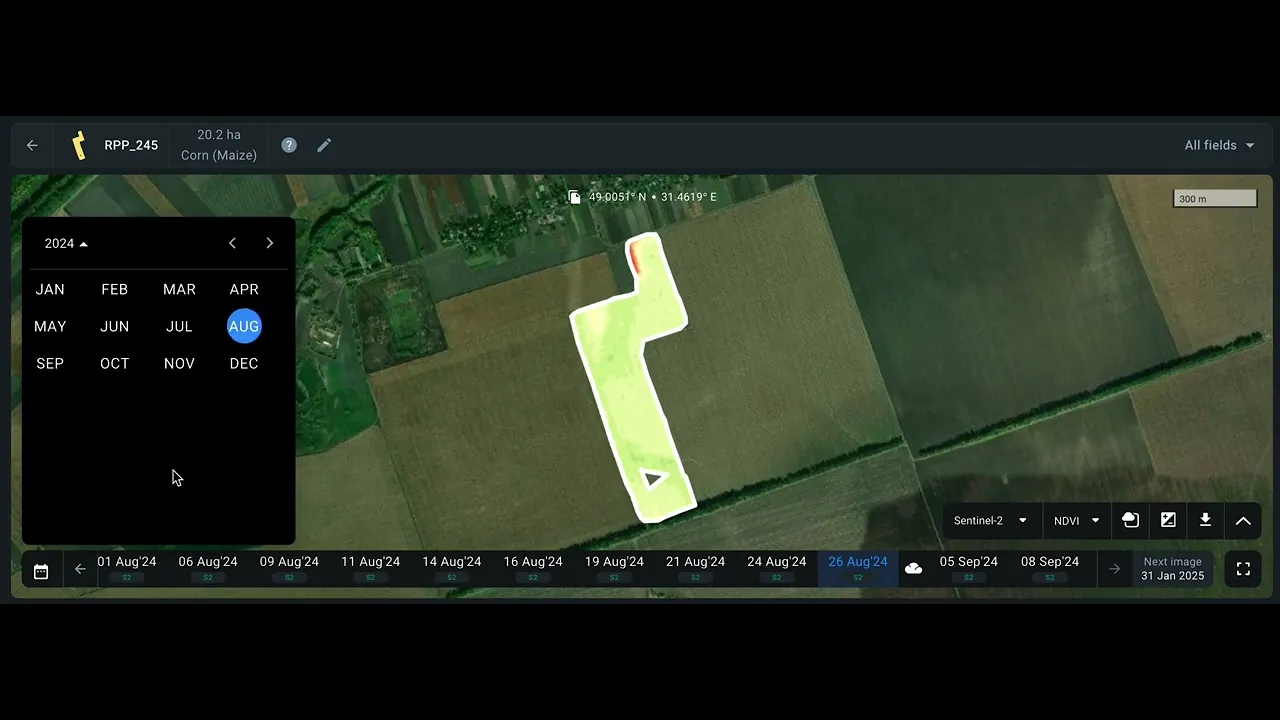

To select the necessary image date, you can also use the calendar, where the dates of available images are highlighted in white.
When you hover the cursor over any point within the field, the values of the selected indices for this point will be displayed on the map synchronously on both screens. This allows you to compare the index values for the same point within the field but for different dates.
For example, to see how the vegetation has been developing on your field, select NDVI for both viewers and switch between dates in the timeline. This way you can identify areas of the field with the most or least uniform vegetation and identify areas that require your attention the most.
Note: The historical data on vegetation index values goes back 5 years.
In the same way, you can track how the state of the vegetation on the field has been changing, based on the values of other available indices, including NDMI moisture index. With the help of this index, you can identify the threat of water stress and effectively plan out irrigation.
You can also select and compare different indices in each viewer. It’s helpful for more complex field analysis since to see a complete picture of your crop’s health, one index may not be enough. For example, at the early stages of crop development, the presence of bare soil can affect the accuracy of NDVI. Therefore, it makes sense to compare NDVI with other vegetation indices for the same field and date.
By comparing different vegetation indices, you can visualize and analyze the current state of crops, given the crop type and the growth stage.
For example, here you see two different vegetation indices for the same field and for the same date.

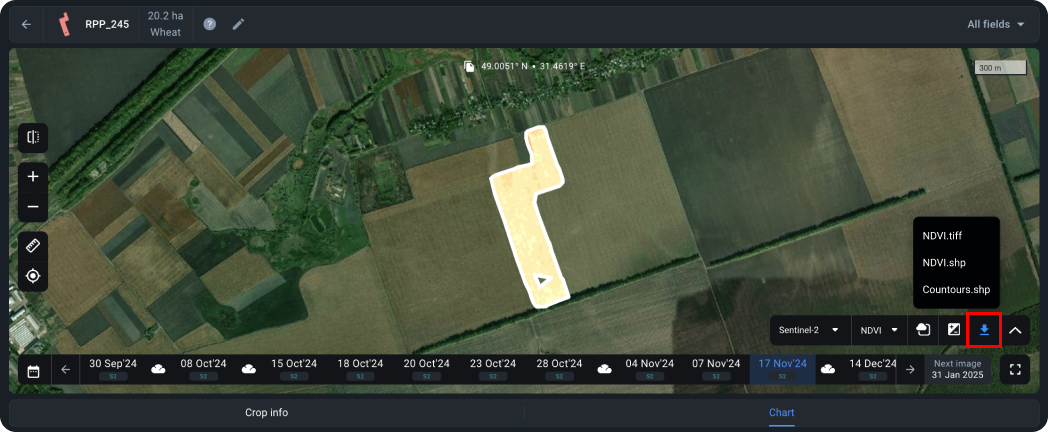

You can also download data by clicking on the download button next to the index name.
To return to single view mode, click on the corresponding icon on the left side menu.
The Layers feature allows you to visualize and analyze the state of crops in all of your fields at the same time. To do that, you simply need to switch between 5 parameters or Layers – My Crops, Vegetation, Water Stress, Vegetation Rating, and Crop Classification in a convenient drop-down menu.
The system only selects images with less than 90% cloudiness depicting all of your fields. Cloudy locations will be marked with the corresponding mask. To see your fields, you need to zoom in and go from the pins to the fields’ outlines.
You can also sort the data by crop and year using the filter in the right side menu. This will give you the opportunity to analyze the history of the development of a particular crop in all of your fields at once over 5 years in terms of the selected layer. The obtained data will help you identify problem fields and make reliable decisions, as well as effectively plan crop rotation and field activities.
The first layer on the Layers list is My Crops. When this layer is selected, the fields are displayed on the map classified by crops. This enables you to see an overall picture of crops distribution among your fields. Each crop is given a corresponding color, which is displayed in the legend in the lower right corner of the screen. By default, the map displays the most recently planted crops for all of the fields.
You can select the crop and the year by using a special filter.
Thanks to the visualization of crop rotation for the last 5 years on the screen, you can make better-informed planting decisions.
This layer shows the vegetation level in all of your fields at the same time, based on the NDVI vegetation index values. For each field, the system displays the average index value and highlights it with a specific color. Each color corresponds to one of the 10 specific ranges of values displayed in the legend in the lower right corner of the screen. Seeing these NDVI ranges on the screen allows you to comprehensively analyze the state of vegetation in all your fields at the same time, identify problem fields or a group of fields, and, overall, effectively plan actions for further monitoring.
If you want to analyze a specific field or group of fields, click “Select group” using the filter in the right side menu.
When you select a field on the map, you automatically switch to the monitoring view of this field according to the NDVI index values for the date you have selected.
Note: You can also create a new field group based on the vegetation data for different fields.
Vegetation data by default is displayed based on the last available field image.
Note: Available images are the images that have all of your fields at once. Cloudy locations will be marked with a corresponding mask.
To view any previous image, select the date in the timeline at the bottom of the screen.
Note: Pictures taken over a year ago are available to Pro users only.
Note: If a field or group of fields has exceeded the field acreage limit of your subscription plan, these fields will be marked with a Pro icon.
While in the Vegetation layer, you can also use a special filter to select the crop and the year. This will allow you to analyze the fields both in terms of a specific crop and vegetation at the same time. This data will help you discover the relationship between the vegetation in the field and the crop it is planted with. This will enable you to make reliable decisions about field activities.
The Water Stress layer displays the moisture level in plants in all of your fields based on the NDMI values. For each field, the system displays the average value of the index and highlights it with a specific color. Each color corresponds to one of the 10 specific ranges of values displayed in the legend in the lower right corner of the screen. This makes it possible to analyze the moisture level for all of your fields at the same time, identify problem areas – lack or excess of moisture – and effectively plan irrigation in the future.
Use the filter on the right side menu to view moisture levels for a specific field, crop, and year.
When you select a field on the map, you automatically switch to the monitoring view of this field according to the NDMI index values for the date you have selected.
Moisture level data is displayed by default based on the last available field image.
Note: Available images are the images that have all of your fields at once. Cloudy locations will be marked with a corresponding mask.
Note: The Water Stress layer is available to Pro users only.
The Fields Rating layer is analogous to Field Leaderboard. This layer displays all of your fields according to the average value of the NDVI index. This allows you to visualize the productivity data from all of your fields on one screen.
The data for average NDVI values is displayed by default based on the most recent field image available.
Note: Available images are the images that have all of your fields at once. Cloudy locations will be marked with a corresponding mask.
You can also select field, crop and year by selecting the necessary options from the right side menu.
Note: The Vegetation Rating layer is available to Pro users only.
The Crop Classification layer is only available in Ukraine and displays the location of all the crops for the whole country, according to the classification map created by EOSDA. The list of available crops is displayed in the lower right corner of the screen, instead of the vegetation index legend.
Note: In the Crop Classification layer, you can filter out the fields only by season.
You can also add any field that appears on the map in this layer to your Field List. To do so, select the necessary field on the map and click on it.
Click Add Field to add the field to the system.
Note: Crop Classification layer is available to Pro users only.
Switch between Standard and Contrast views of the field on the map by clicking on the corresponding icon in the lower right corner of the map.
When the Contrast view is activated, the icon appears blue.
Standard view is best applied when the values of a given index vary greatly across the field, covering almost a full standard value range. For NDVI*, it is -1 to 1. On the map, you will see smooth transitions of different shades of red, yellow, and green**, without much contrast, if any at all.
*Standard range can vary depending on the index.
**NDMI is represented by different shades of blue.
Contrast view, on the other hand, solves the issue of visualizing low variability of the index values in the field when there is a need to highlight the differences.
Each shade in the palette on the map corresponds to the available index value. In Standard view, low variability of the index values will be displayed as a collection of several similar shades. To better highlight the differences, and detect the problem areas in the field, you need to enable the Contrast view. In this case, instead of a collection of shades blending with one another on the map, you will see distinctly different colors, revealing previously unnoticed issues with crops.
Contrast view is applicable to all the indices available in our product, including the NDMI moisture index.
The Seasonality feature helps you to ensure that all of the parameters related to a specific season on our platform will match your hard farm data exactly. The duration of a season depends on various factors such as crop cultivation specifics, crop characteristics, climatic conditions, and others. To activate Seasonality on the platform, you need to create a new season and precisely align its duration with your farming activities schedule – by selecting appropriate start/end dates. To manage and plan all of your farm activities for this newly created season in one place, you need to make a few more steps:
All data and analytics on the platform will display within the timeframe of the selected season as specified by its start/end dates. After the season ends, new field imagery will not be displayed in the timeline as this is associated with the end of the harvest campaign and the absence of crops in the fields.
Note: To get access to the most relevant satellite imagery and analytics on the platform within a new agricultural season, you need to create a new season and either add new fields to it or transfer already added fields from one of the completed seasons.
To create a season, you need to select the “Seasons” section in the side menu.
You’ll see a list of all seasons in your account. At the top of the list, there’s a “+ Create season” button.
Upon clicking this button, a window for entering season parameters will appear:
After clicking the “Create season” button, the new season will be displayed in the overall list of seasons, containing only the fields you’ve selected.
To edit a season, go to the list of seasons and click the “Edit” button next to the season you want to modify.
Within a season, you can edit the following parameters:
Please note that when adjusting the duration of the season, the sowing and harvesting dates in the fields that extend beyond the modified season duration will also be readjusted automatically to match the start and end dates of the season. These changes are necessary for accurate analytics within the season, as crops cannot be sown before the start date of the agricultural season.
Please note that currently the platform does not allow you to add fields without assigning them to a specific season. Every field always belongs to at least one season. Therefore, a field that only belongs to one season cannot be removed from that season.
To delete a season, navigate to the list of seasons and click the “Delete” button next to the season you wish to remove.
The system will automatically keep at least one season on the platform. For example, if you have 5 seasons, you can delete any 4 of 5.
When you delete a season, all its data will be removed. Fields, however, are not deleted from the account; they are only removed from the deleted season. If one or more fields are only associated with one season and that season is deleted, you will be prompted to choose which season of the account to transfer the field(s) to after the deletion of the season.
Note: On registering a new account, the system will automatically create one default season matching it with the current calendar season. You can edit this season, but cannot remove it from the account.
In order to access satellite images of your fields, get the weather forecast and other data, you need to add fields to your account first. There are several available options:

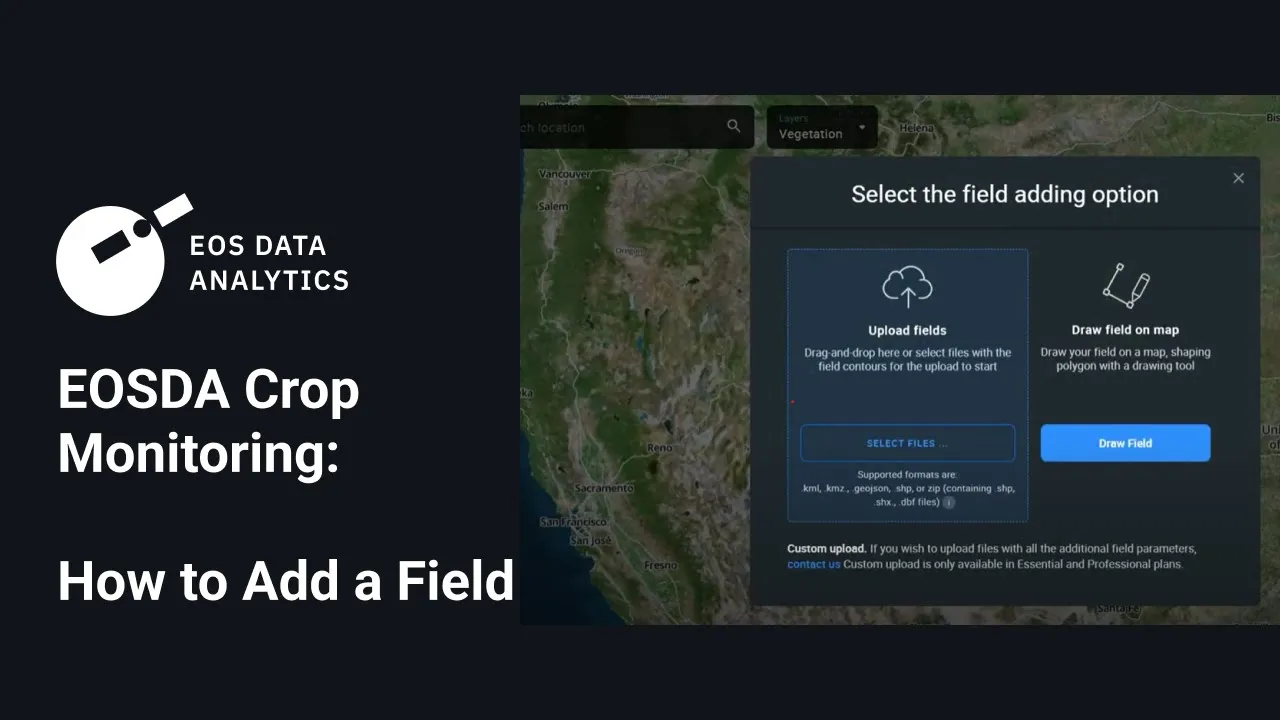

Start by clicking +ADD FIELD located in the right bottom corner of your screen.
A window with available options should pop up.
This option allows you to upload files containing pre-drawn field contours to the system. Currently, EOSDA Crop Monitoring supports 4 different format types: .shp, .kml, .kmz, .geojson.
You can either drag-and-drop files onto the web page or click Add your fields.
As soon as the field contours appear on the map along with the field card data in the right sidebar menu, click ADD TO MY FIELDS to complete the operation.
Or you can click Cancel (located just below the ADD TO MY FIELDS button) to abort.
A modal window will offer you two choices:
Add more information about the newly uploaded field to ensure maximum efficiency of monitoring.
*Accurate monitoring of vegetation development depends on the correctness of crop rotation data.
Files are uploaded through the standard process by clicking the “+ADD FIELD” button.
In case you upload .zip (.shp, .dbf, .prj, .shx), .kml, .kmz, or .geojson files that contain field parameters such as crop type, field name, group, sowing date, harvest date, notes, and season, a Fields upload manager window will open.
Here you will see the parameters of the fields present in the uploaded file. The system will automatically classify each parameter into a different column. Use a drop-down menu on top of every column to select the correct parameter for each data type. Here you can also select the “Skip” option for those parameters you don’t want to be visible on the platform.

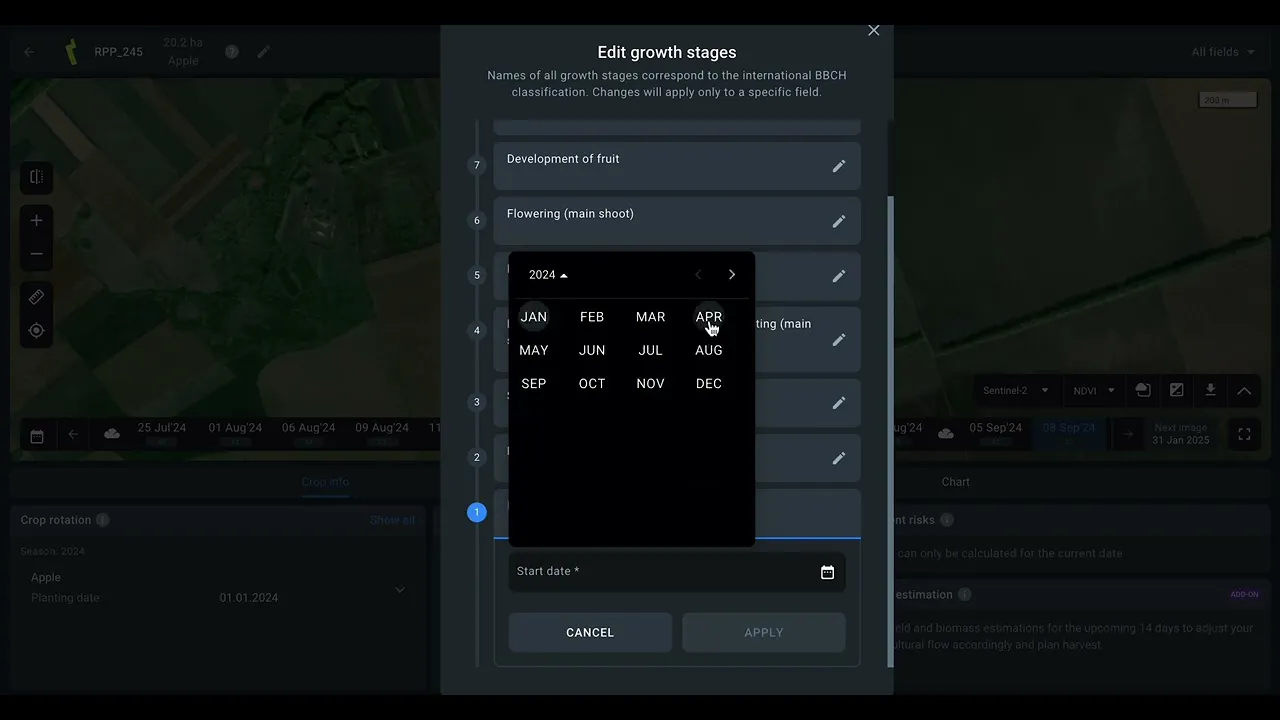

When configuring parameters such as “Sowing date” and “Harvesting date,” it’s crucial to select the date format used in the file to ensure error-free data processing.
Notice: The selection of the sowing date is only enabled after the crop has been selected, and the selection of the harvesting date is only enabled after the sowing date has been specified.
Sowing date
Harvesting date
After selecting the parameters, you must ensure that the seasons, crops, and groups from the file match the corresponding seasons, crops, and groups on the platform.
For example, in the file, some fields may be associated with the 2023 season, while others may not have a specified season. In this case, the system will generate two season data options: “No data” and “2023” season. You can assign any seasons available in your account to these data options, and all fields will be loaded accordingly.

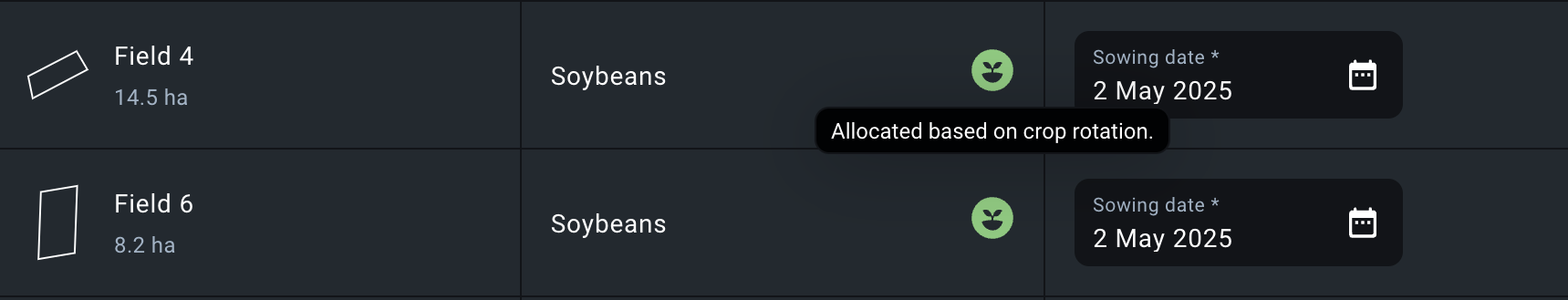

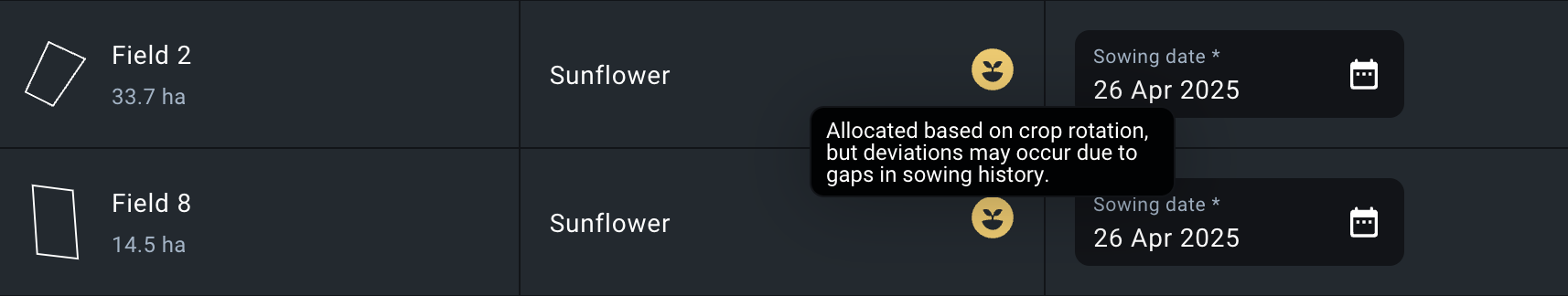

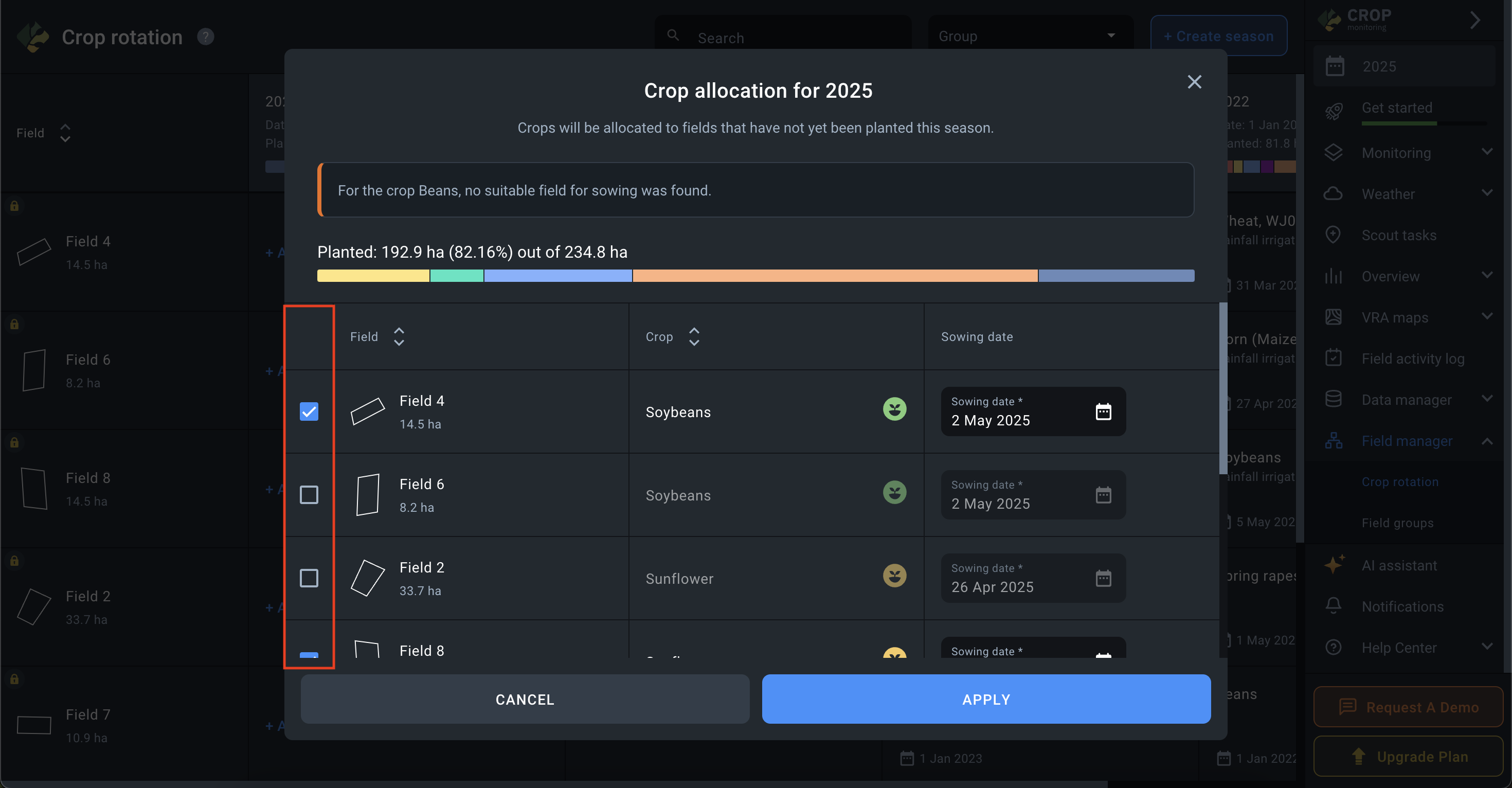

The same logic applies to crops and groups. You can assign crops and groups from a file to existing crops and groups in your account, ensuring that parameters are linked to fields and loaded with the specified attributes.
When specifying groups, you have the option to select an existing group from the list in your account or create a new one. To create a new group, simply enter the name of the group and click “add new group.”
Once all steps are finalized, you will see a map and your field list for the final data verification. If everything appears satisfactory, click “ADD TO MY FIELDS” button, and the fields will be saved with the set parameters in your account, within the seasons you selected during the upload process.
The file cannot be uploaded because EOSDA Crop Monitoring cannot determine the coordinates for the fields in the file.
The .shp file requires a .prj file which contains the source product’s coordinate system type.
Check the file format, you may be uploading an invalid format or there is an invalid file in the .zip archive
Overview of file formats that can be uploaded in the system:
This error occurs when the file you’re trying to upload is not a polygon shape but alabel, a point, a photo, a line, a road or some other unsupported element.
On EOSDA Crop Monitoring, you can only upload the files containing a polygon shape, i.e. an object in which there are at least three connected coordinate points all connected to each other.
The error occurs when the file that’s being uploaded exceeds 10 Mb. You can solve the problem by archiving the file in .zip, if it is a shape file. If .zip, .kml or .geojson files exceed 10 Mb,, – the most likely explanation is that there are too many objects (fields) contained within the file, and it is better to re-save these fields from your source by distributing them among 2 or more files.
This error tells you that the contours of some of the fields contained within the file overlap (intersect or cross each other), which does not allow for polygons to be correctly created on EOSDA Crop Monitoring. You need to review your fields and their contours at the source from which you are exporting them.
The error occurs when the area of the field whose contours you are trying to upload as a polygon shape is larger than 10,000 hectares or 24,710 acres. You need to edit the contours of the polygon at the source or draw the contours manually on EOSDA Crop Monitoring.

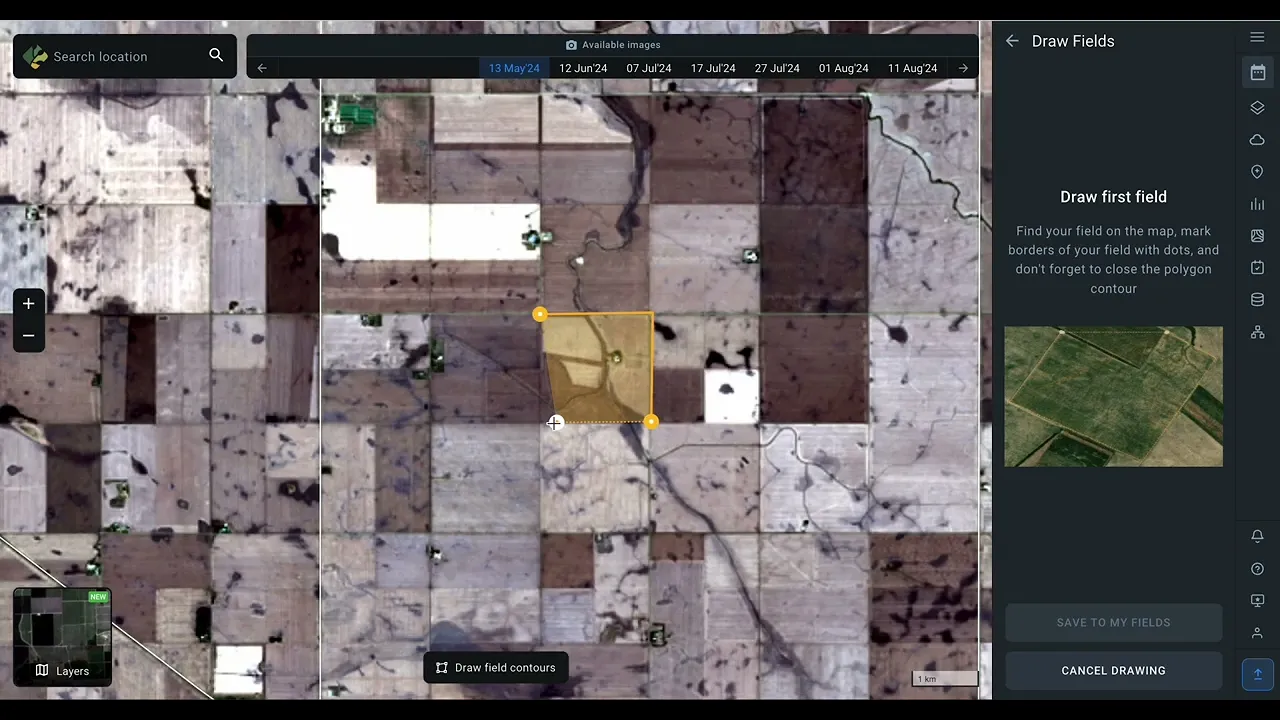

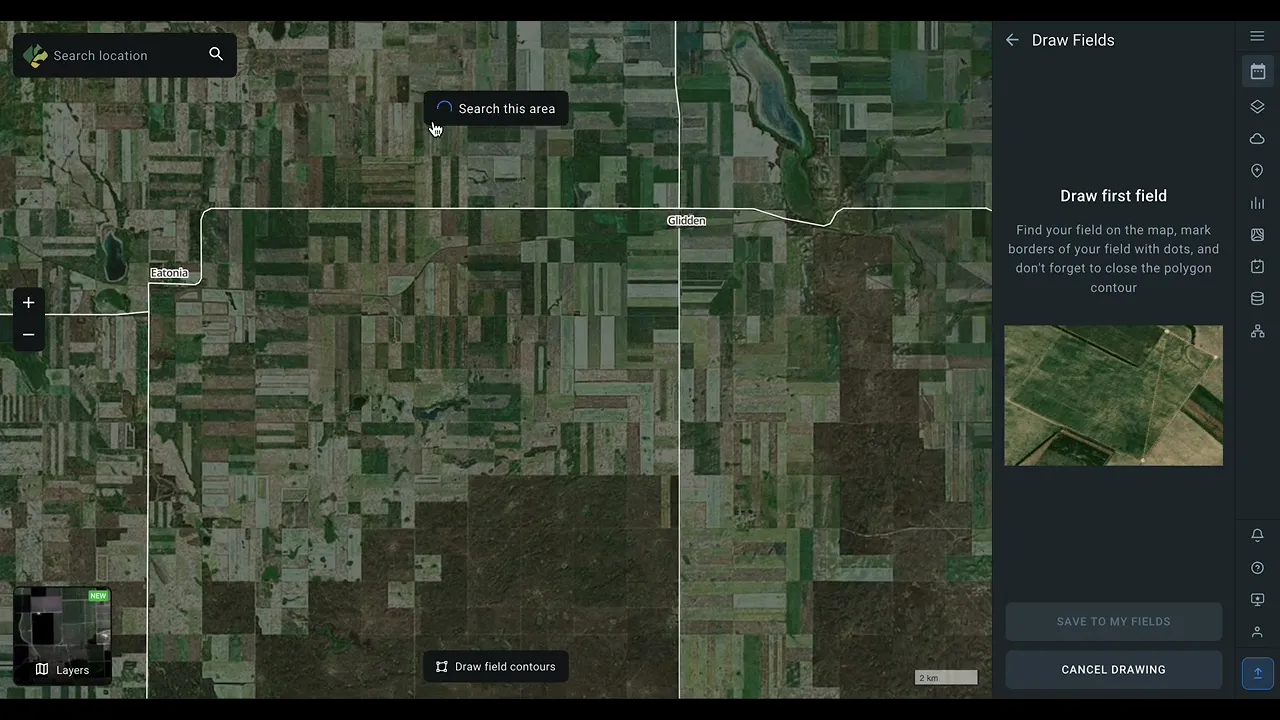

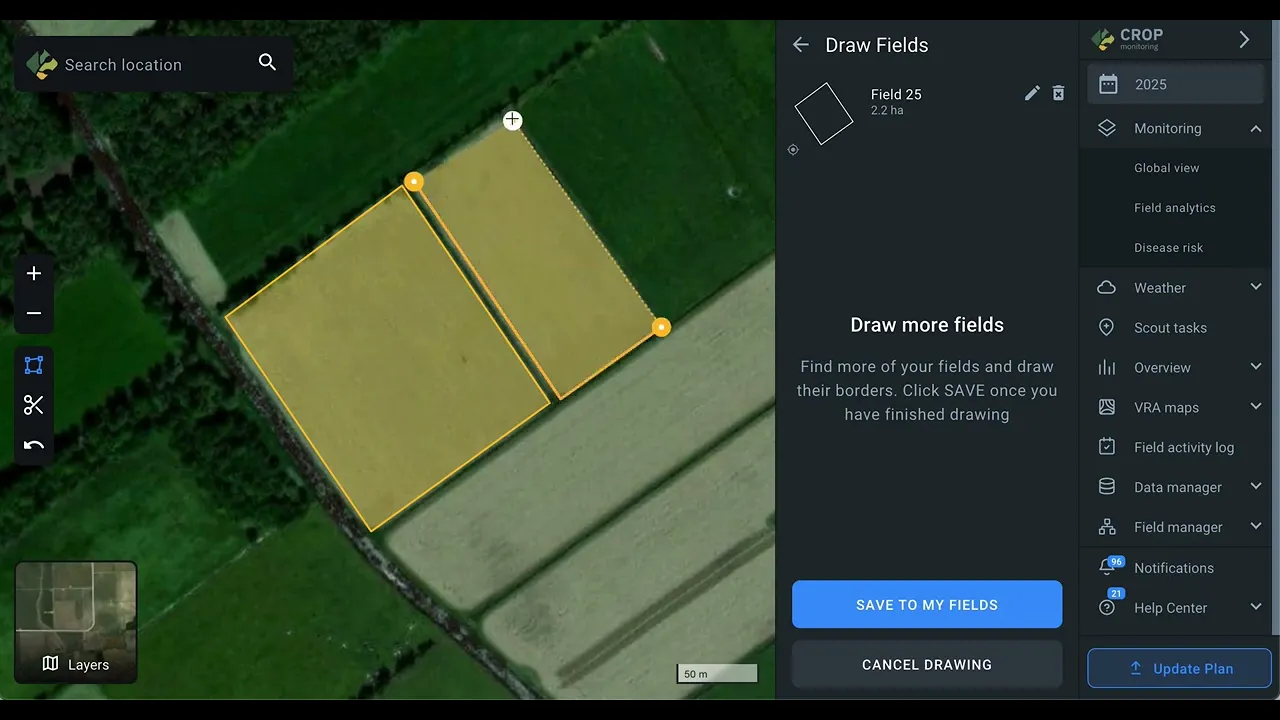

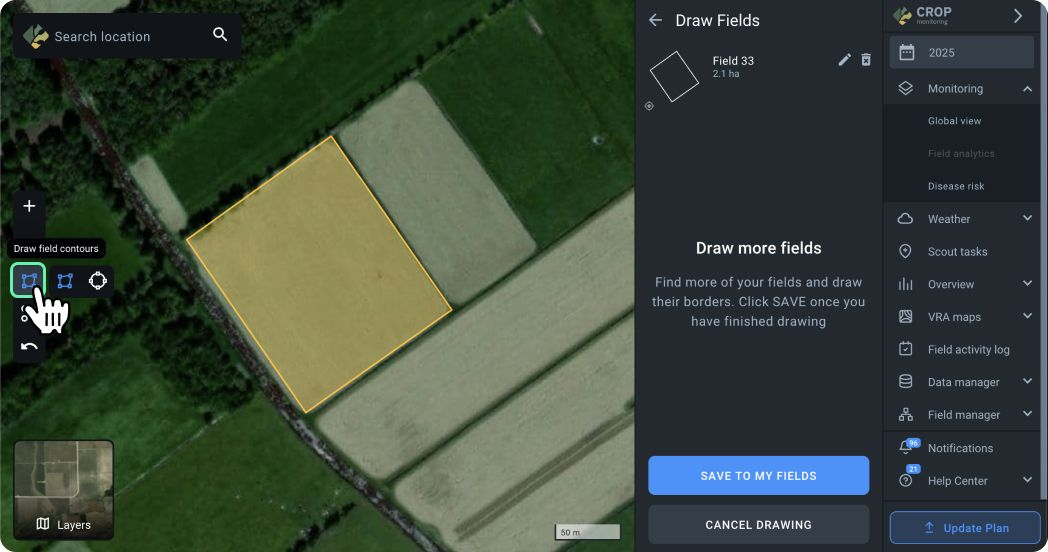

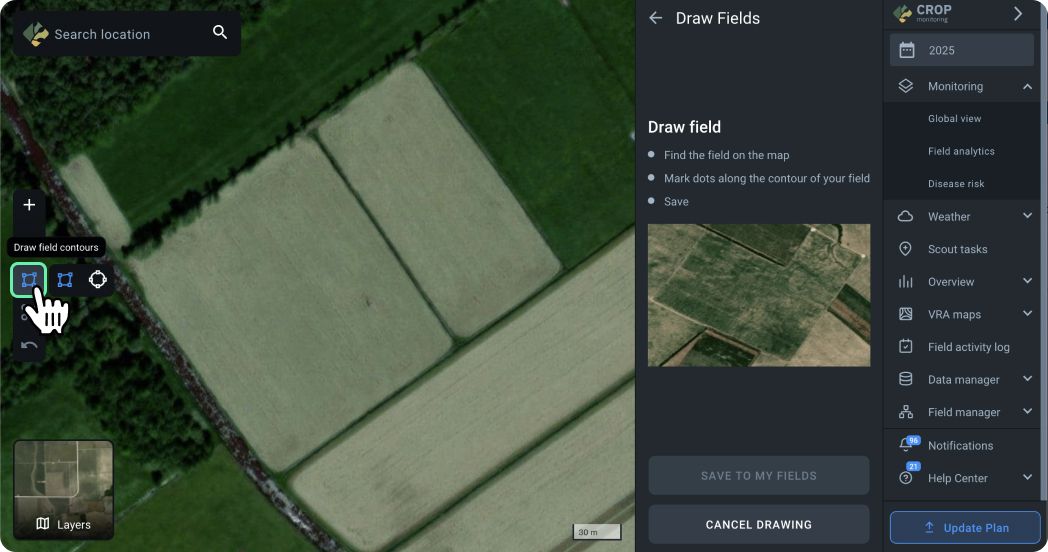

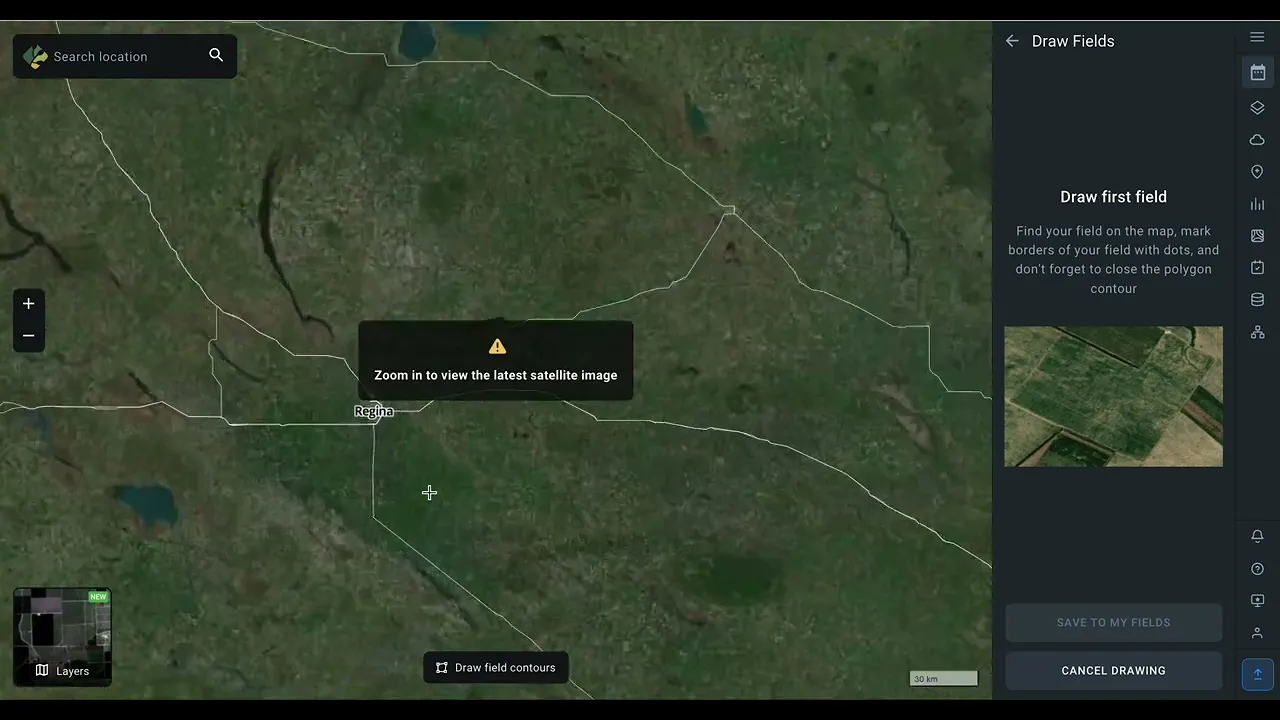

When you navigate to the field drawing page, the boundary drawing tool is active by default.

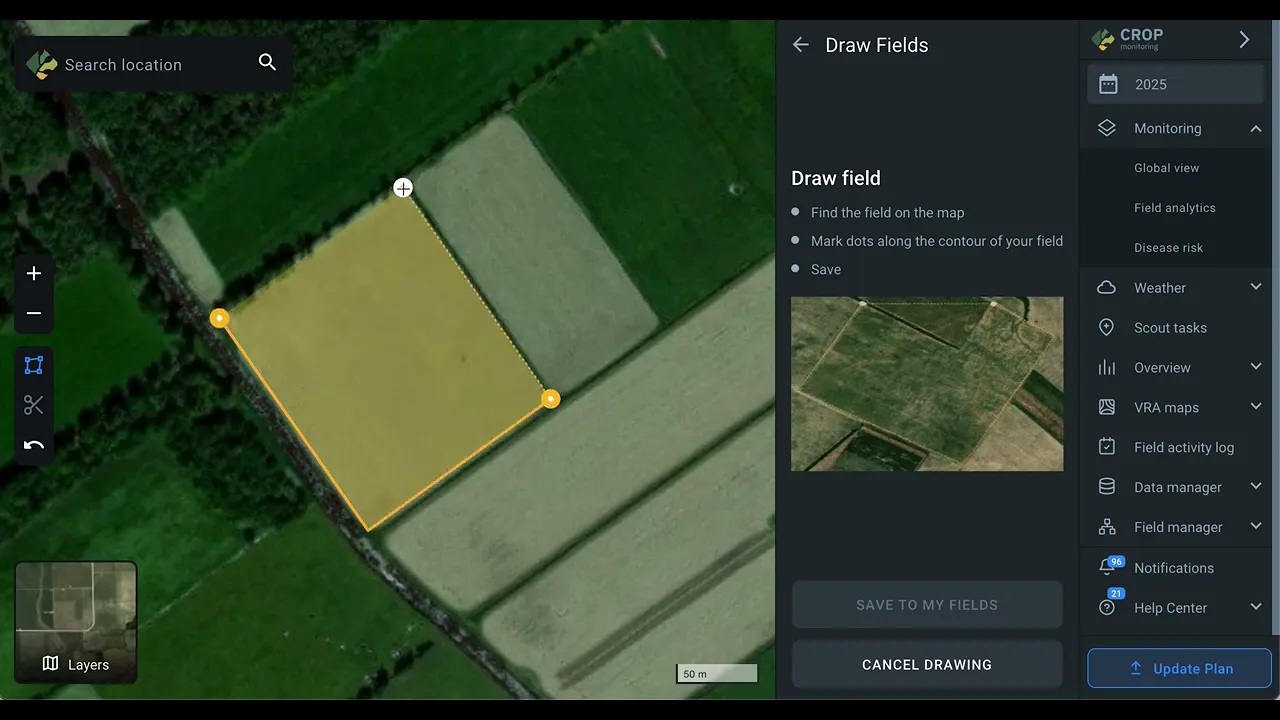

You can start drawing a field boundary by placing the first point on the map.
To finish drawing the boundary, close it by double-clicking on the first point.
To complete the drawing, the boundary must have at least three points.
Once the boundary is complete, you can save the field and proceed to the analytics section to access vegetation indices and other data.
This way, you can add multiple fields at once to obtain data for analysis.
Once you finish drawing all the required boundaries, don’t forget to save them to your field list for further work with those fields.

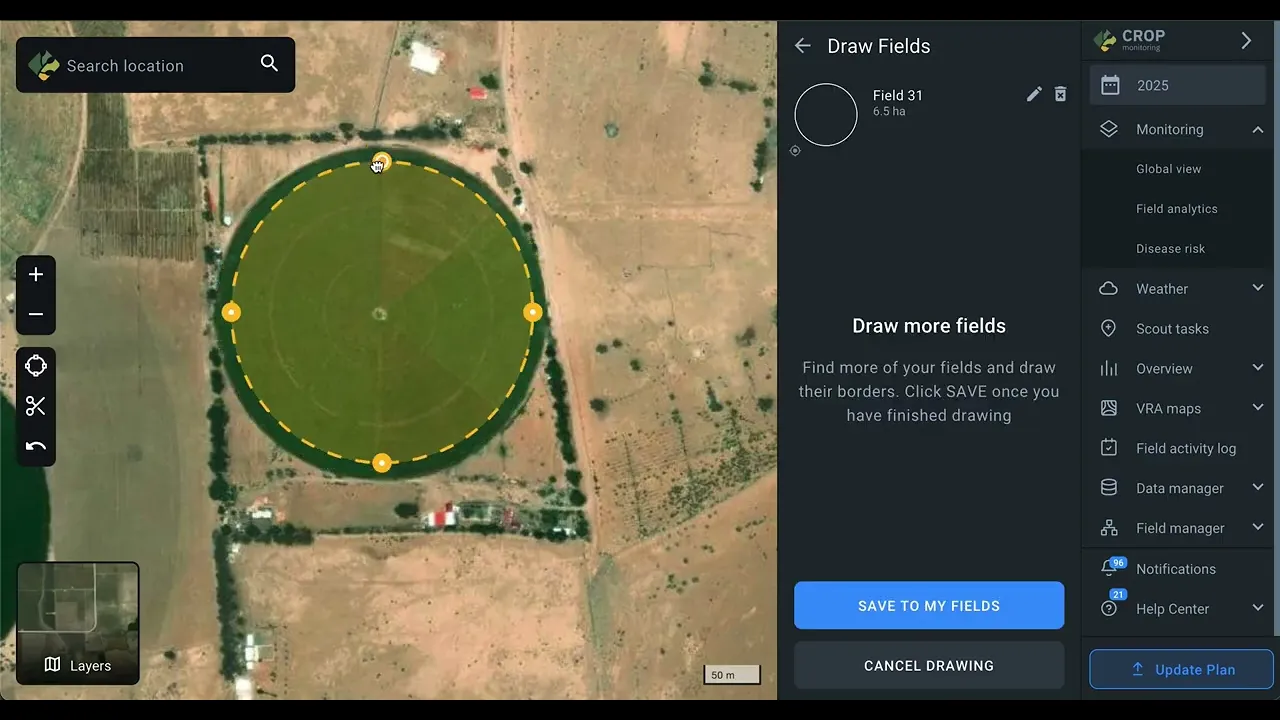

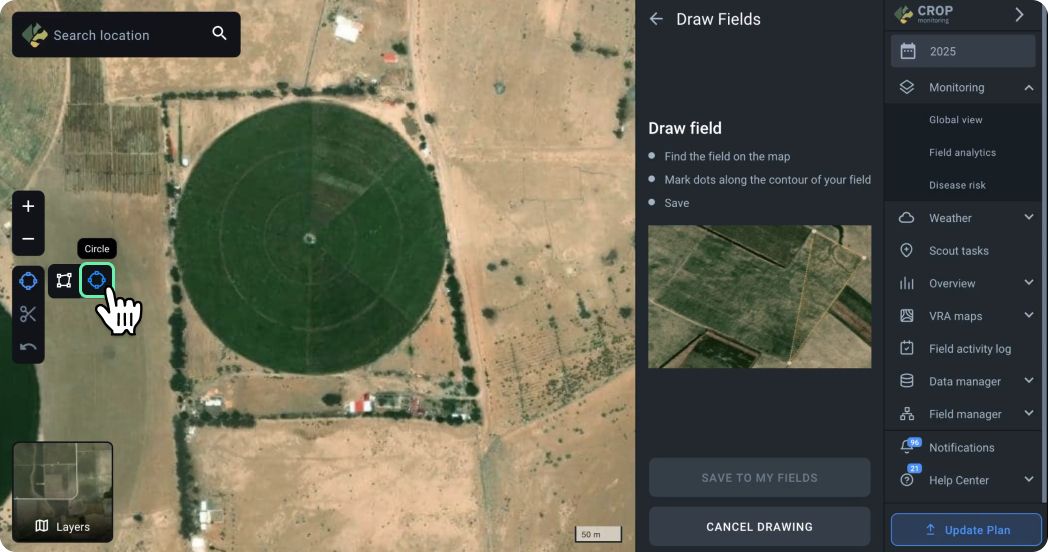

Use the “Circle” tool to add a circular field boundary.
To create a circular boundary, place a point at the center of your field and stretch the circle to the desired size.
You can adjust the boundary size by dragging one of the four points.

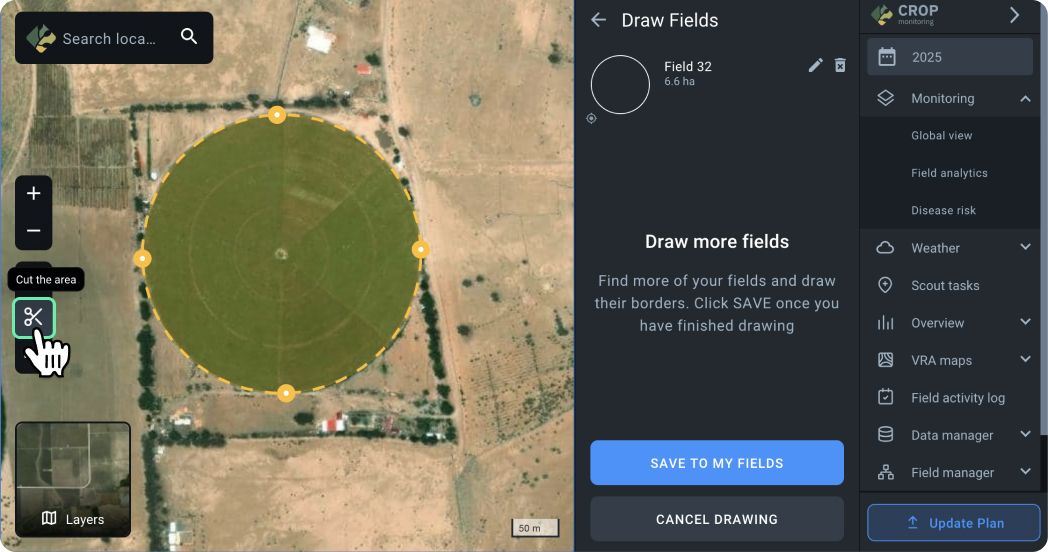

Using the cutting tool, you can remove unnecessary areas from your field boundary, such as buildings, ravines, roads, or zones not currently used for planting.
This will help you obtain more accurate vegetation data for your field.
To cut a part of the boundary, activate the cutting tool by clicking the appropriate icon.
Next, draw the contour you want to cut by placing the first point and subsequent points, closing the contour.
Once the contour is closed, it will be cut from your field, and the field area will be recalculated.
Sometimes the default map used in EOSDA Crop Monitoring may not reflect the current state of your fields.
If the field view differs from the actual situation on the ground, you can use the “Latest Image” layer, which allows you to see the most recent available satellite images for this area, which are weeks old, not years.
You can also choose other images to display if they are available for this area.
Select any other available image by clicking on the image date if the previous image did not suit you.
If there are no available images for the viewed area, you can move the visible area of the map to another location and search for images, or switch back to the default map.
Utilize the field right sidebar menu section to track, review or change activities related to your field with the features designed in EOSDA Crop Monitoring which are Edit field, Crop rotation, Weather today, and Scouting tasks.
You can edit your fields whenever you need by going to a three dots menu, then Edit on your Field List.
Or Edit on the right of the field card.

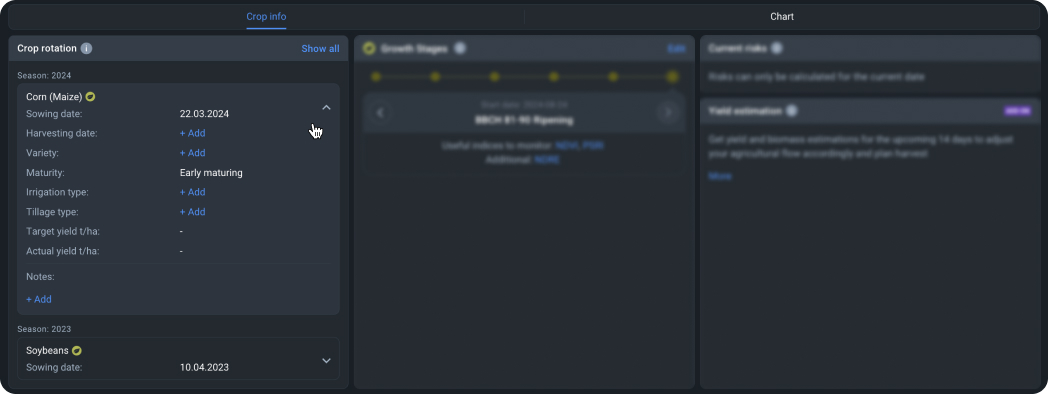

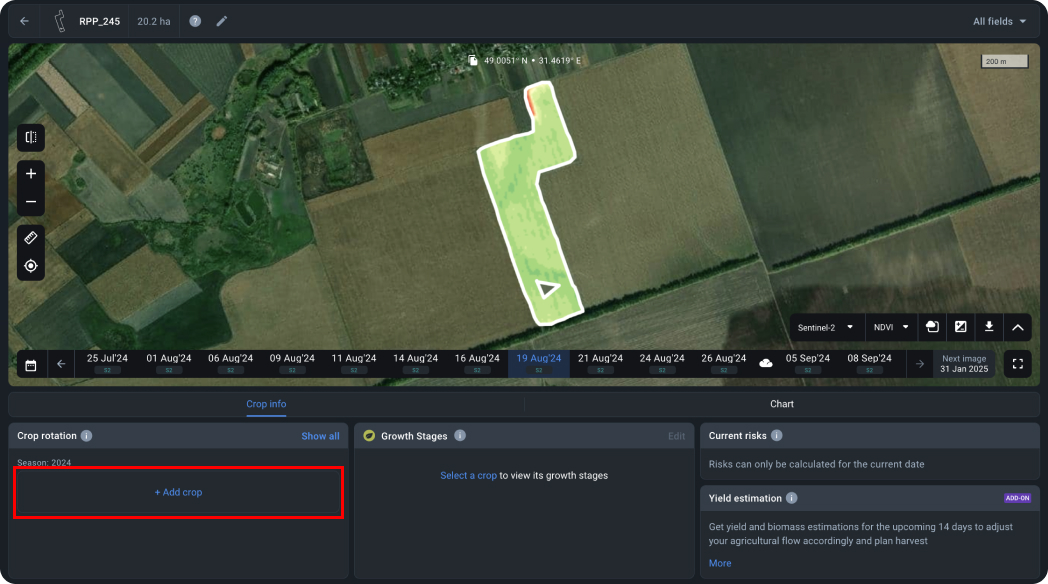

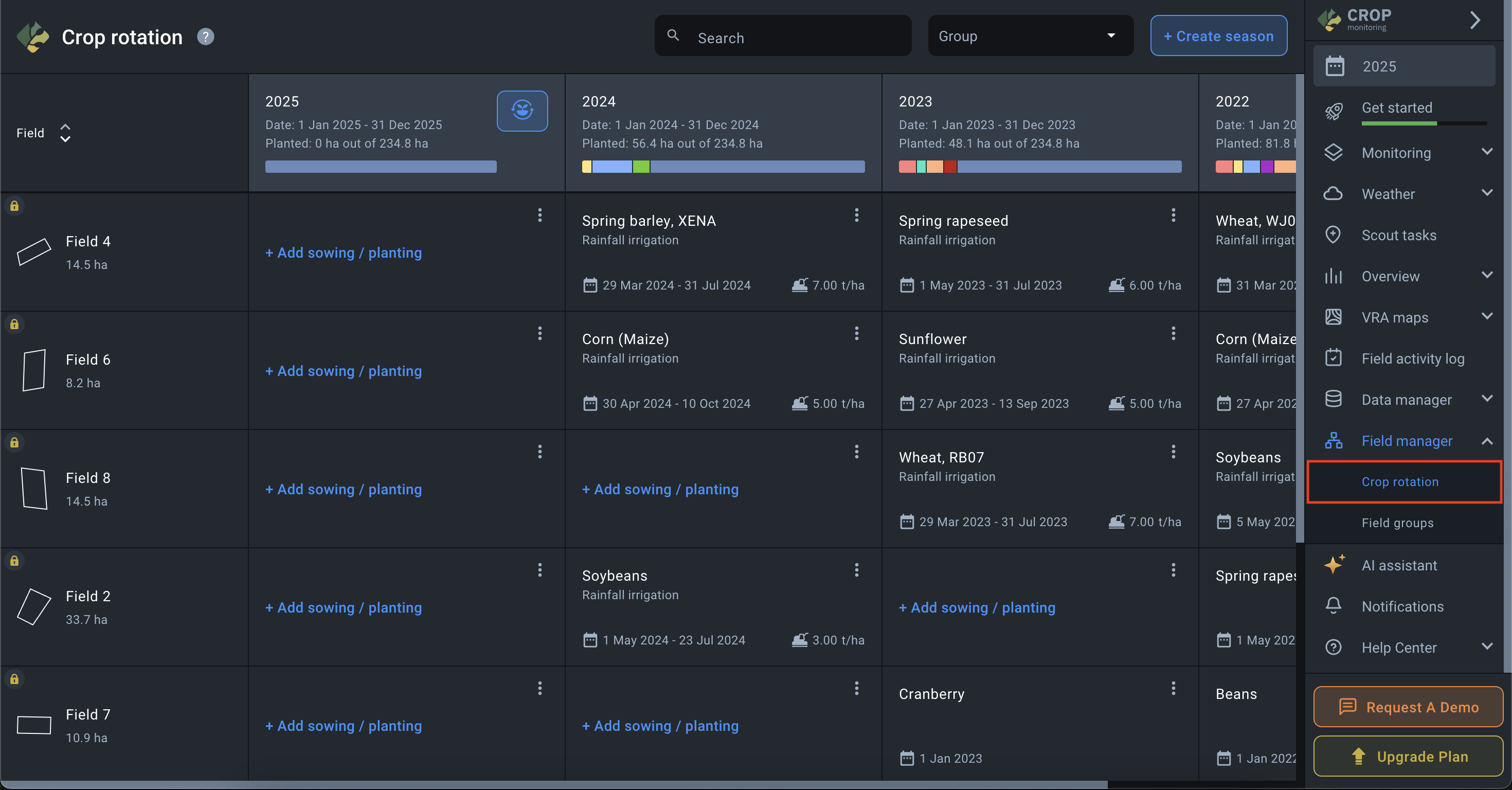

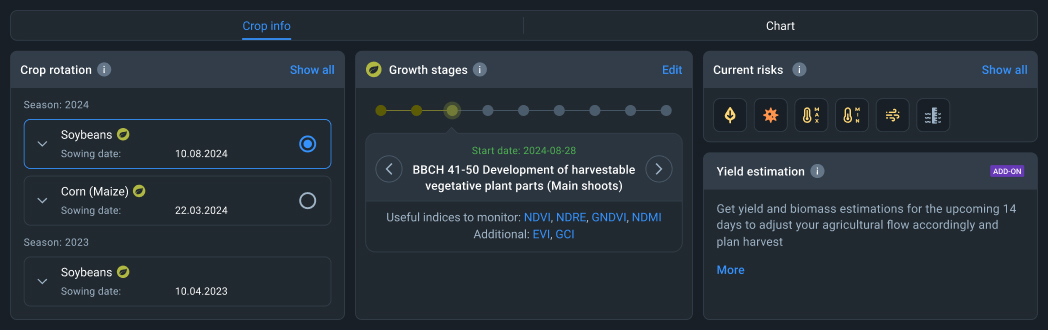

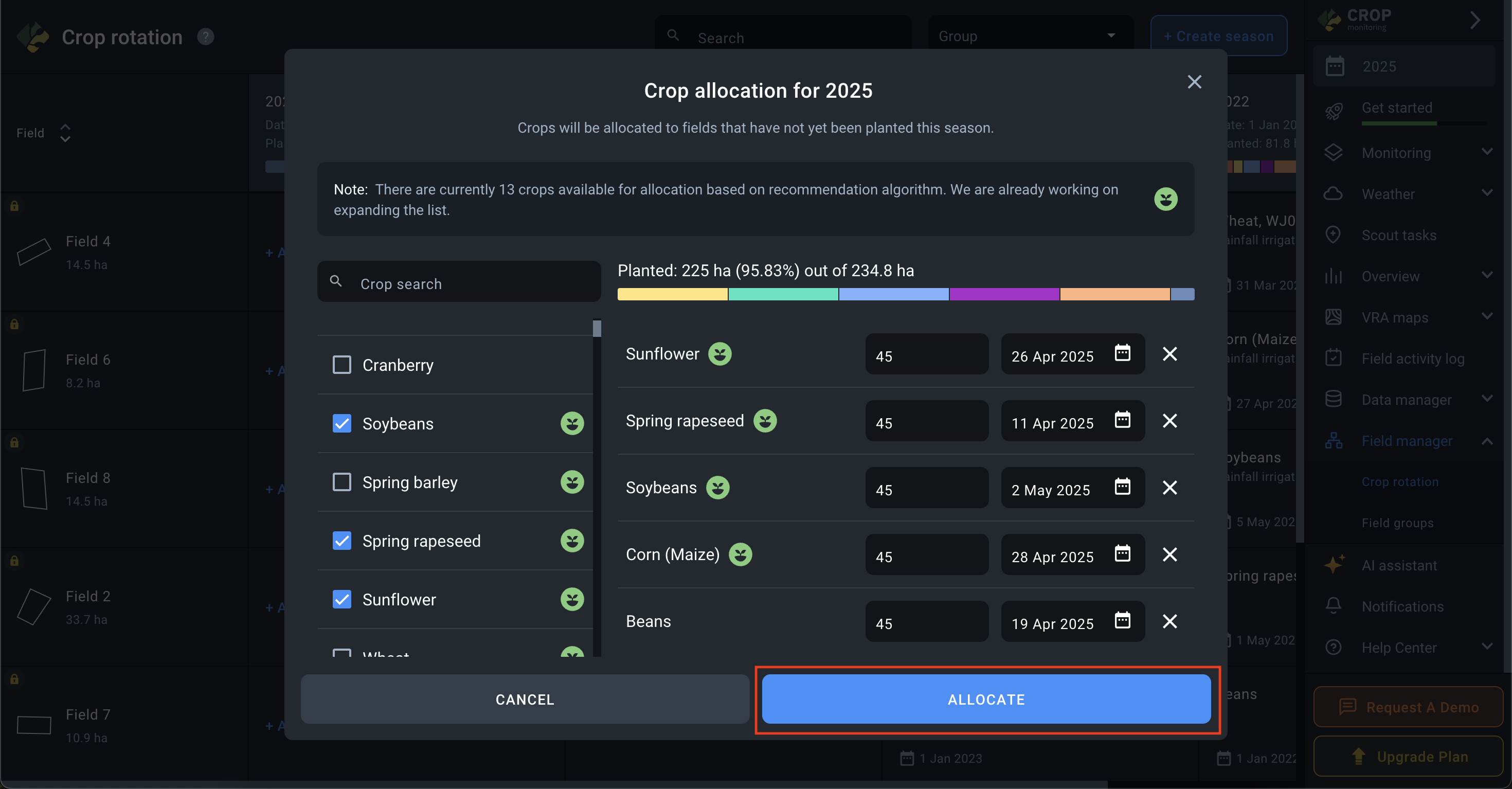

Crop rotation data displays historical crop types that used to grow on the field as well as the current growing crop type. This information is extremely useful. For instance, sugar beet planted on the same field two years in a row can cause diseases of the crops that’ll grow there afterwards. Correct crop rotation data includes 3 components: name of the crop, sowing date, and the season when the crop was or is going to be harvested.
Note: It is necessary you click on the exact sowing date in the calendar box. Make sure the selected date looks blue in the calendar.

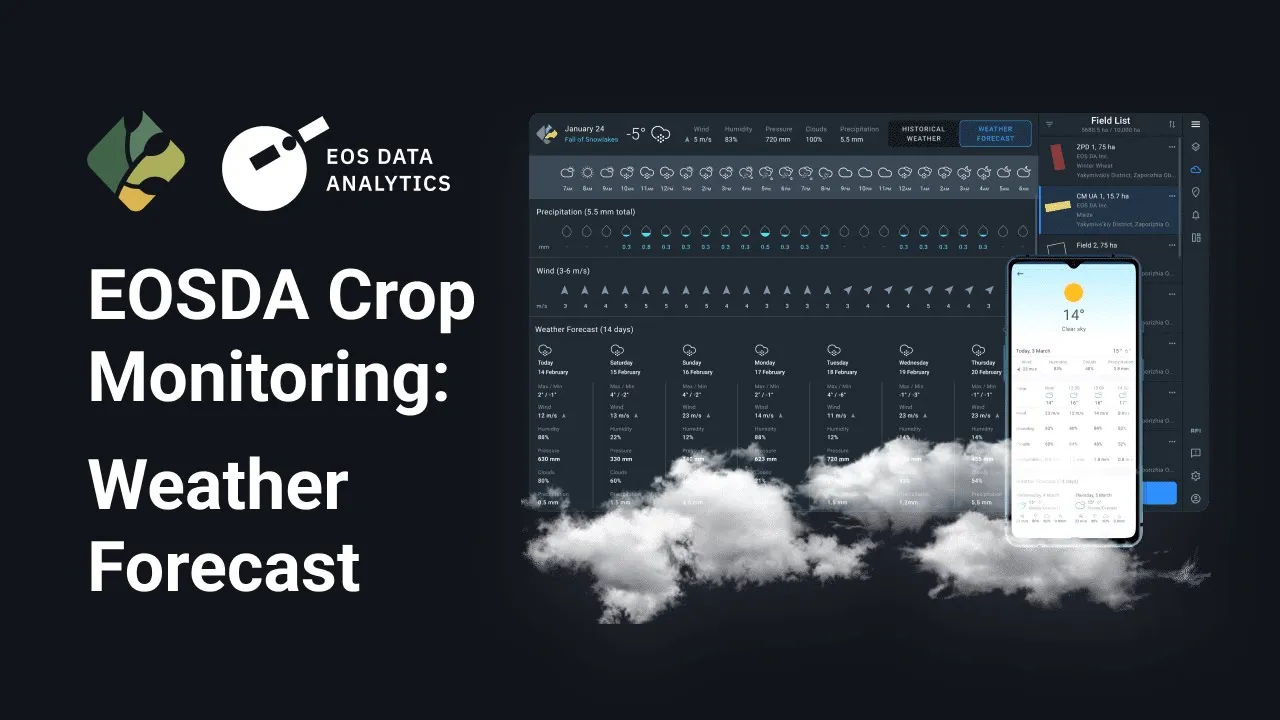

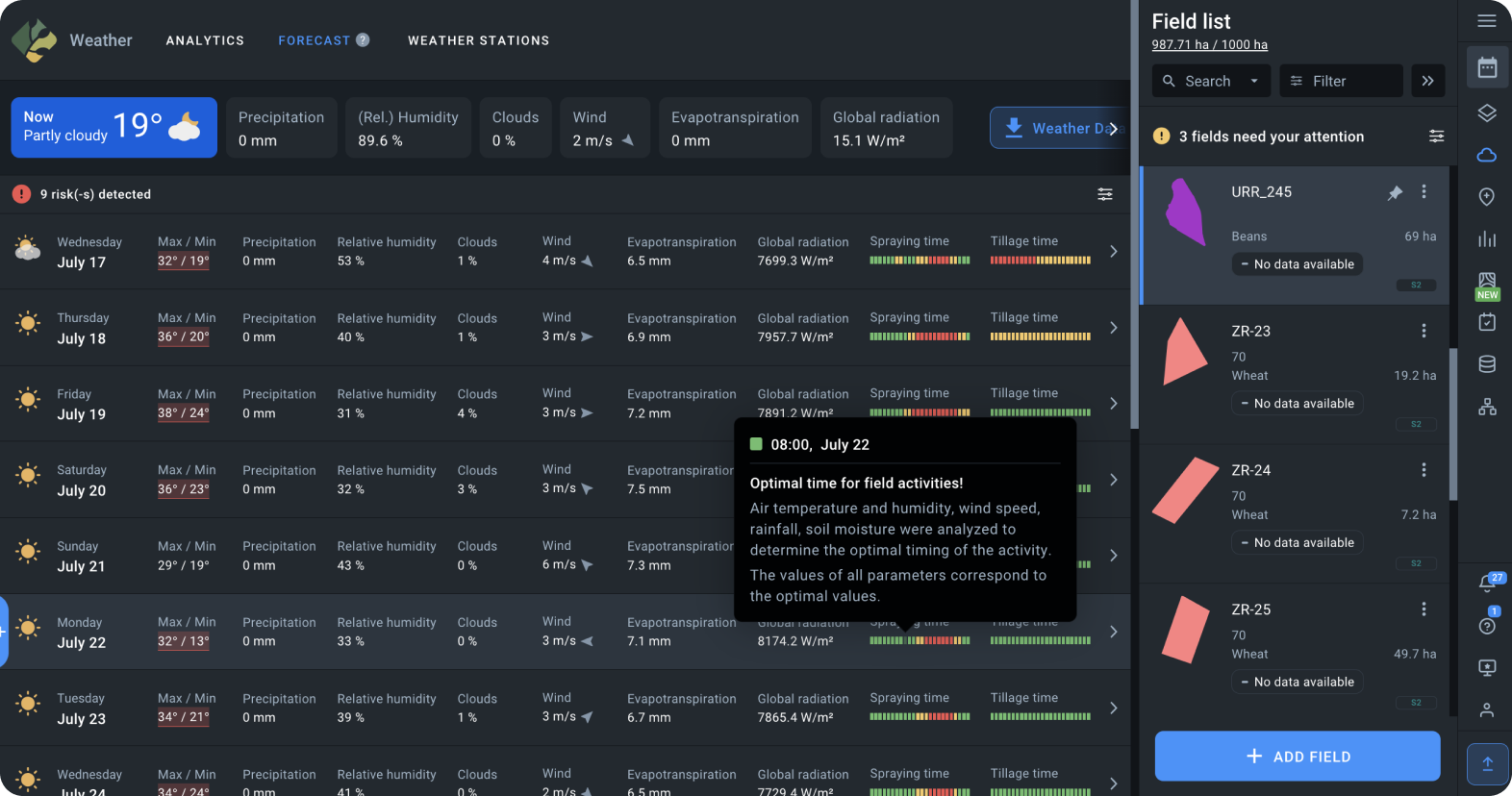

Log in every morning to follow the weather:
This will help you stay up-to-date and react to changes in a timely manner.
E.g. You’ve planned to apply fertilizer and it is going to rain.

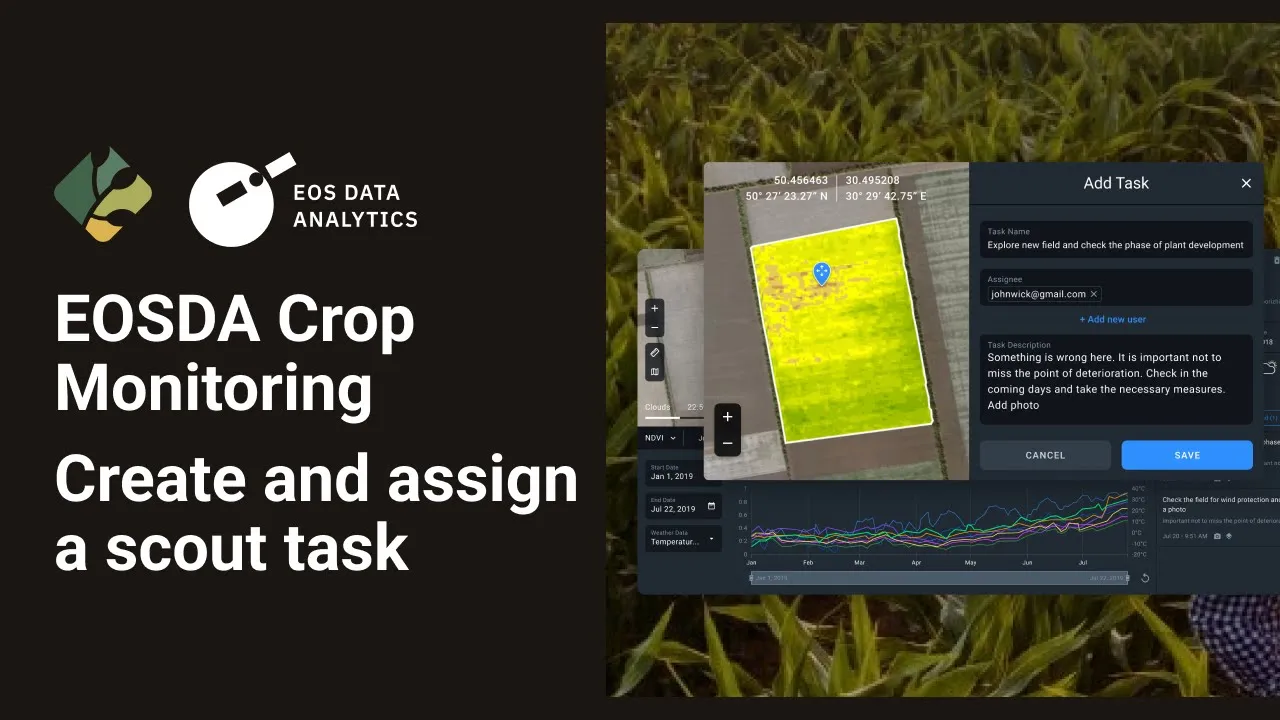

In order to send a scout to the field, you should create a scouting task. This task is automatically sent to the mobile application where a scout can pick it up for further execution. To perform the action, click the + ADD NEW TASK button at the bottom of the Task list or assign a task by selecting one of your fields.
Drop a pointer on the area you want to inspect and the New task window pops up. It contains the preview of your field with a pointer and field coordinates. Fill in the appropriate boxes with Task name, Description, and Assignee, and click SAVE. Once it’s done, the task immediately appears on your task list, as well as on the mobile application connected to your account.

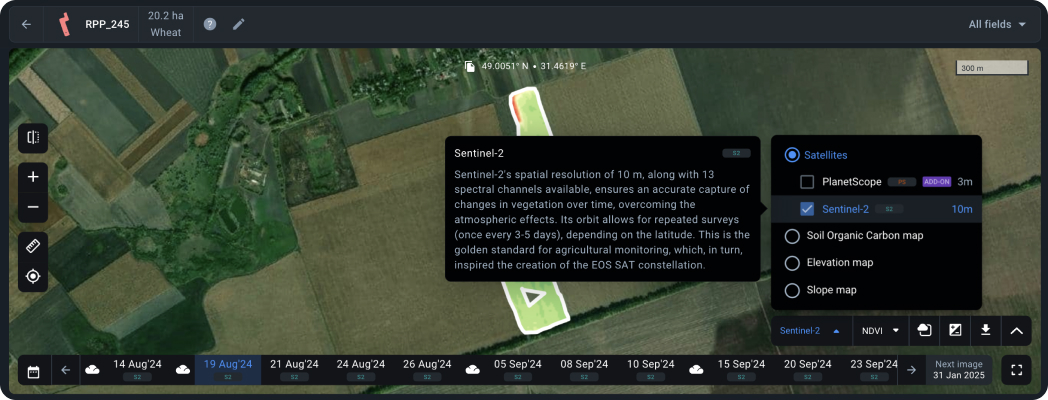

Currently we use Sentinel-2 sensor and satellite images with no more than 60% cloudiness. In this way, the collected statistics includes representative selection and excludes outside factors.

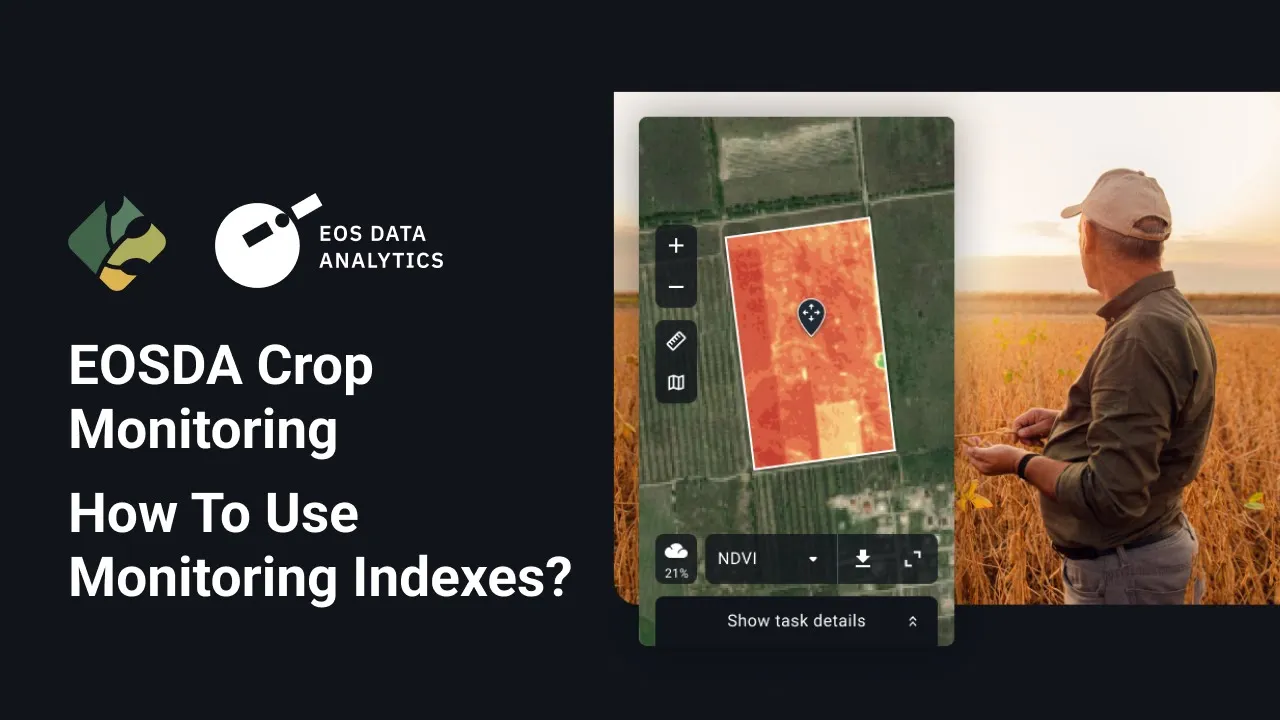

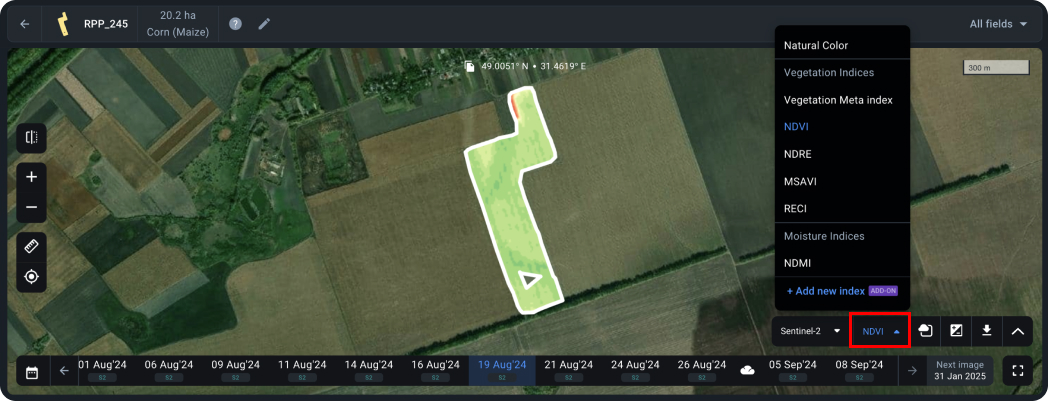

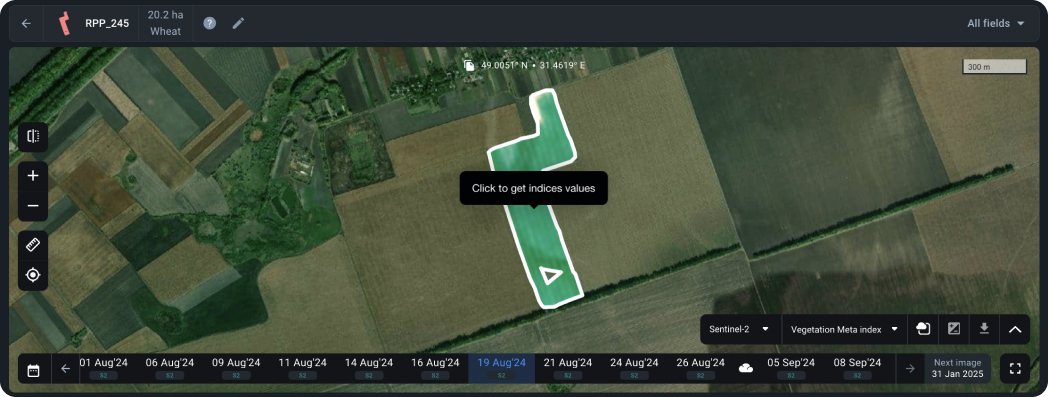

Below are the most commonly used vegetation indices that are presented in EOSDA Crop Monitoring:

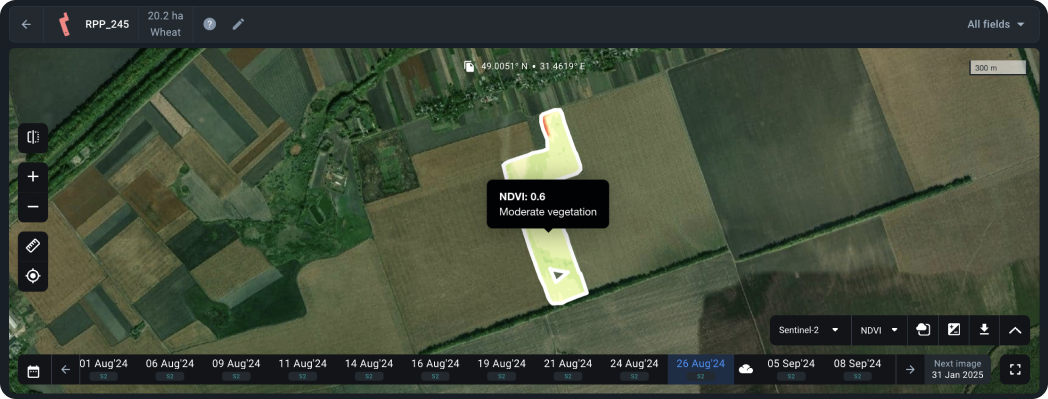

NDVI or Normalized Difference Vegetation Index
NDVI is calculated according to the way a plant reflects and absorbs solar radiation at different wavelengths. The index allows for identification of problem areas of the field at different stages of plant growth for timely response. Pay attention to the areas where NDVI values differ considerably. For example, the areas of a field that have an extremely low NDVI rate may indicate problems with pests or plant diseases; and the areas with an abnormally high NDVI signalize the occurrence of weeds.
NDRE or Normalized Difference RedEdge*

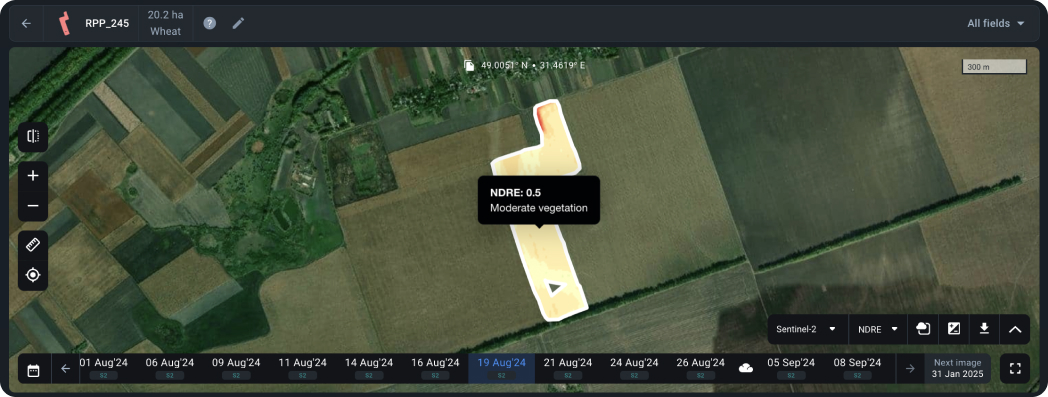

NDRE is an indicator of photosynthetic activity of a vegetation cover used to estimate nitrogen concentrations in plant leaves in the middle and at the end of a season. It allows you to detect the oppressed and aging vegetation and is used to identify plant diseases. It also makes it possible to optimize the timing of the harvest.
*The red-edge band is a narrow band in the vegetation reflectance spectrum between the transition of red to near infra-red.
MSAVI or Modified Soil-Adjusted Vegetation Index

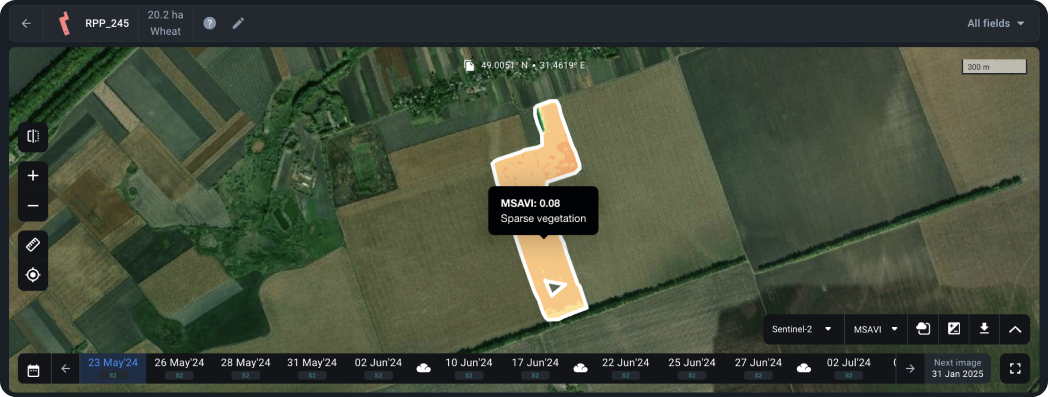

MSAVI allows you to determine the presence of vegetation in the early stages of emergence when there is a lot of bare soil. The index minimizes the effect of bare soil on the display of vegetation maps. Based on the index, you can build maps for differential fertilizer application in the early stages of crop growth.

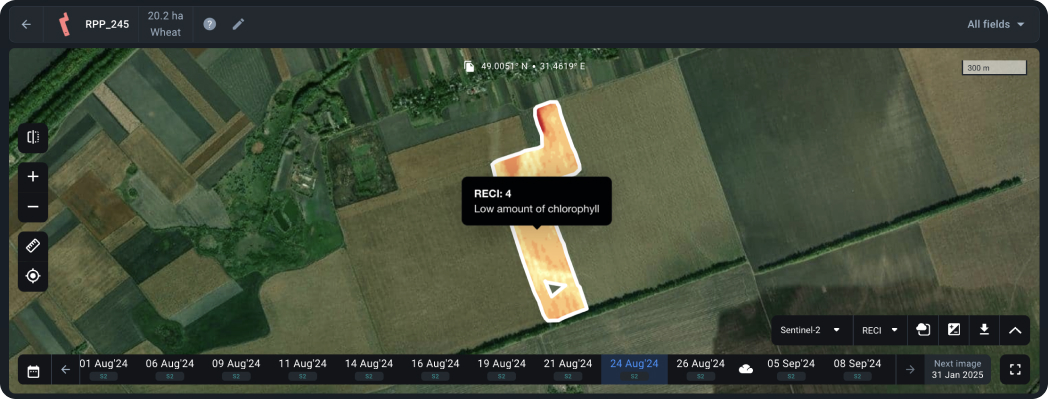

ReCI or Red-edge Chlorophyll Index
ReCI is an index of photosynthetic activity of a vegetative cover, sensitive to the content of chlorophyll in leaves. Since the level of chlorophyll is directly related to the level of nitrogen in the crop, the index allows you to identify the areas of the field that have yellow or faded leaves, which may require additional fertilizer application.
Currently, one moisture index is available on the platform:
NDMI or Normalized Difference Moisture Index
NDMI describes the crop’s water stress level and is calculated as the ratio between the difference and the sum of the refracted radiation in the near-infrared and SWIR spectrums. The interpretation of the absolute value of the NDMI makes it possible to immediately recognize the areas in which the farm or field is experiencing water stress. NDMI is easy to interpret: its values vary between -1 and 1, and each value corresponds to a different agronomic situation, independently of the crop
NDVI, NDRE, MSAVI, ReCI, NDMI are indices that can be selected either from the left drop-down menu or the three-dots menu on the small panel above the analytics window.

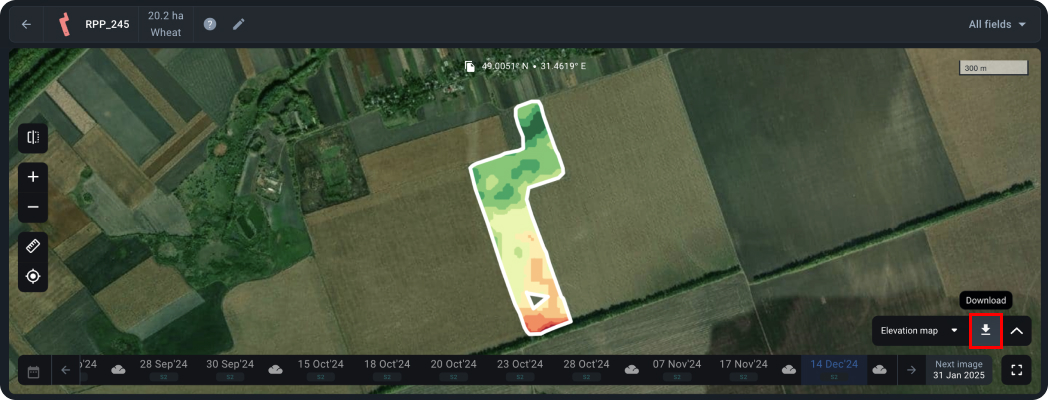

Using a small panel above the analytics window, you are able to download e.g. the NDVI map in .tiff or .shp formats. Shape format gives you the pixel-by-value NDVI at each point and TIFF format shows a regular image with the NDVI applied.
To expand the statistics to check the index of your field, use the small panel above the analytics window. Statistics can be displayed in hectares or percentage.

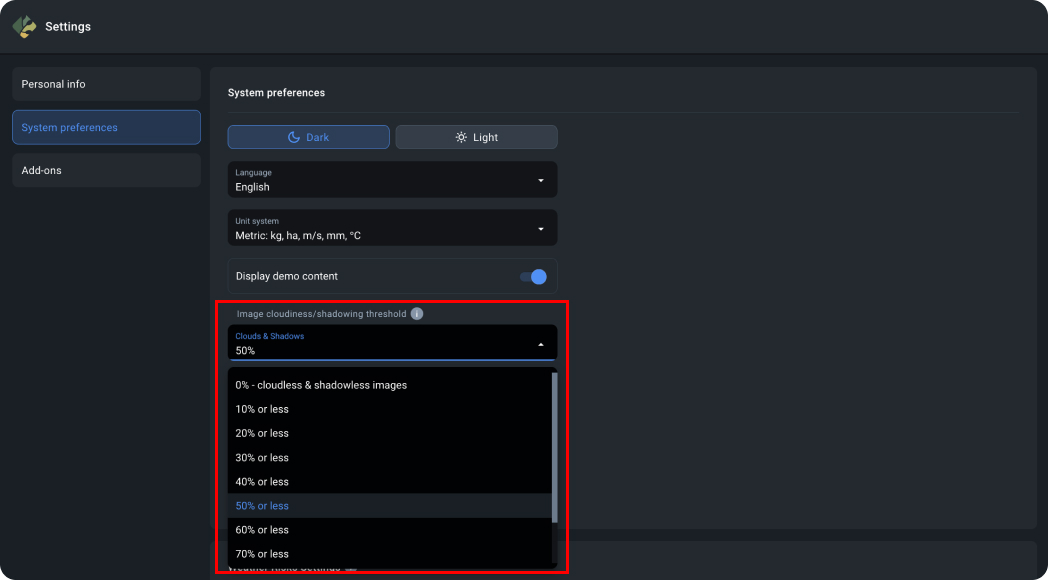

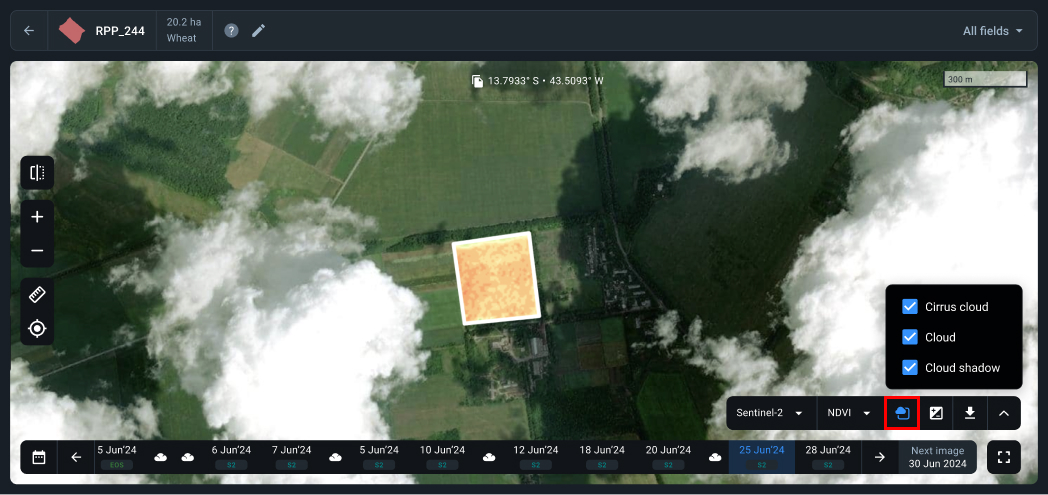

We do not upload satellite images with more than 60% cloudiness. When using an index, there should be no outside factors that can influence the whole picture. With this said, we consider the possibility of getting value from 60% cloudy images as a positive one. Statistics displays in ha and percentage. Clouds are displayed as a white mask over the field.
Shows all images that are less than 60% cloudy. When you pick a date, you see a satellite image with an index applied for that day.
Note: You can see an image preview by hovering over the date on the timeline.

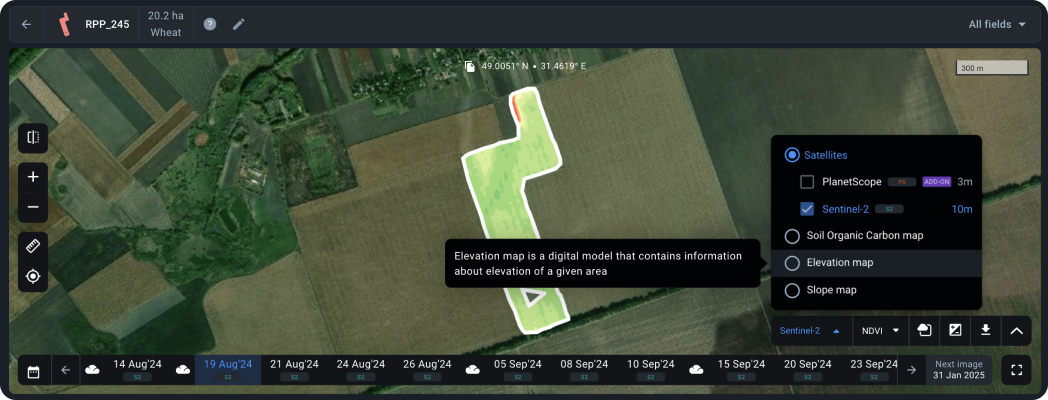

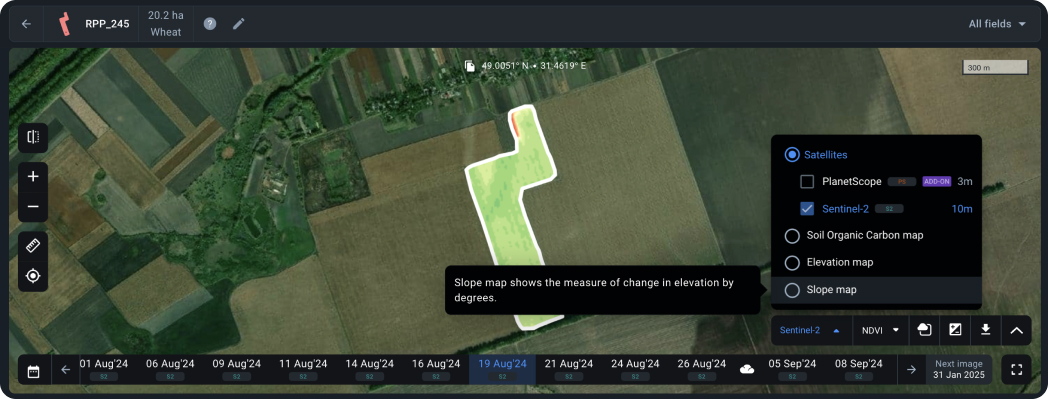

Elevation map is a digital model that visualizes differences in elevation across your field. The model allows agronomists to detect potentially problem areas of the field:
and other types.
Combined with other data (NDVI, productivity map, and others), elevation map helps to identify and eliminate factors which impede vegetation development.
This model also allows you to measure field area with more accuracy. It is crucial to know the exact area of your field to correctly calculate the amount of seedlings, fuel, and time required to perform field activities.
How to find the elevation map?

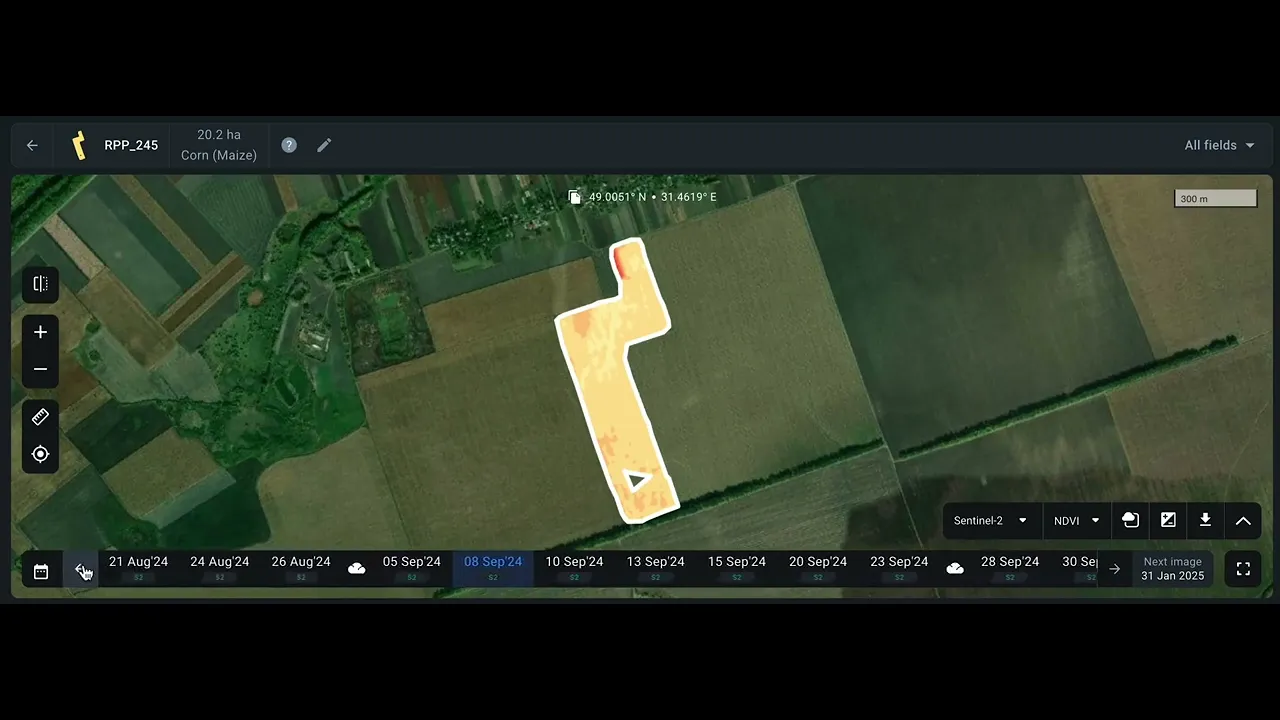

By default, you see the NDVI values of your field on the map. In order to see the differences in elevation, click on the index panel and select the elevation map from the drop-down list.

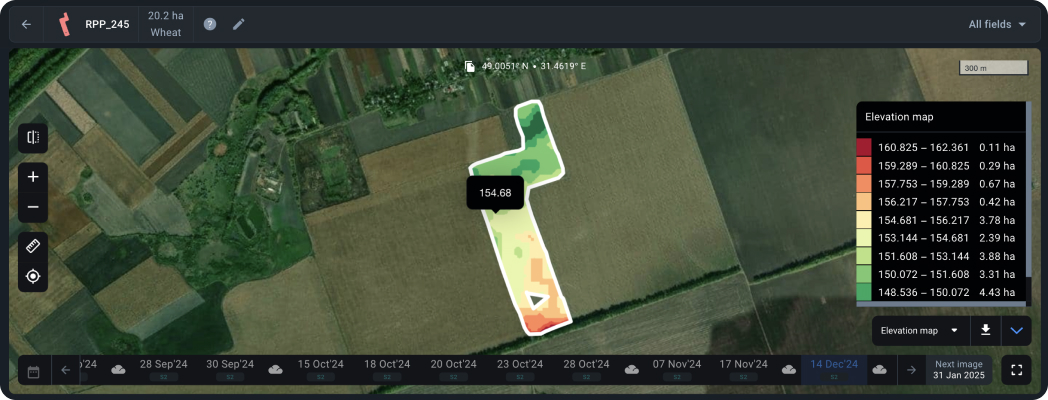

Now you can see the differences in elevation across your field.
Elevations are visualized as different hues, from dark-green low areas to dark-red high areas. Moreover, by hovering over the map, you will be able to see the actual altitude of any point on your field as meters above the sea level.
To better understand the elevation variations of your field, check how the color scheme correlates with the elevation values. Just click on the expand icon in the lower right corner.
Now you see how much area a corresponding elevation takes up on your field and which color hue is used to represent it.
In addition, you can also download the elevation map as a .tiff file by clicking on the download icon in the lower right corner.
The analytics window automatically unfolds on the bottom of the screen by selecting the field.

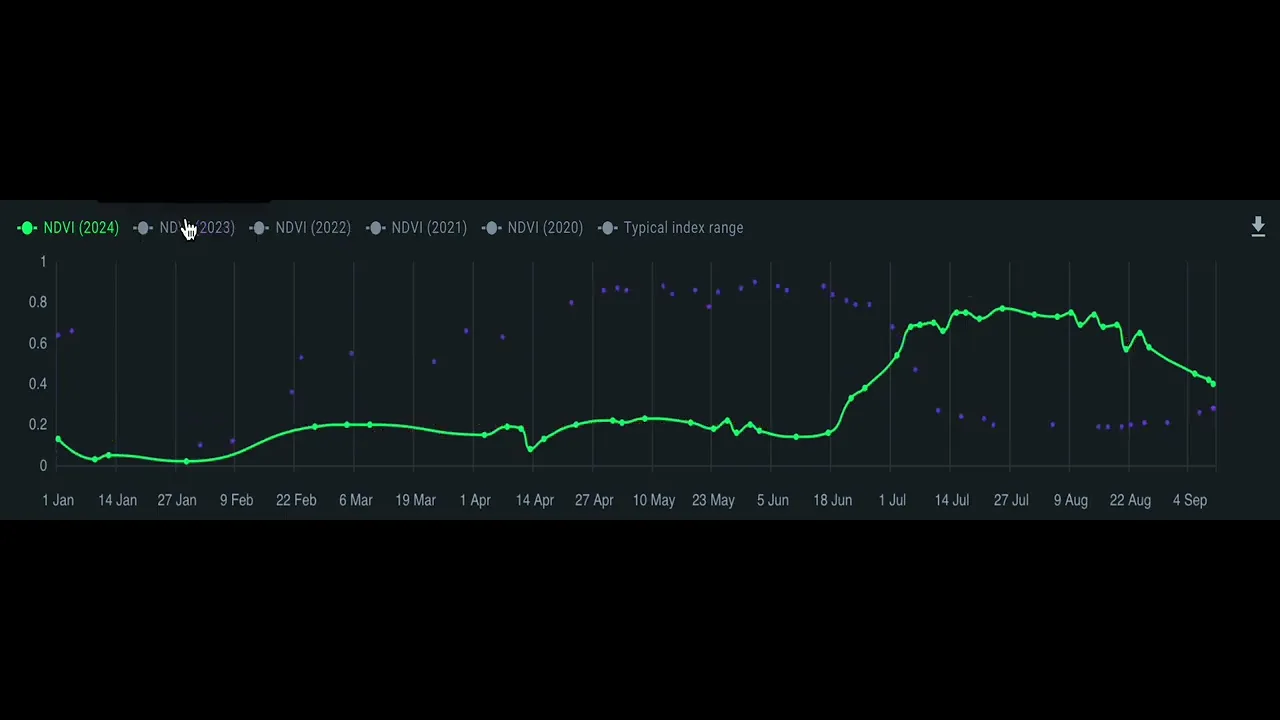

Graphs that display a representation of NDVI (normalized difference vegetation index) are in the center of this window.
There is also the possibility of years comparison, thus you can monitor how your crop is developing compared to data collected in the past. To visualize the data for the specific date, hover over the curve.
Each curve can be disabled by clicking the corresponding colored buttons on the legend. This allows you to disable the unnecessary items and compare indices for years of interest.

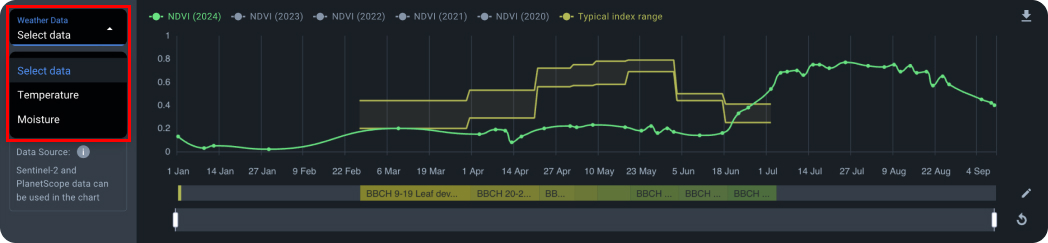

To view weather data on the graph, select the required data type from the Weather data drop-down list.
Temperature data includes:
Moisture data includes:

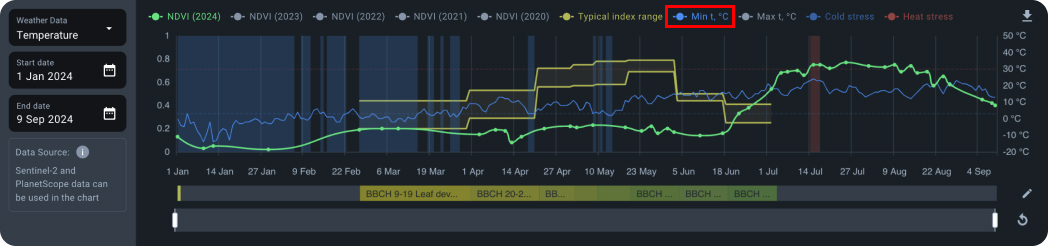

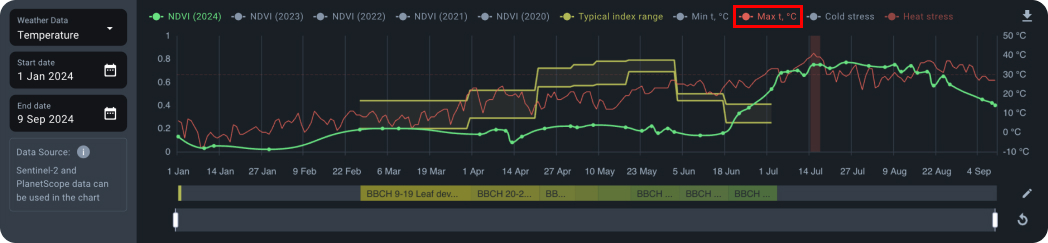

Min temperature curve shows the history of minimum temperatures occurring in your field over a period of time. Whenever this curve crosses the Cold stress mark at -6°C, your winter crops are at risk of damage or failure. Track the curve and react when it is approaching the cold stress. Over time, you can build trends based on this graph to better protect your crops.
Max temperature curve represents the history of maximum temperatures in the field over a period of time. Whenever it crosses the Heat stress mark at +30°C, your crops are at risk of experiencing drought conditions. Track the curve and react when it is approaching the heat stress. Over time, you can build trends based on this graph to better protect your crops.

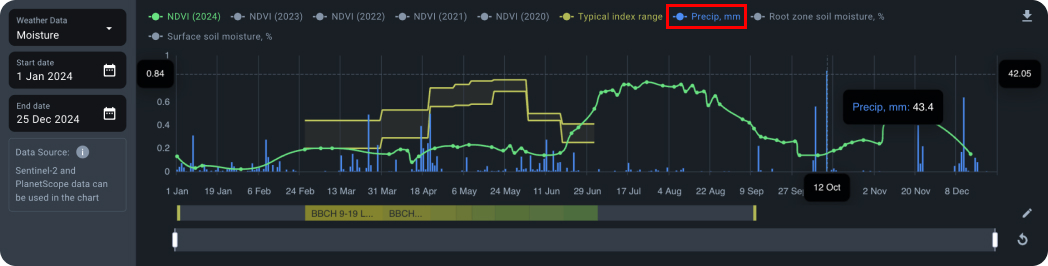

Precipitation graph reflects the history of precipitation on the field measured in mm. You can build trends based on this graph and adjust irrigation and fertilization planning to increase efficiency.

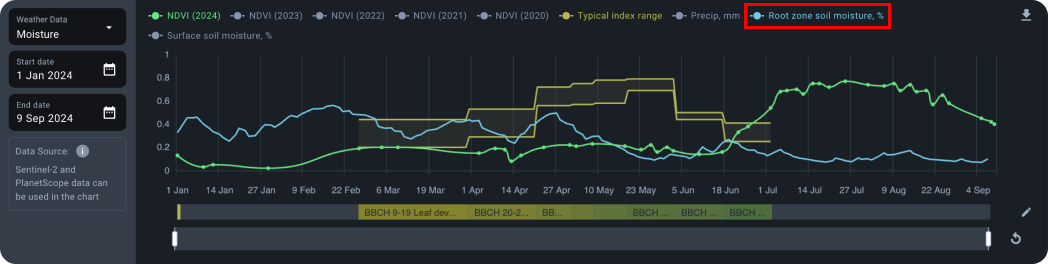

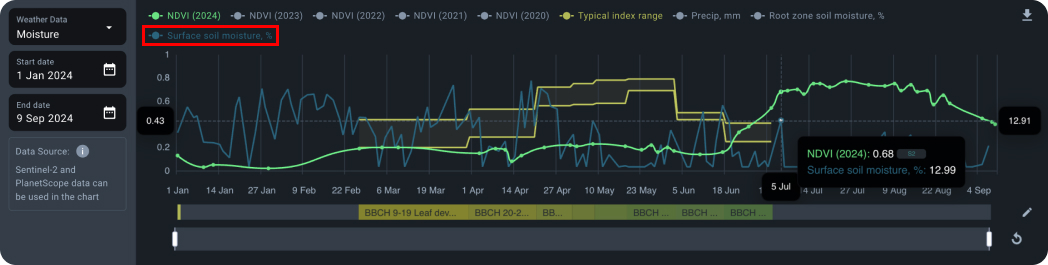

Surface soil moisture curve represents the change in the amount of water in the top few centimetres of the soil over time. Based on this data, you can make better-informed decisions on irrigation.
Root zone soil moisture curve shows the change in the amount of water available to crop roots over time. Improve your water management by making decisions based on this data.

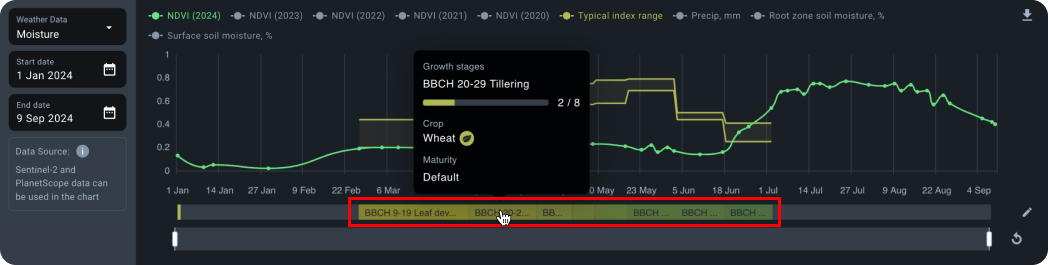

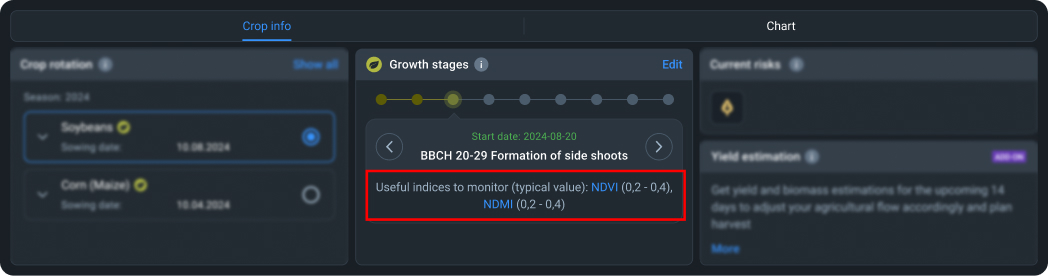

Use Growth Stages to get to know what stage your crop is on right now. If not needed, you are always able to hide the curve from being displayed by clicking on the Growth Stages.
Note! You should add info about crop rotation to see growth stages of your crops.

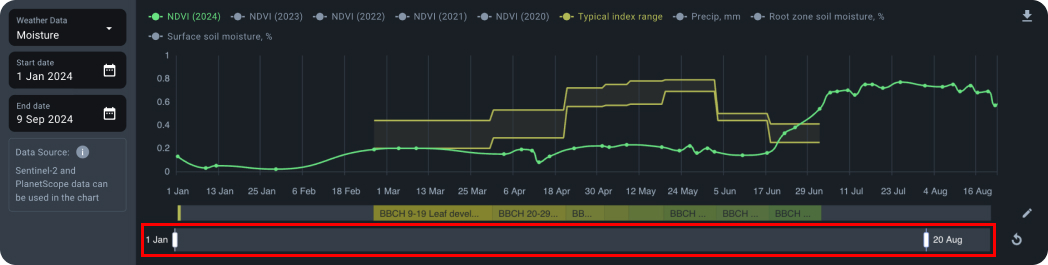

By default, it shows one year period or the date range selected on the calendar.

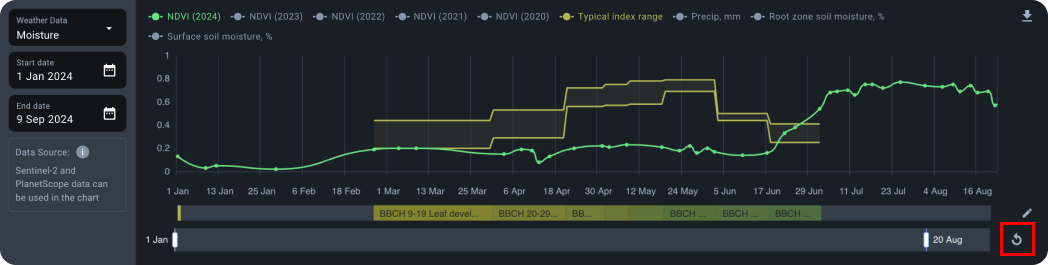

If you set a date range and want to get the default year period view, click Update.
Crop | Disease Risk | Growth Stages | Yield Estimation | Variety | Weather Risk | Index risk |
---|---|---|---|---|---|---|
Onions | ||||||
Olive | ||||||
Winter barley | ||||||
Grapes | ||||||
Radicchio | ||||||
Celery | ||||||
Rapeseed | ||||||
Lemons | ||||||
Apple | ||||||
Fruit | ||||||
Vegetables | ||||||
Citrus | ||||||
Tuber crops | ||||||
Garlic | ||||||
Spring barley | ||||||
Sorghum | ||||||
Oranges | ||||||
Tobacco | ||||||
Avocado | ||||||
Kale | ||||||
Pear | ||||||
Cucumber | ||||||
Paprika | ||||||
Vineyard | ||||||
Coffee | ||||||
Mixed cereals | ||||||
Tomatoes | ||||||
Cassava | ||||||
Bananas | ||||||
Winter rapeseed | ||||||
Eggplant | ||||||
Turnip | ||||||
Peach | ||||||
Endive | ||||||
Lettuce | ||||||
Melon | ||||||
Olive tree | ||||||
Cherry | ||||||
Buckwheat | ||||||
Cereal | ||||||
Mustard | ||||||
Peanuts | ||||||
Iceberg lettuce | ||||||
Romaine lettuce | ||||||
Sorghum sudanense | ||||||
Triticosecale | ||||||
Snap Peas | ||||||
Cauliflower | ||||||
Broccoli | ||||||
Green beans | ||||||
Table grapes | ||||||
Plum | ||||||
Strawberry | ||||||
Spring rapeseed | ||||||
Asparagus | ||||||
Chilli | ||||||
Bitter melon | ||||||
Silage sorghum | ||||||
Silage corn (Maize) | ||||||
Winter rye | ||||||
Winter triticale | ||||||
Carrot | ||||||
Winter cereals | ||||||
Canola | ||||||
Rice | ||||||
Cotton | ||||||
Rye | ||||||
Potatoes | ||||||
Oats | ||||||
Peas | ||||||
Soybeans | ||||||
Sugar beet | ||||||
Corn (Maize) | ||||||
Groundnut | ||||||
Pigeonpea | ||||||
Cowpea | ||||||
Chickpea | ||||||
Mungbean | ||||||
Fababean | ||||||
Millet | ||||||
Sweet potato | ||||||
Sunflower | ||||||
Winter sorghum | ||||||
Oilseed crops | ||||||
Sugarcane | ||||||
Spring cereals | ||||||
Beans | ||||||
Wheat | ||||||
Pulses | ||||||
Winter wheat | ||||||
Spring triticale |
Simply click Forecast to be redirected to the Weather page in case Weather today data is not enough for you or comparison with other vegetation periods is required.
You can get all this information using the Weather analytics tab on the right sidebar as well.
Historical Weather is archived temperature and precipitation data. To set the vegetation period, choose the season you are interested in (available from 2008) and its start and end dates using the calendar. By default, the Growth Stages curve shows on all the graphs. In case there were no stages during the selected time frame, the pointer will be disabled. You can disable it manually at any time if it is not informative for you.
To add a curve displaying the data for the past five years, activate the Compare with 5 years average option.
Once 5 years average is enabled, you will be shown the average for the current period and the last 5 years precipitation levels on graphs to visualize collected information for further analysis.
Accumulated Precipitation graph
Daily Precipitation graph
The graph shows min°C and max°C as well as 5 Year Average min°C and max°C if the 5 Years Average option is selected.
The drop-down menu has three options that can be chosen: 0°C (1°C to 5°C), 5°C (6°C to 10°C) and 10°C (11°C to more). So if you pick the date range from 6°C to 10°C that is a 5°C filter option on the list, you will see the sum of these temperatures.
The Weather Forecast option provides you with access to the 14 days weather forecast. Wind speed, humidity, cloud coverage and expected precipitation are also shown on the screen.
On the weather forecast page you can also find the recommended times for field activities such as soil tillage and spraying.
To determine the optimal time for each activity, we have analyzed the following indicators for you:
– Air temperature
– Air humidity
– Wind speed
– Rainfall forecast
– Rainfall totals for the last 24, 48 and 72 hours
– Soil moisture
– Soil temperature
Each hour has a marker. The color of the marker corresponds to the recommendations:
Green – Optimal time for the activity
Orange – Acceptable time for the activity
Red – Not recommended time for the activity
To get a more detailed description of the task, select it on the Scouting tab that is divided into General and Report.
General is for the one who sets the task. It allows changing the name or description, uploading a photo of the field or closing a task in case it is completed.
The Report tab is for scouts. Scout selects the date when the field was inspected, fills in the name of a client e.g. the owner of the field, and the number of the field, changes the field area and crop name, hybrid and sowing date using this tab.
With the help of this tool, scout adds developmental phases indicating the root thickness and the amount of leaves, sets the density of plants and makes a final review of the field indicating the state of crops and leaving an expert comment. After making all the necessary changes, the assigned person closes the task if it is completed or updates the task if needed.
In case you need to download the report in the form of a spreadsheet, click the Export button at the top of the Task tab to be processed automatically.
When you complete the task, it’s automatically moved to the Closed tab of the Task list to be displayed as closed on the map.
On the Season Analytics screen, you will find general information about your season. All the figures displayed on the screen are calculated based on the data from the full-access fields only.
At the top of the screen, you’ll see information about the season:
On the main screen, the Crops widget showcases a list of crops sown in the fields for the season. Alongside each crop, you’ll find the number of fields dedicated to it and the total area covered by those fields.

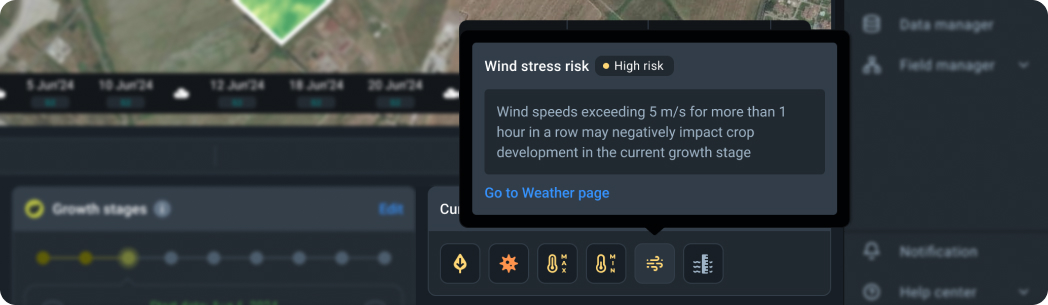

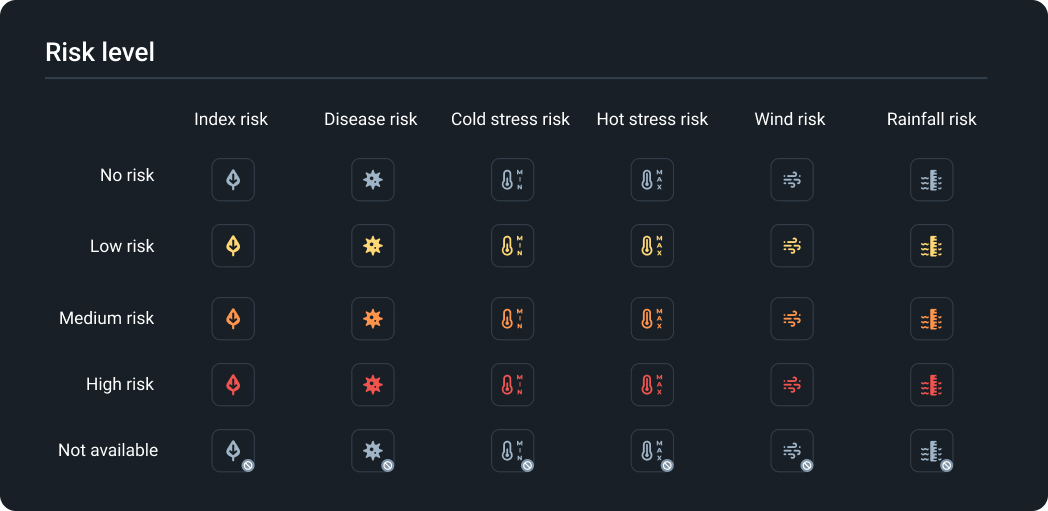

Additionally, if the season is active, the risk indicator for each crop is displayed. If the system detects risks, the number of fields affected by risks is shown next to the crop under the “Risks” parameter. Clicking on the risk indicator adjacent to a crop reveals a list of fields where risks have been detected, allowing you to scrutinize the situation in greater detail.
The Sown areas by crop widget provides a visual breakdown of the area dedicated to each crop individually for the season. You can also view the percentage of the total area allocated to each crop.
In the Field activity log widget, for each crop in the season, the total number of activities is displayed, further broken into four categories:
The Activities costs widget shows all costs spent on each crop in the season according to activities logged in the Field Activity Log. To ensure that costs are displayed accurately, you must enter costs for both planned and completed activities. Additionally, you can track deviations between planned and actual costs using this widget.
The Weekly Crop Performance widget illustrates the average crop development over time based on the NDVI index across all fields in the season where the selected crop is planted.
Below the graph, you’ll find a table featuring the top 10 best and worst fields for the selected crop, determined by NDVI index values. These values are calculated based on the average NDVI value among all fields with the selected crop. For instance, if the average NDVI index among all fields with the crop “Corn (Maize)” is 0.5, fields with NDVI values lower than 0.5 will be listed in the table of the top 10 fields with the worst vegetation, while fields with NDVI values higher than 0.5 will be listed in the table of the top 10 fields with the best vegetation.
Notice: This data is displayed exclusively for an active season in the Seasonal Analytics section.
Field leaderboard has been designed to help users prioritize their field management tasks according to the NDVI value change. Leaderboard also arranges all of your fields in one place according to 1 of 8 different categories:
Each arrangement appears as a list of fields sorted and ranked accordingly and can be exported as a PDF file and/or .xls spreadsheet.
By default, the leaderboard shows your fields arranged according to the latest available image and the most negative NDVI value change.
Note: the field with the latest available image may have less of a NDVI value drop compared to another field with an older available image. This allows you to focus on the most urgent issues first.
Every time there are new satellite images of one, several, or all of your fields, Leaderboard gets updated. You will automatically get notified about each update via email.
The notification email will contain the following data:
Every notification email may contain the data for up to 3 of the fields that are currently at the top of the leaderboard.
You can rearrange the leaderboard to show your fields ranked only according to the NDVI value change. The field with the largest NDVI value drop automatically moves up to the top of the leaderboard. On the contrary, the field with the largest NDVI value rise gets sorted to the bottom of the list.
To rearrange the leaderboard, click on the appropriate sorting parameter above the leaderboard.
The parameter should light up.
Note: you can always tell which category arrangement is currently on the leaderboard by checking the parameter. Only one parameter can light up at a time.
NDVI value drop is marked by the red color and a minus “-” symbol, while the rising NDVI value appears green, with a “+” sign. If there has been no change over the period in question, NDVI value appears white.
You can sort fields according to the group. To view all fields at once, select All groups.
To view fields that do not belong to any group, tick the appropriate checkbox.
Another option is to view only the fields that belong to a specific group.
You can also arrange fields according to their currently growing crop type.
To view the fields with a common growing crop, click on the appropriate checkbox.
Note: Fields without added crop rotation data cannot be arranged according to crop type.
You can rearrange the fields on the leaderboard in 9 different lists and download them as PDF file and/or xls. spreadsheet.
The download begins automatically as soon as you click on the PDF or XLS button.
You can select a date to view the NDVI change for the period between two available images of the same field (3-5 days).
1. Find the Report date field right above the leaderboard.
2. Click anywhere on the Report date field
3. Select the date in the pop-up calendar in 1 click
The leaderboard will automatically refresh to show you the data for the period between two images closely preceding the selected date.
To access the Field leaderboard, you need to update your pricing plan to Essential or Professional.
You can try out the Field leaderboard feature on your Demo field in the Free Account.
Note: Only the Demo field data will be accessible.
Additionally, you can sort fields within the leaderboard based on 7 different attributes:
You can create 7 different leaderboards with fields arranged differently and download each leaderboard as either a PDF file or xls. spreadsheet.
VRA maps are an effective tool for applying seeds and fertilizers at variable rates, as well as for determining optimal zones (areas) for precise soil sampling. Data for each zone, determined using vegetation index, allow for the creation of a map on the platform and its importation into agricultural machinery. Consequently, the machinery can adhere to the map, applying precisely calculated amounts of seeds and/or fertilizers to specific zones (areas) within the field.
Variable rate application and precise soil sampling are economically efficient as they optimize seed and fertilizer usage according to the needs of different field zones, resulting in cost savings. Furthermore, variable rate application also promotes environmental sustainability by helping to prevent excessive use of nitrogen, phosphorus, and potassium fertilizers, as well as crop protection agents.
1) On the right sidebar menu, click on VRA maps.
2) In the submenu, select the type of map you are interested in.
3) Here you can select:
4) You will be directed to the list of fields.
5) Select the desired field from the list by clicking on it.
6) On the page with the list of maps, you can see the maps created for this field and choose any map. (Only maps of the current section type are shown.)
7) For more details, refer to the sections on Creating Sowing Maps, Creating Nitrogen Fertilization Maps, Creating P&K Fertilization Maps, and Creating Maps in Map Builder.
A sowing map is your guide to the variable-rate application of potassium (K) and phosphorus (P) fertilizers, differential sowing, and precision soil sampling. The map is based on the NDVI values for the field measured over a selected period of time. The red color usually indicates low productivity of soil, while the green areas stand for higher productivity.
The sowing> map’s algorithm analyzes all the cloudless satellite images available for the selected period. It makes sure that any anomalies are excluded from the calculation of the map to achieve the highest possible precision.
To create a sowing map, you need to select a period of time that you think is the most representative of the field’s soil’s average productivity over time. Currently, you can select a period that starts as far back as 2016.
Tip: We recommend using the maximum possible range of dates for the most precise evaluation of average productivity.
Next, select the number of zones. The default setting is 3 zones, but you can choose between 2 and 7 zones depending on the size of the field and your needs.
After you’ve selected the time period and the number of zones, click CALCULATE.
Tip: To ensure the accuracy of the calculations, do not select the current year if the field has not been harvested yet.
The calculations will take no more than a minute.
Use the sowing map to increase yield by applying fertilizers and seeds more efficiently and performing more cost-effective soil sampling.
To apply fertilizers or seeds according to the sowing map, you will need to manually input the amount per 1 hectare/acre for each zone. The system will automatically calculate the total amount to be applied in each zone as units of measurement (UOM).
The final step is to export the map from the platform by clicking EXPORT below.
Once you click the EXPORT button, you will need to choose the file format from the drop-down list. Learn more about different file formats for the agricultural machinery available on the platform here.
Select the file format that suits you best and click on it. The download will start automatically. You can also hover your mouse over the file format and choose between two options:
1) Get link to this map. The link to the map will be saved to the clipboard*. You can share this link with anyone.
2) Download this map. The sowing map will be saved to your device as a file.
*The link is only valid for 10 days after being copied.
The nitrogen fertilization map allows you to determine the areas within a field with variations in the state of vegetation (low to high) and adjust nitrogen fertilizer application, irrigation, and crop protection activities accordingly. We use a color grade scheme to visualize the variations in the state of crops across the field. The red color may indicate the poor state/health of the crops that are growing in this area of the field, while the green area usually indicates well-performing crops. The decision on the amount of N fertilizer, irrigation method, and proper crop protection also depends on the physical characteristics of a field, such as elevation differences and others.
You can create a nitrogen fertilization map in just a few simple steps.
First, select an appropriate vegetation index in the drop-down menu. The map will be based on all the different index values detected across the field.
Next, select a satellite image in the “Date” field. For the nitrogen fertilization map, you will need one of the latest available images.
Tip: You can preview a satellite image while selecting the date or index before you create the nitrogen fertilization map. This will allow you to settle on the right image without the need to check each one, saving you time.
Finally, select the number of zones and the detail level.
Tip: Maximum detail level works best for small-scale fields, providing you with highly detailed maps. Decrease detail level for larger fields: medium for average-size fields; minimum for larger fields.
Now, all you need to do is to click CALCULATE.
The calculation of zone distribution across the field takes just a few seconds. The result is the map you can see on the left and the zones for variable rate application of inputs on the right.
Make sure there haven’t been any anomalies in the satellite image the map is based on by moving the Opacity slider.
Opacity is set to 80% by default for any obstructions/anomalies to show up in the image overlapping with the nitrogen fertilization map. Moving the slider all the way to the left (0%) will allow you to see the natural view. If no anomalies are to be seen, you can move the Opacity slider all the way to the right (100%), to switch to the nitrogen fertilization map view.
To apply fertilizers according to the nitrogen fertilization map, you will need to manually input the amount of fertilizer per 1 hectare/acre for each zone. The system will automatically calculate the total amount to be applied in each zone as units of measurement (UOM).
Note: the green and red colors on the maps stand for relatively higher and lower vegetation.
The final step is to export the map from the platform by clicking EXPORT below.
Once you click the EXPORT button, you will need to choose the file format from the drop-down list. Learn more about different file formats for the agricultural machinery available on the platform here.
Select the file format that suits you best and click on it. The download will start automatically. You can also hover your mouse over the file format and choose between two options:
1) Get link to this map. The link to the map will be saved to the clipboard*. You can share this link with anyone.
2) Download this map. The nitrogen fertilization map will be saved to your device as a file.
*The link is only valid for 10 days after being copied.
A P&K fertilization map is your guide to the variable-rate application of potassium (K) and phosphorus (P) fertilizers, differential sowing, and precision soil sampling. The map is based on the NDVI values for the field measured over a selected period of time. The red color usually indicates low productivity of soil, while the green areas stand for higher productivity.
The P&K fertilization map’s algorithm analyzes all the cloudless satellite images available for the selected period. It makes sure that any anomalies are excluded from the calculation of the map to achieve the highest possible precision.
To create a P&K fertilization map, you need to select a period of time that you think is the most representative of the field’s soil’s average productivity over time. Currently, you can select a period that starts as far back as 2016.
Tip: We recommend using the maximum possible range of dates for the most precise evaluation of average productivity.
Next, select the number of zones. The default setting is 3 zones, but you can choose between 2 and 7 zones depending on the size of the field and your needs.
After you’ve selected the time period and the number of zones, click CALCULATE.
Tip: To ensure the accuracy of the calculations, do not select the current year if the field has not been harvested yet.
The calculations will take no more than a minute.
Use the P&K fertilization map to increase yield by applying fertilizers and seeds more efficiently and performing more cost-effective soil sampling.
To apply fertilizers or seeds according to the P&K fertilization map, you will need to manually input the amount per 1 hectare/acre for each zone. The system will automatically calculate the total amount to be applied in each zone as units of measurement (UOM).
The final step is to export the map from the platform by clicking EXPORT below.
Once you click the EXPORT button, you will need to choose the file format from the drop-down list. Learn more about different file formats for the agricultural machinery available on the platform here.
Select the file format that suits you best and click on it. The download will start automatically. You can also hover your mouse over the file format and choose between two options:
1) Get link to this map. The link to the map will be saved to the clipboard*. You can share this link with anyone.
2) Download this map. The P&K fertilization map will be saved to your device as a file.
*The link is only valid for 10 days after being copied.
Slopes, hills, and pits are among the factors causing humus leaching and changes in the chemical soil composition, which might decrease field productivity. Field elevation also influences vegetation growth and, therefore, determines the amount of fertilizer, seed and/or pesticide to be applied.
A Map builder allows combining the vegetation and elevation layers to create an optimal VRA map and improve productivity.
You can create a map in Map builder in a few simple steps:
Step 1. Set the parameters needed to create zones on the map:
1) Number of zones
You can choose between 2 and 7 zones on EOSDA Crop Monitoring, according to your needs (e.g. field area). For most fields, 3 to 5 zones are an optimal choice.
2) Level of detail
You can also manage the level of detail the map will show you.
Tip: Use high to maximum detail for small fields and medium to low detail for large fields.
Step 2. Pick the layers to build the map by clicking +Add layer and choosing from the drop-down list of available layers*:
1) Vegetation indices
2) Moisture indices
3) Elevation map
You can select up to 5 different layers. To preview all the layers you’ve added, scroll down below the +Add layer button.
*This list will also show you any custom indices available in your account.
Step 3. After you’ve picked the layers, select a date of a satellite image the map will be based on. You need to pick the date for each individual layer.
Note: Elevation map layer does not require a date of a satellite image.
Step 4. Select the image weight.
Weight indicates how much each layer will count in calculation. For example, NDVI weight set at 100% and Elevation map weight at 50% will generate a map where the NDVI parameter relates to the Elevation parameter as 2:1.
We also recommend using Opacity tool at this stage.
Opacity enables the comparison of map layers. For example, you can compare vegetation and elevation to determine how they correlate with each other. Opacity does not affect calculation and the resulting map.
To work with Opacity more conveniently, you can collapse the layer by clicking on its name.
After you’ve selected all the needed parameters within the layers, click “Calculate”.
The calculation of zone distribution across the field takes just a few seconds. The result is the map you can see on the left and the zones for variable rate application of inputs on the right. To apply fertilizers according to the Multilayer map, you will need to manually input the amount of fertilizer per 1 hectare/acre for each zone. The system will automatically calculate the total amount to be applied in each zone as units of measurement (UOM).
Note: Zone 1 will have the highest values.
By switching to the Parameters tab, you can review the ready map and compare it with the selected layers, e.g. to see how elevation affects a certain area (zone) of a field. This information will help you adjust the fertilizer amount for more effective results.
One of the most accurate indicators of field performance is the actual yield from previous seasons.
To use machine data for the calculation of variable rate maps, go to the “Map Builder” section.
Click on the “Add layer” button and select “Uploaded files”.
A card with the latest file uploaded to the Data Manager for this field will be immediately added to the map settings.
You can select any other file uploaded for this field in the “Activity and date” selector. You can also upload a new file by clicking on the “Upload new file” button.
Select the required data layer to be used in the map calculation in the “Parameters” selector.
Tip: We recommend using yield or seeding data.
You can use up to 5 different layers for the calculation of variable rate maps in the “Map Builder”, which means up to 5 different files.
The final step is to export the map from the platform by clicking EXPORT below.
Once you click the EXPORT button, you will need to choose the file format from the drop-down list. Learn more about different file formats for the agricultural machinery available on the platform here.
Select the file format that suits you best and click on it. The download will start automatically. You can also hover your mouse over the file format and choose between two options:
1) Get link to this map. The link to the map will be saved to the clipboard*. You can share this link with anyone.
2) Download this map. The Multilayer map will be saved to your device as a file.
*The link is only valid for 10 days after being copied.
VRA maps allows you to avoid waste of inputs (seeds & fertilizers alike), which is good for your budget and for the environment.
Use the total savings calculator tool to see exactly how much you save on variable-rate application of inputs vs flat-rate application of inputs moneywise and in terms of resources.
Note: You can calculate savings after you’ve created a VRA map.
Enter the amount of inputs that will go in each zone as UOM per ha/ac.
To calculate your savings thanks to variable-rate application of inputs, first calculate the cost of the flat-rate application of inputs and their amount. When that is done, you can calculate savings by comparing them to the flat rate data.
1. Now, you need to scroll down to the “Total savings calculator” section.
2. Enter the price for one unit of measurement of inputs (UOM) in the “Price per one unit” field. The currency for your location automatically applies.
3. Enter the data for flat-rate application of fertilizer as UOM per ha or UOM per acre, depending on your preferences. This is the amount of inputs you would apply in a traditional way (without using VRA).
4. The system will automatically calculate the amount of fertilizer saved using the VRA application method and the total savings in money.
The total savings calculator will show you:
1. Total amount of fertilizer is the amount of fertilizer you would have applied using the traditional flat-rate method.
2. Total budget is the sum of money that would have been spent on the flat-rate application of fertilizer (without the help of VRA).
3. Fertilizer saved is the amount of fertilizer saved thanks to preferring the variable-rate method to the flat-rate one.
4. Total savings is the sum of money you have saved by applying fertilizer with precision using the VRA maps tool.
All of these figures will show you exactly the benefit of opting for the variable-rate application of inputs.
You can download map form Map builder, Sowing map, P&K or Nitrogen fertilization maps as either SHP or ISO-XML files.
1) SHP format is supported by John Deere, Amazone, and Trimble. We also offer a universal SHP format to match other brands of farming equipment.
– SHP for Trimble is compatible with various display types:
2) ISO-XML format is compatible with ISOBUS equipment.
To download a file in the format that suits you best, simply select it from the drop-down list. After you click it, the download will start automatically.
After you’ve created, saved, and/or downloaded a map form Map builder, Sowing map, P&K or Nitrogen fertilization map it will appear in the maps list on the field’s page.
Field Activity Log is an efficient way to plan and monitor all of your field activities for one, several, or multiple fields on one screen. You can add planned and completed activities to an interactive calendar and conveniently edit the information before, during, or after the completion. With this feature, you can also plan and compare costs of your farming activities, such as fertilizing, tillage, planting, spraying, harvesting, and others.

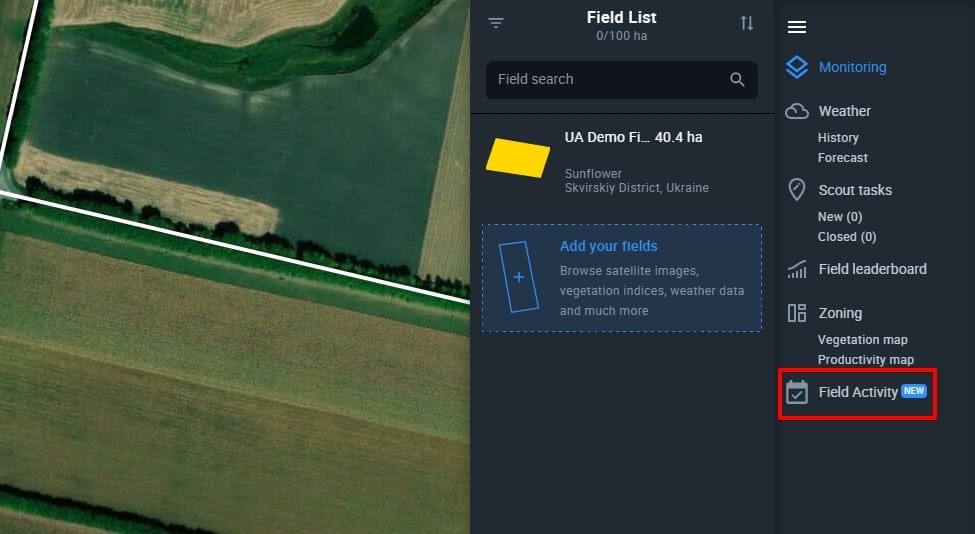

The Field Activity Log is located in a separate tab on the sidebar menu.
If you haven’t got any fields of your own yet, you can use Demo Field to learn how Field Activity Log works on EOSDA Crop Monitoring.
On the screen, all the necessary information about your field activities is organized in three columns: Field, Sowing date, and Activity calendar.
Your fields will appear on the left side of the screen, in the Field column.
You can sort fields by their name from A to Z or from Z to A.

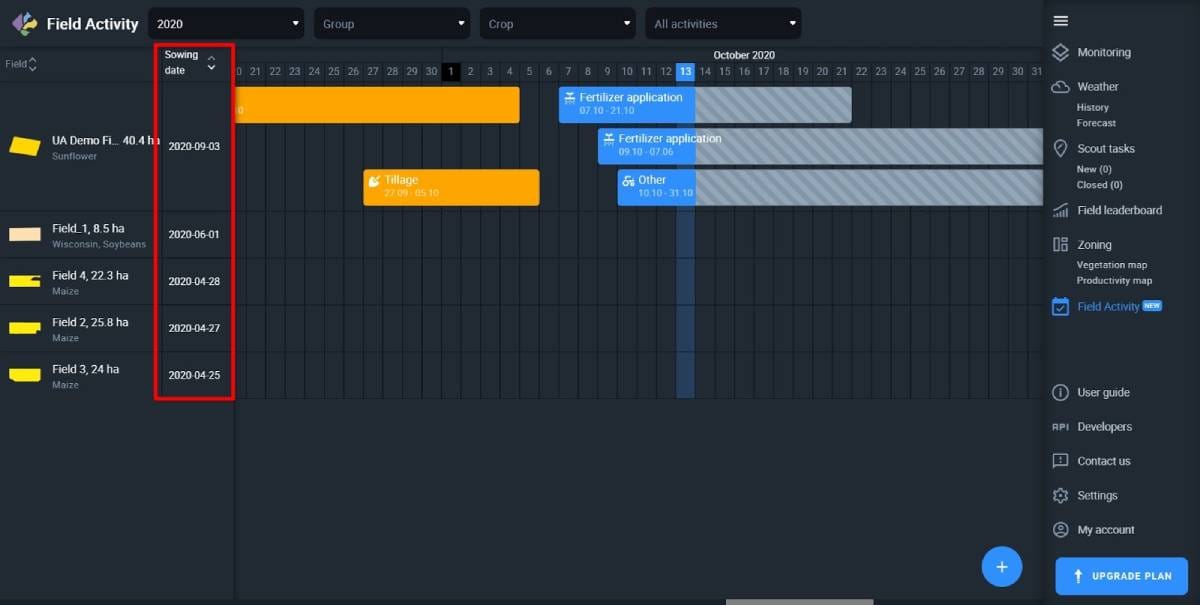

The column shows the most recent sowing date for every field in the list.
You can sort sowing dates from earliest to latest.

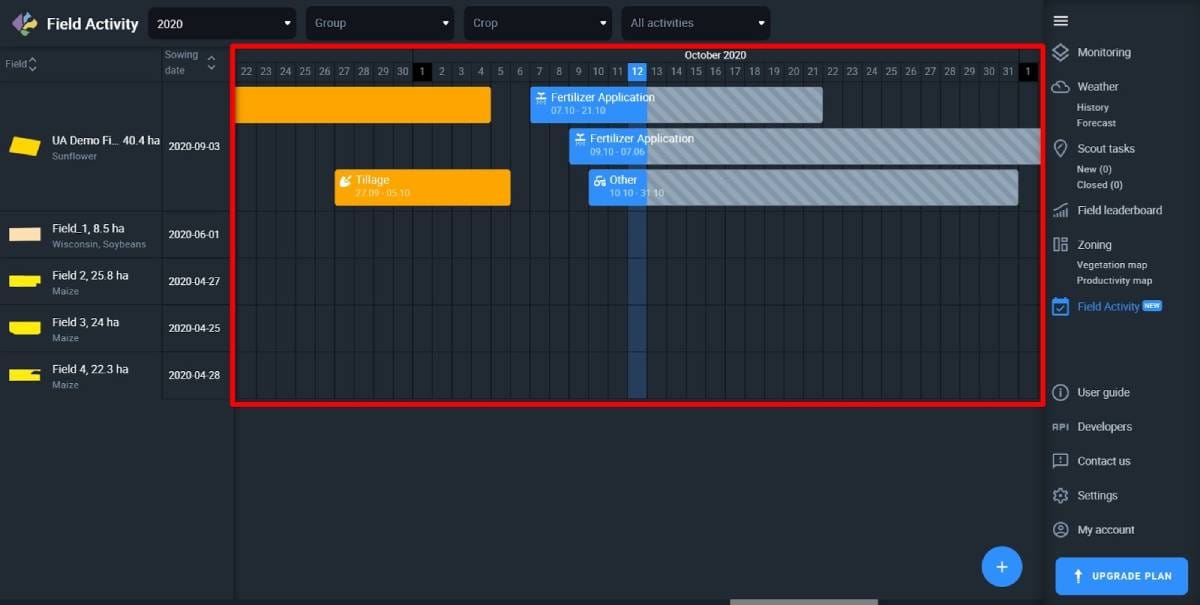

The third column from the left, which takes up most of the screen, is an interactive calendar displaying completed and planned activities that you have already added to the log.

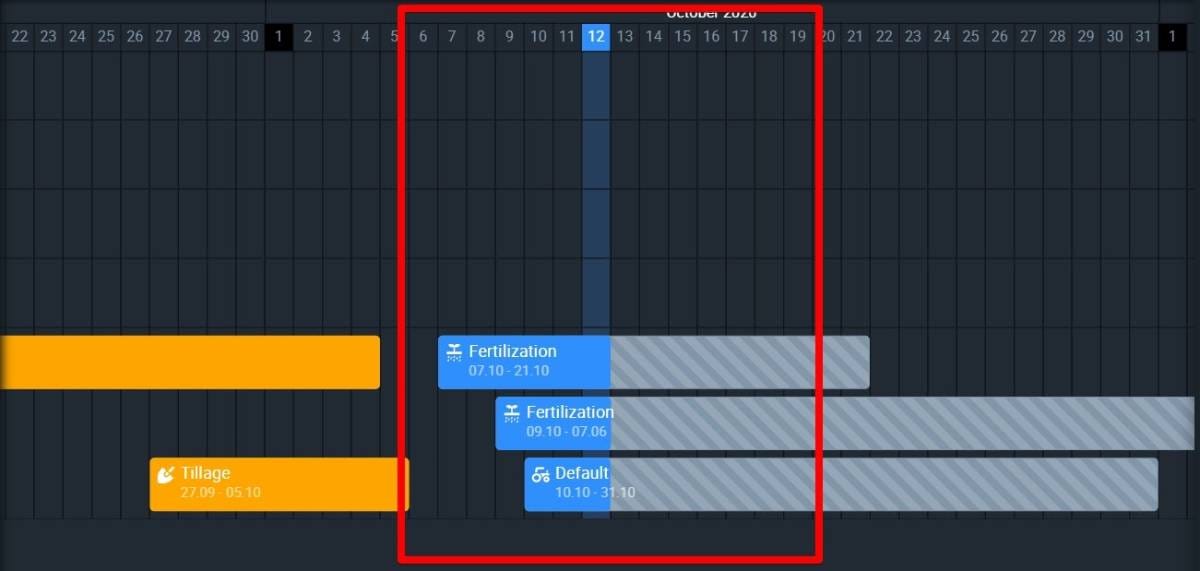

The calendar is always divided in half by the column that represents the current date. All the completed activities are in the left half. Similarly, all the planned activities are on the right.

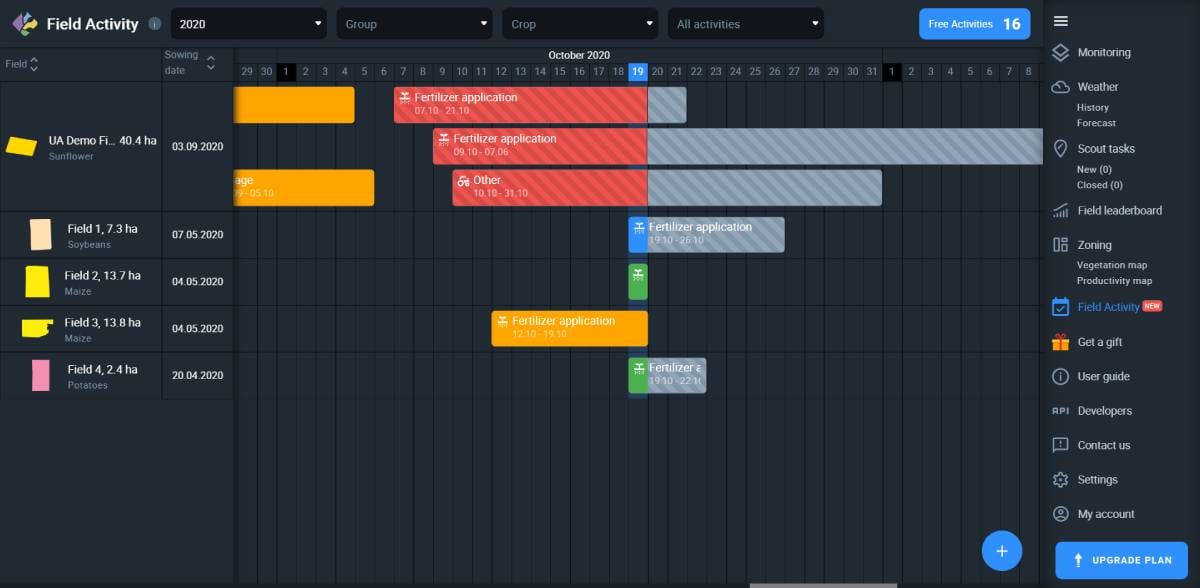

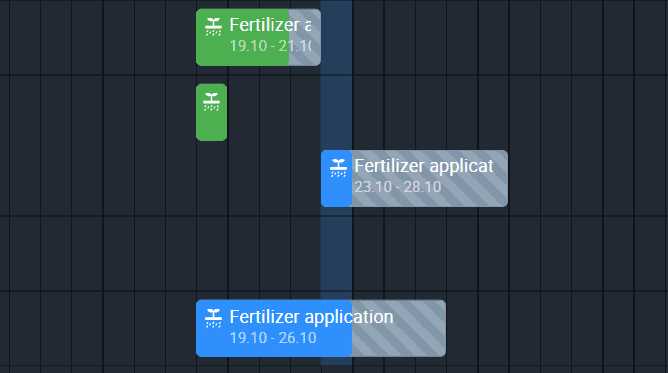

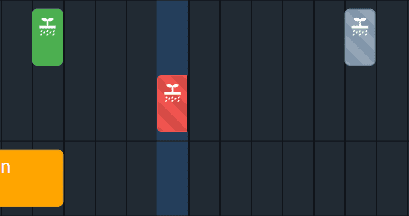

Activities are indicated by different colors, according to their completion status.
You can add an activity that starts and ends on the same day. If that day is still in the future, it will appear gray with stripes.
As soon as your current date “catches up” with the planned start date, it automatically changes from gray to red.
This means the system does not yet have a confirmation that an activity is already in progress.

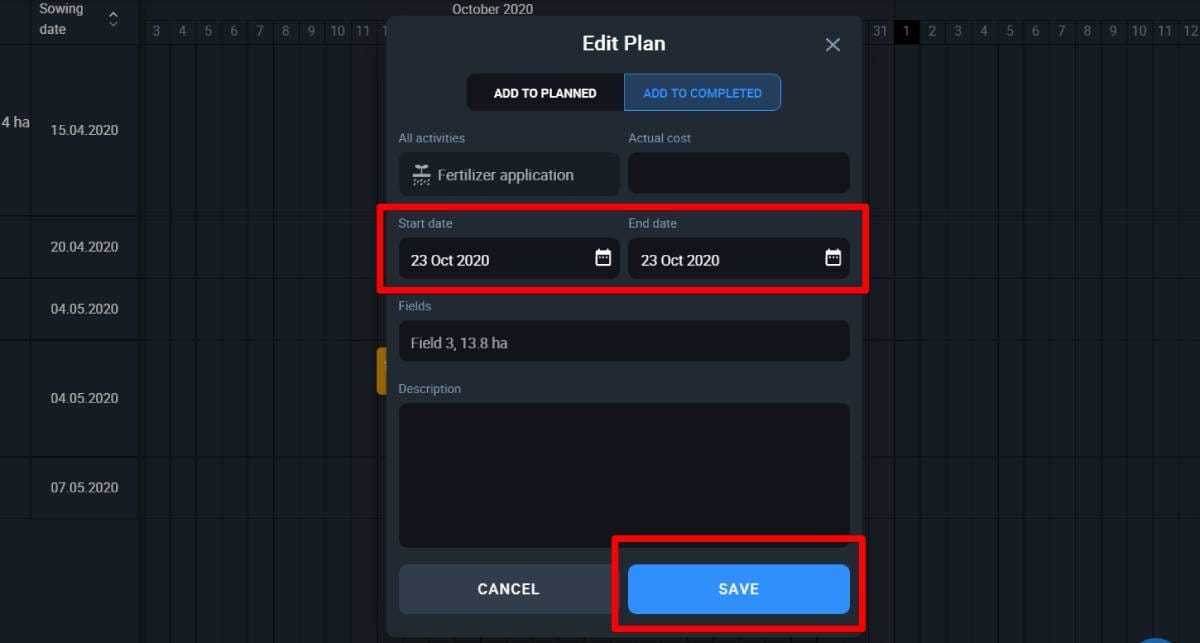

Simply add the Start and End dates of the completion period.

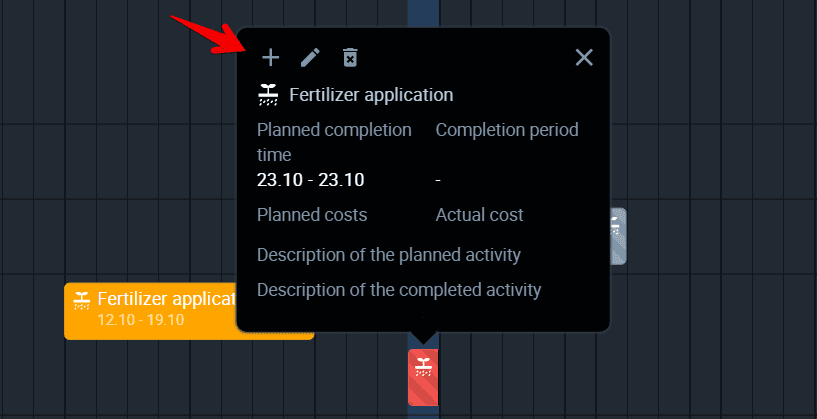

Click on the activity and select the + symbol in the top left corner of the window.
Now select the Start and End dates and click Save.
Once you’re done, red will change to green. Now the activity is officially completed.
Monitoring their status is a little trickier but the same principles apply. As soon as you actually start the completion process, add the start date of the completion period so the system knows the activity is already in progress.
Use the same algorithm as for the single-day activity. Click on the activity and select the +symbol in the top left corner of the window.
Then select the Start date of the completion period and click Save.
Now, individual day cells on the calendar will be automatically changing color from gray to blue one by one.
Make sure to add the end date of the completion period when you are actually done with the activity. Blue will change to green for the whole completion period.
You may start your multiple-day activity one or several days later than planned. In this case, the planned start date will not correspond with the completion period start date. Days you have missed will stay red on the calendar.
Similarly, you may finish your activity several days later than planned. As soon as you add the actual date of completion to the log, these extra days will turn red to show you that you missed your own deadline.
On the other hand, if you complete an activity one or several days before the deadline, the extra days will remain gray on the calendar.
Note: If you decide to start completing an activity before its planned start date, you will need to add a new activity to the log. The start date of a completion period cannot be earlier than the planned start date.
Finally, you can add as many activities completed in the past as you like. They are assigned a distinct color, yellow. This way you can distinguish scheduled activities from unscheduled.
There are two ways to add an activity to the log.

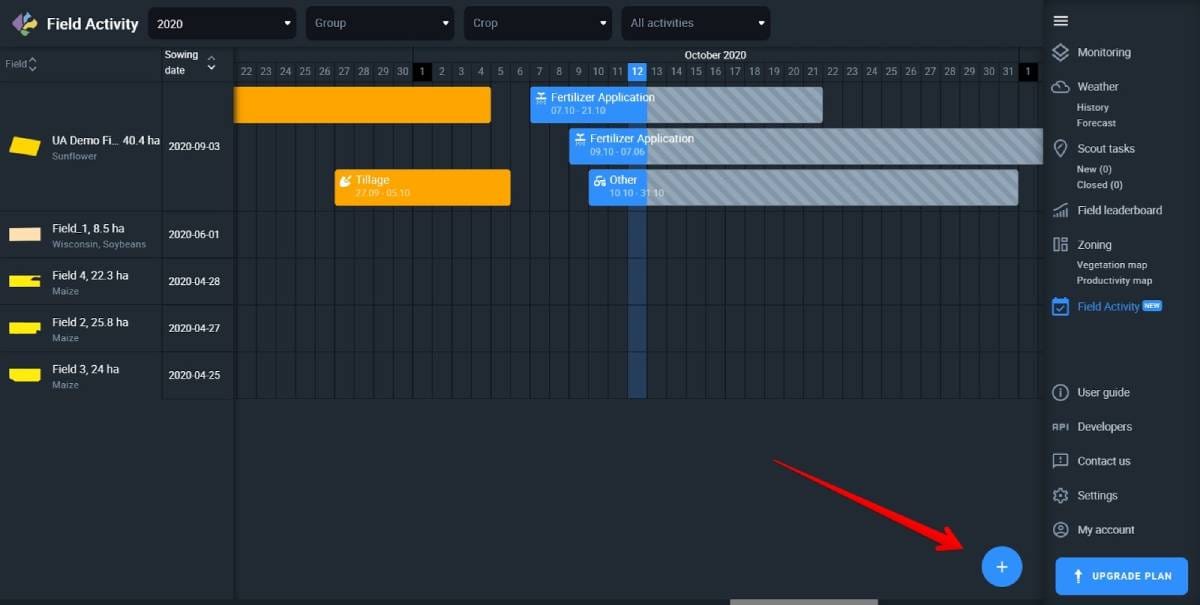

One option is to click on the “+” button in the bottom right corner of the screen.

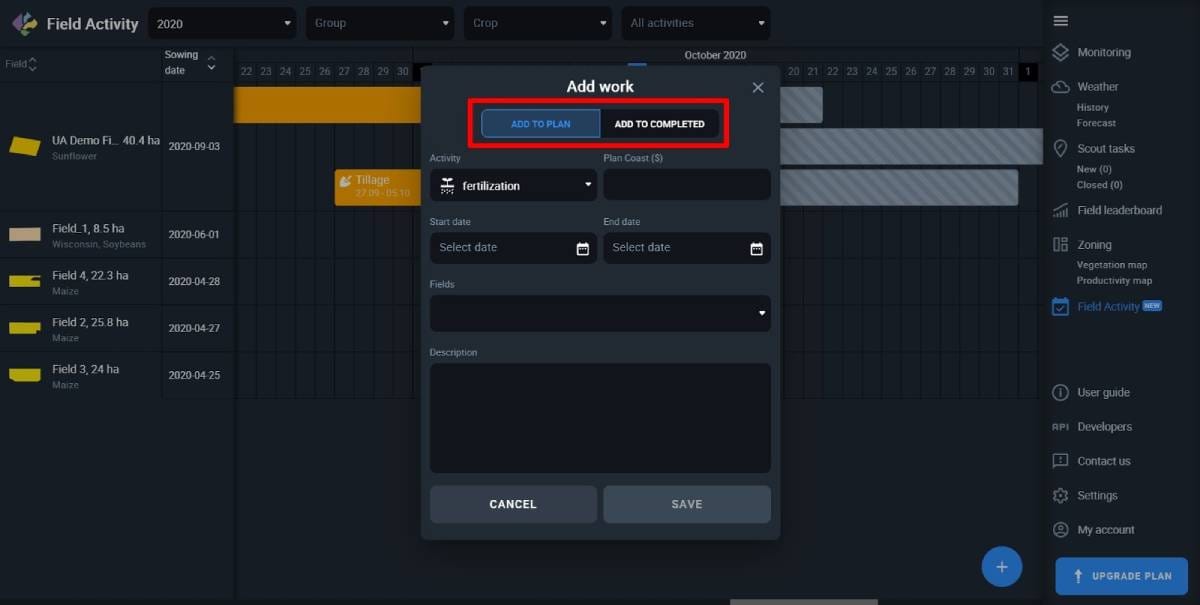

In a window that pops up, choose between completed and planned activity.
Tip: You can add activities that were completed anytime between January 2016 and the current date.

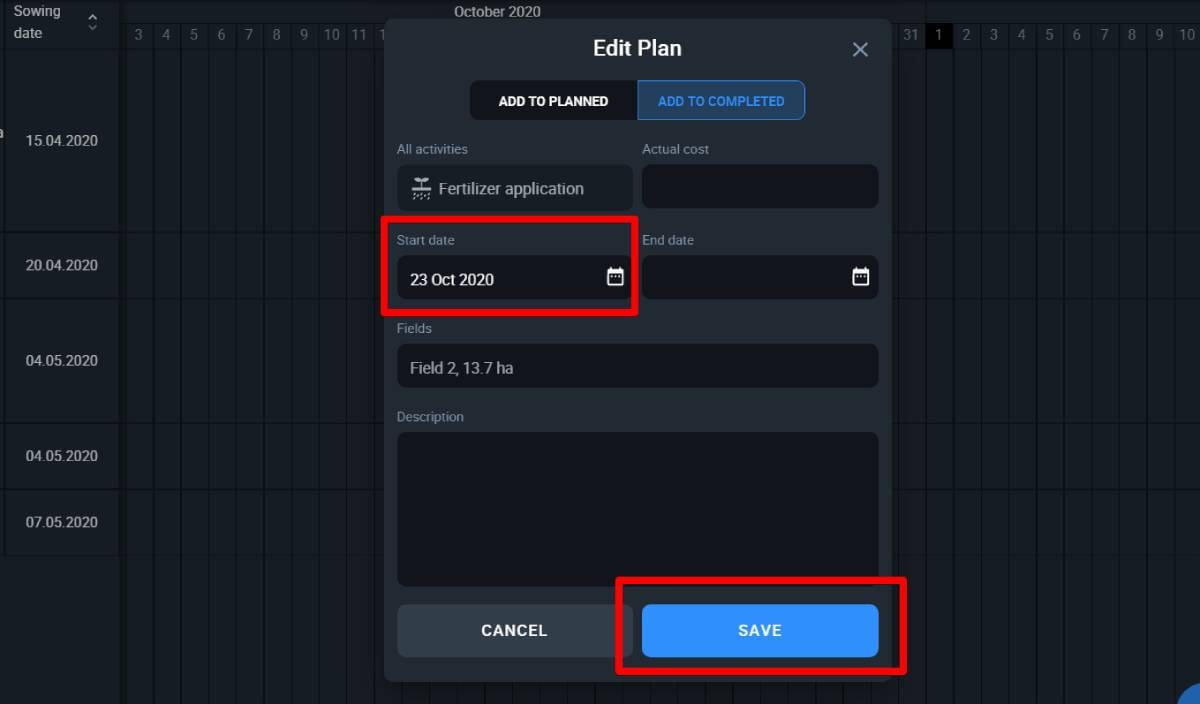

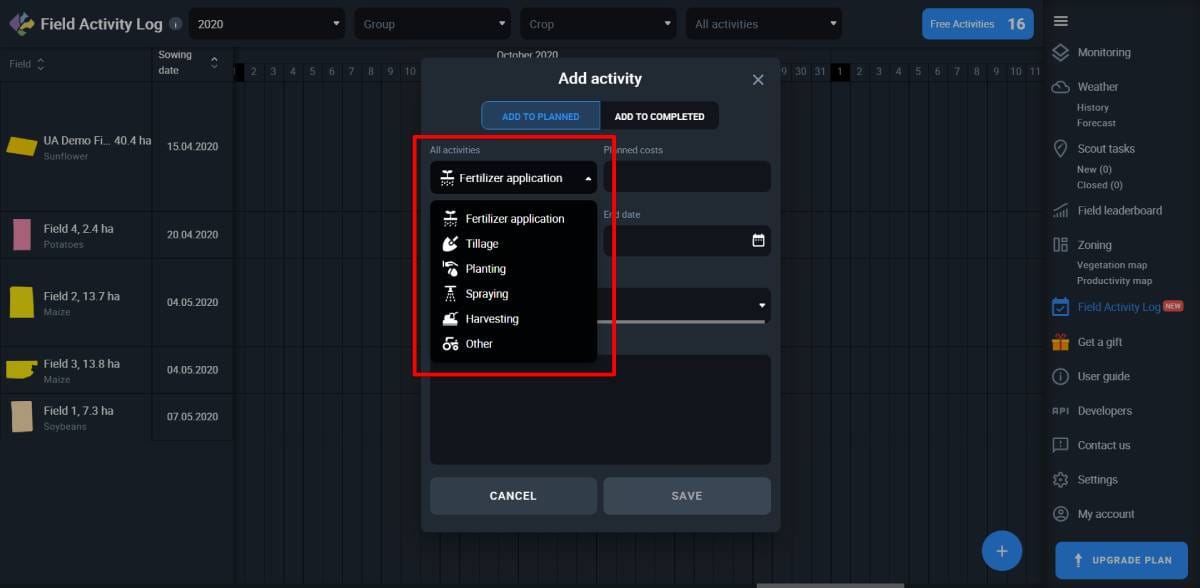

Select the type of activity and its planned start and end dates.
Note: The planned start and end dates will “book” the space on the calendar.

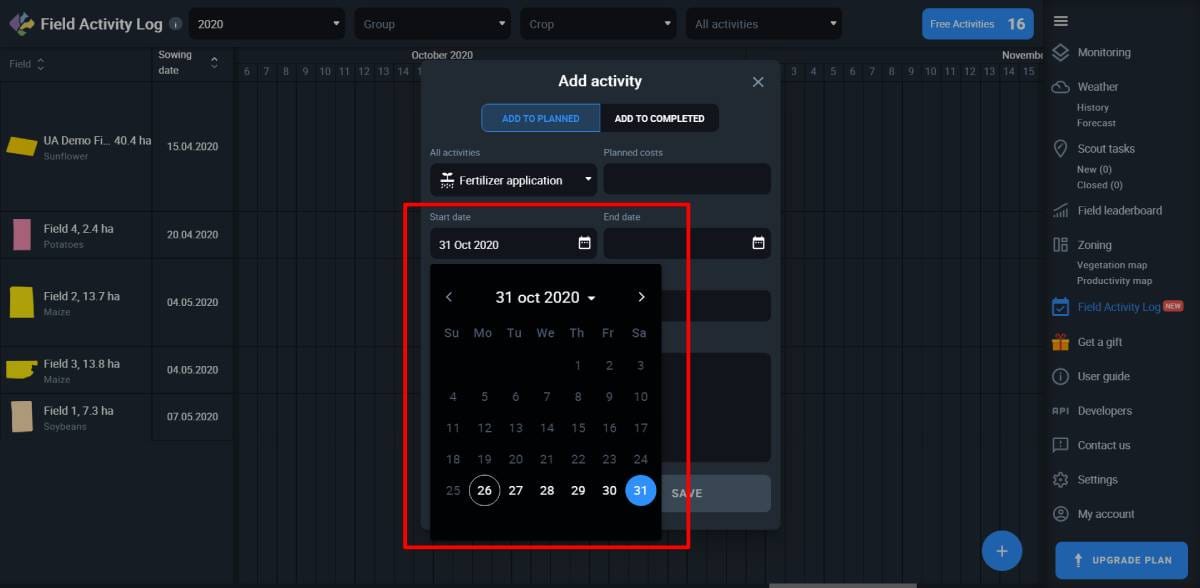

For planned activities, the system won’t allow you to select any past date.

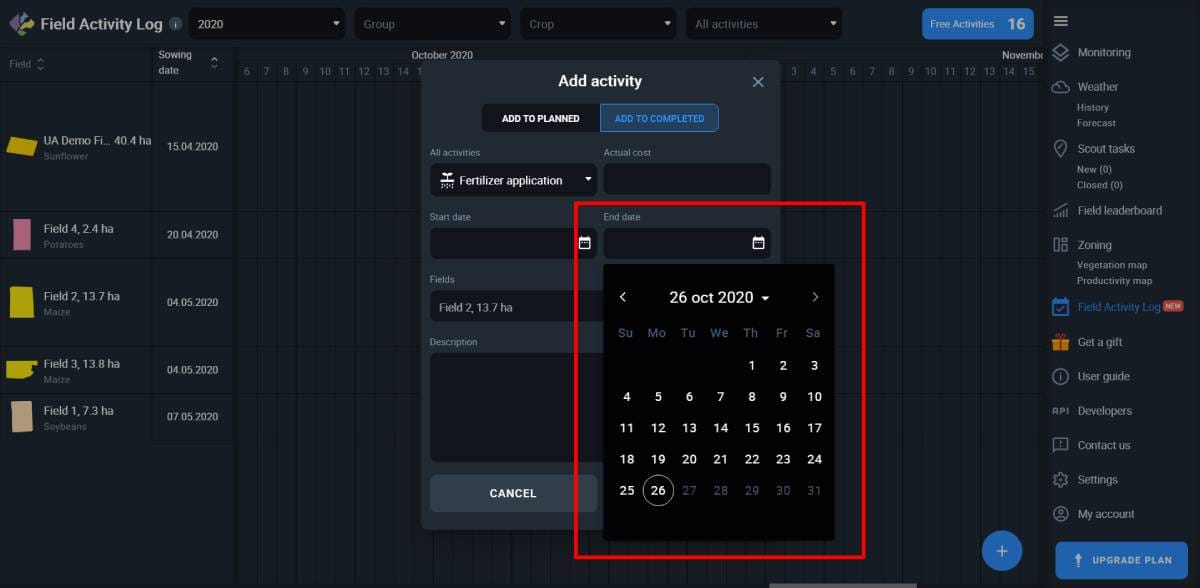

Similarly, future dates are not available if you wish to add a completed activity.

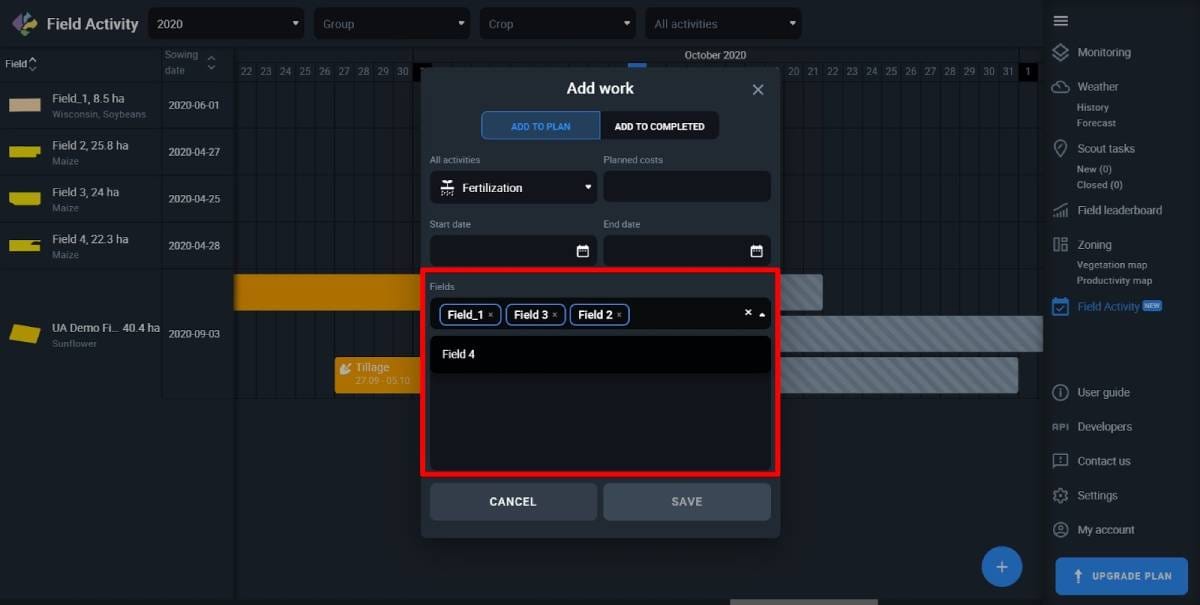

You can add one activity for multiple fields at once.

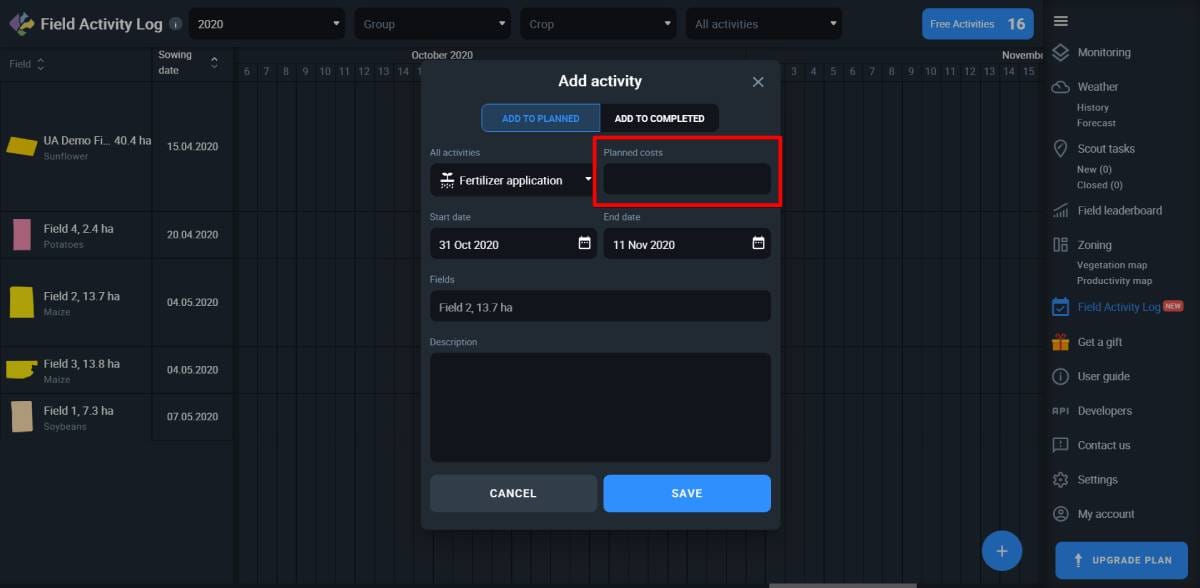

In the cost field put the estimated cost for a planned activity or the actual cost for the completed one.
Note: You can compare estimated and actual cost and plan your activities more efficiently in the future.

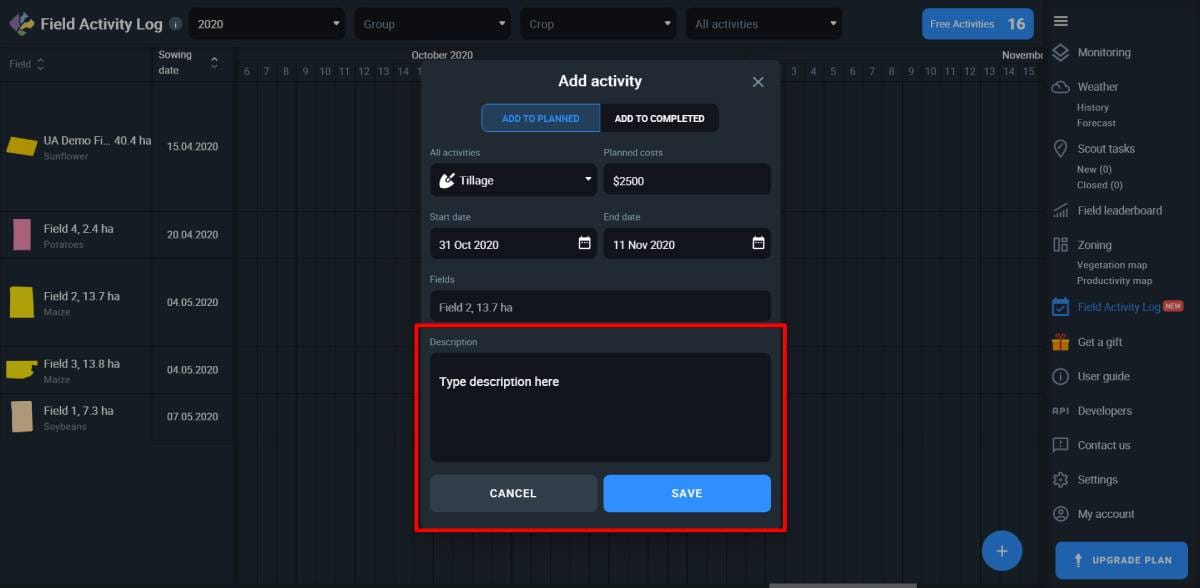

Adding a description to the activity is optional but it allows you to keep a more detailed record of your field activities.
Click Save to finish adding the activity.
You can also add activities directly on the calendar.
Pick the start date for your planned or completed activity, find the appropriate cell and click on it.
You can filter logged activities according to years, field group, crop type, and activity type.
These filters are located in the uppermost bar of the screen.
Click anywhere on the filters to select year, group, crop type, or activity type to organize your activities accordingly.
To edit activities, click on them, and then click on the pencil icon.
Data Manager is your opportunity to upload data on harvesting, fertilization, spraying, planting, and any other activity from your vehicle to EOSDA Crop Monitoring. To do this, you have to save this data as a standard shapefile first. Depending on the settings of the on-board computer of your vehicle, you can visualize the uploaded data in the form of maps that display yield, moisture, sowing density and other technological parameters that were recorded by your equipment while working in the field.
Visualization of this data helps you control the quality of field activities completion: the application rate of different crop products, seed rate, tracking the amount of the harvested crop and its moisture, and much more.

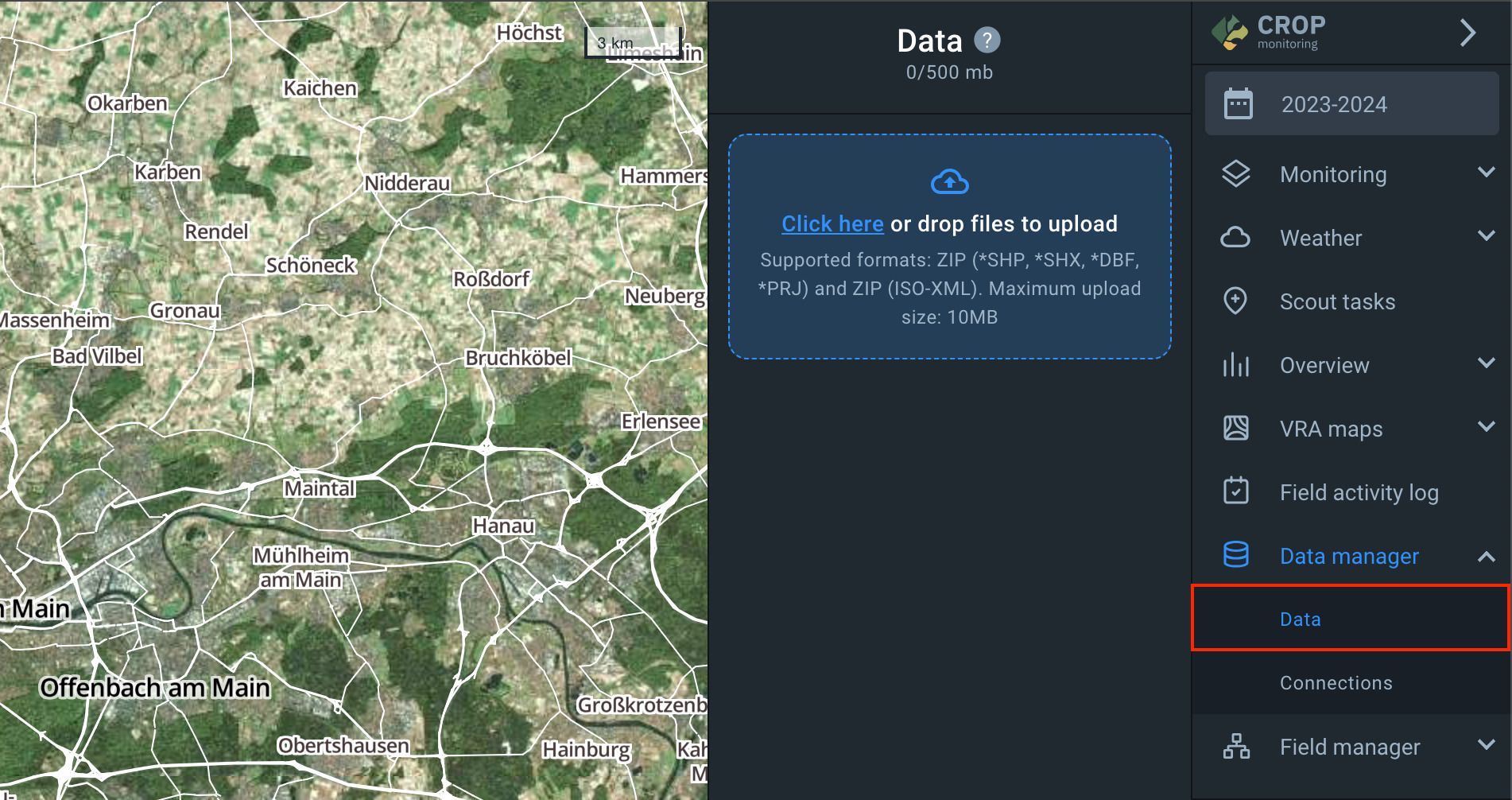

The Data is located in a separate tab on the sidebar menu.
The data you want to upload should be saved as a ZIP archive. The archive should contain data in the SHP format. Use the full dataset of the format (* SHP, * SHX, * DBF, * PRJ).
Note: The absence of a * PRJ file is acceptable.
There are three ways you can upload data to Data Manager:
1. Drag and drop the file with data to the Data field
2. Drag and drop the file with data to the viewer
3. Click on Add Dataset and select the file on your computer
Processing data will take some time before it’s fully uploaded. In the meantime, you can continue working with other features of EOSDA Crop Monitoring.
Once the data is successfully processed, a green notification will pop up.
To continue working with the uploaded data, click on the name of the processed ZIP archive in the Data field of the Data Manager.
There are two scenarios of assigning data to the field, depending on whether the uploaded data matches any field you already have in the system. If the uploaded data doesn’t match the contour of any field, a “Create and Assign Field” form will pop up, offering you to create a new field.
Note: The field you created, will automatically appear in the system.
1. Name the field
2. Select the type of activity
3. Select the start date of the activity
4. Leave a short description if necessary
5. Select all the necessary parameters on the map (from those that were set up in the on-board computer of your equipment)
Note: You can always edit this information later.
If the uploaded data matches the contour of one or several fields, an “Add Activity” window will pop up.
1. Select activity
2. Select parameters (from those that were set up in the on-board computer of your equipment)
3. Leave a description if necessary
4. Select one or several fields that match the uploaded data (check the Overlay value)
5. Select the start date of the activity
6. Click on Assign Field
The activities you have assigned to the field will be displayed in the Data field. To see the visualised data on the completed activity, click on the date of its completion.
To switch between several parameters (types of data), click on the necessary parameter in the legend.
Note: Parameters and their numeric values are uploaded from the data file and cannot be changed. You can only switch between parameters to compare them with each other, or choose only the one parameter you need.

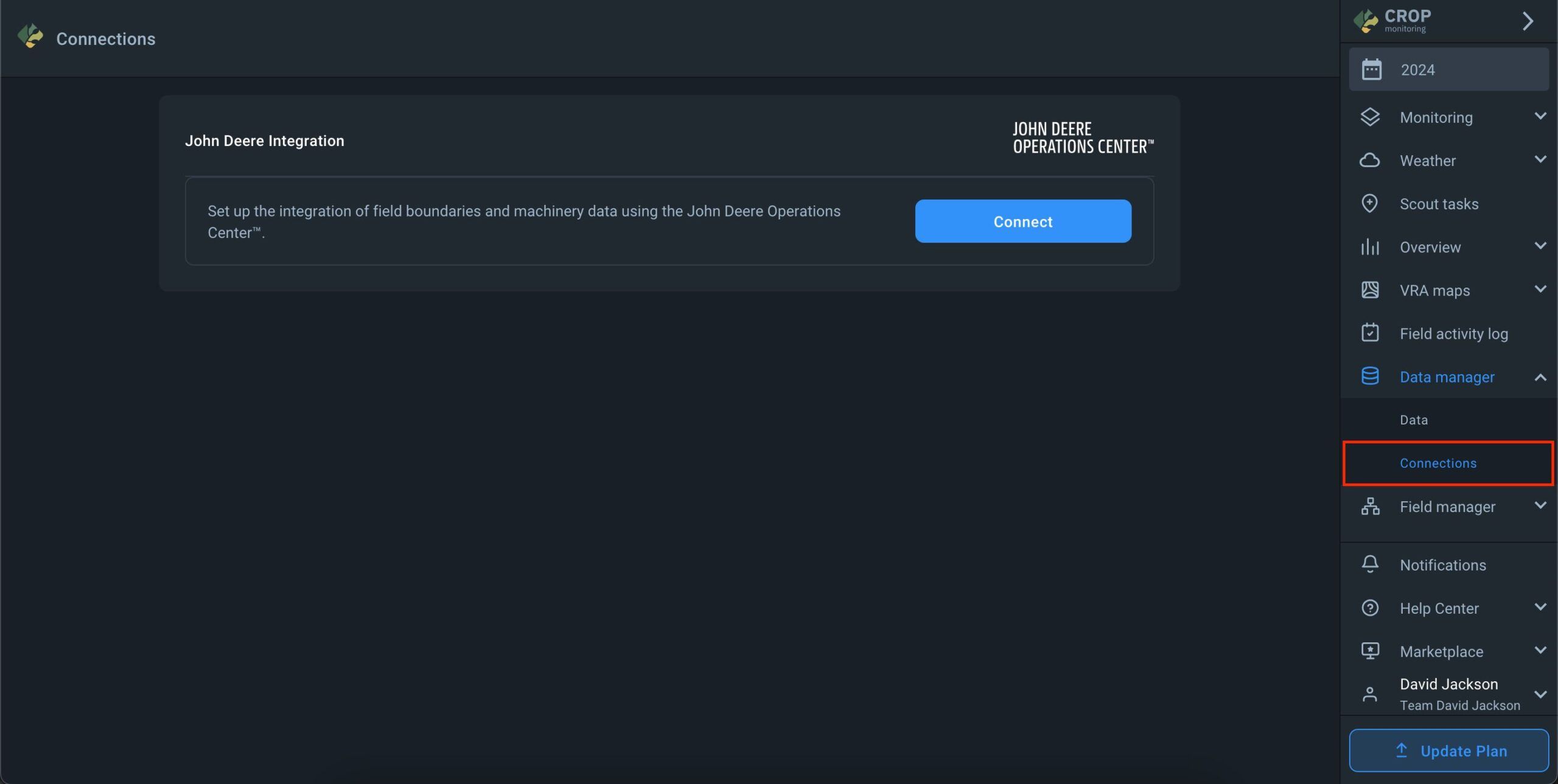

The Connections section is located in the Data Manager tab.

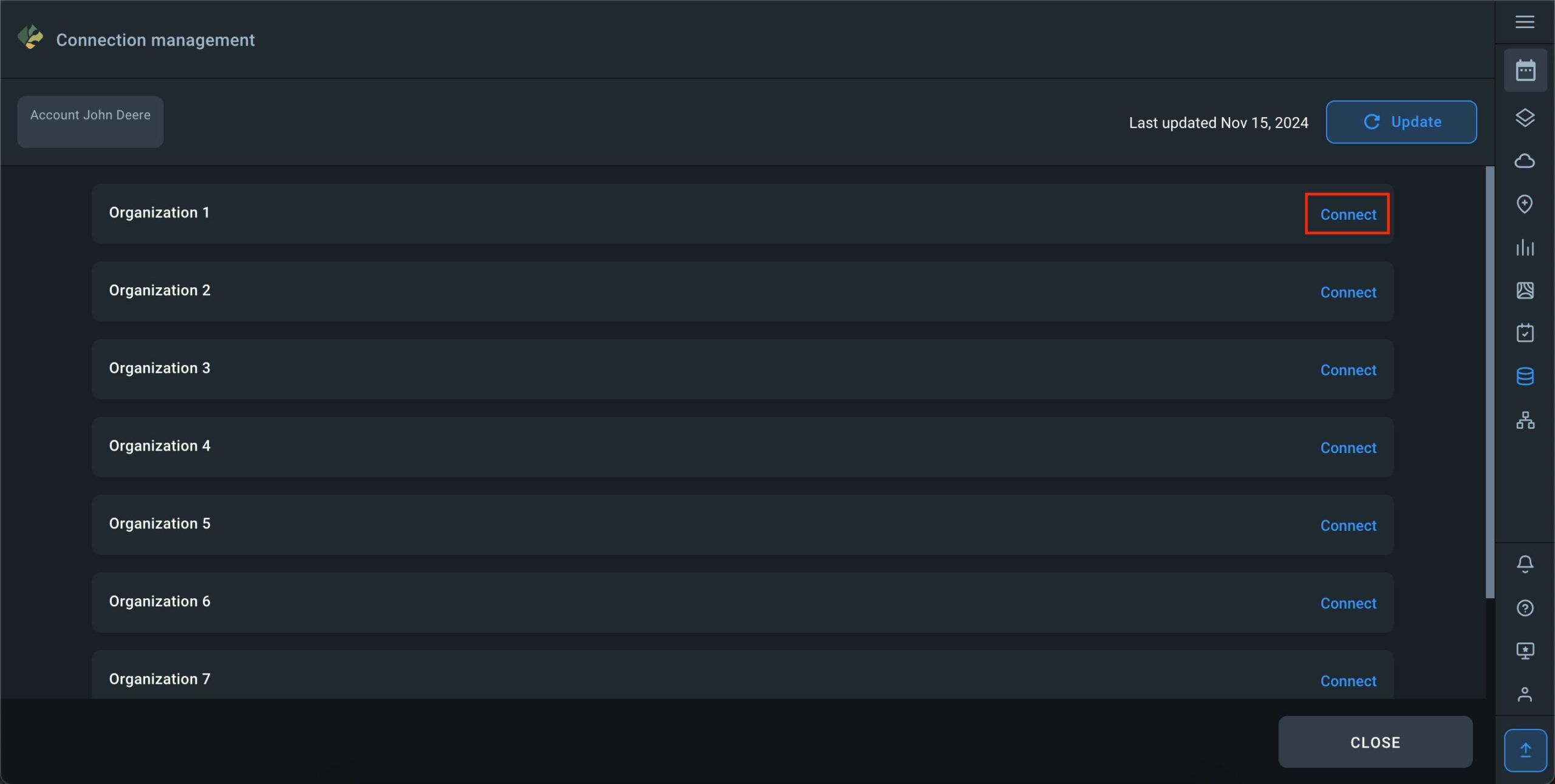

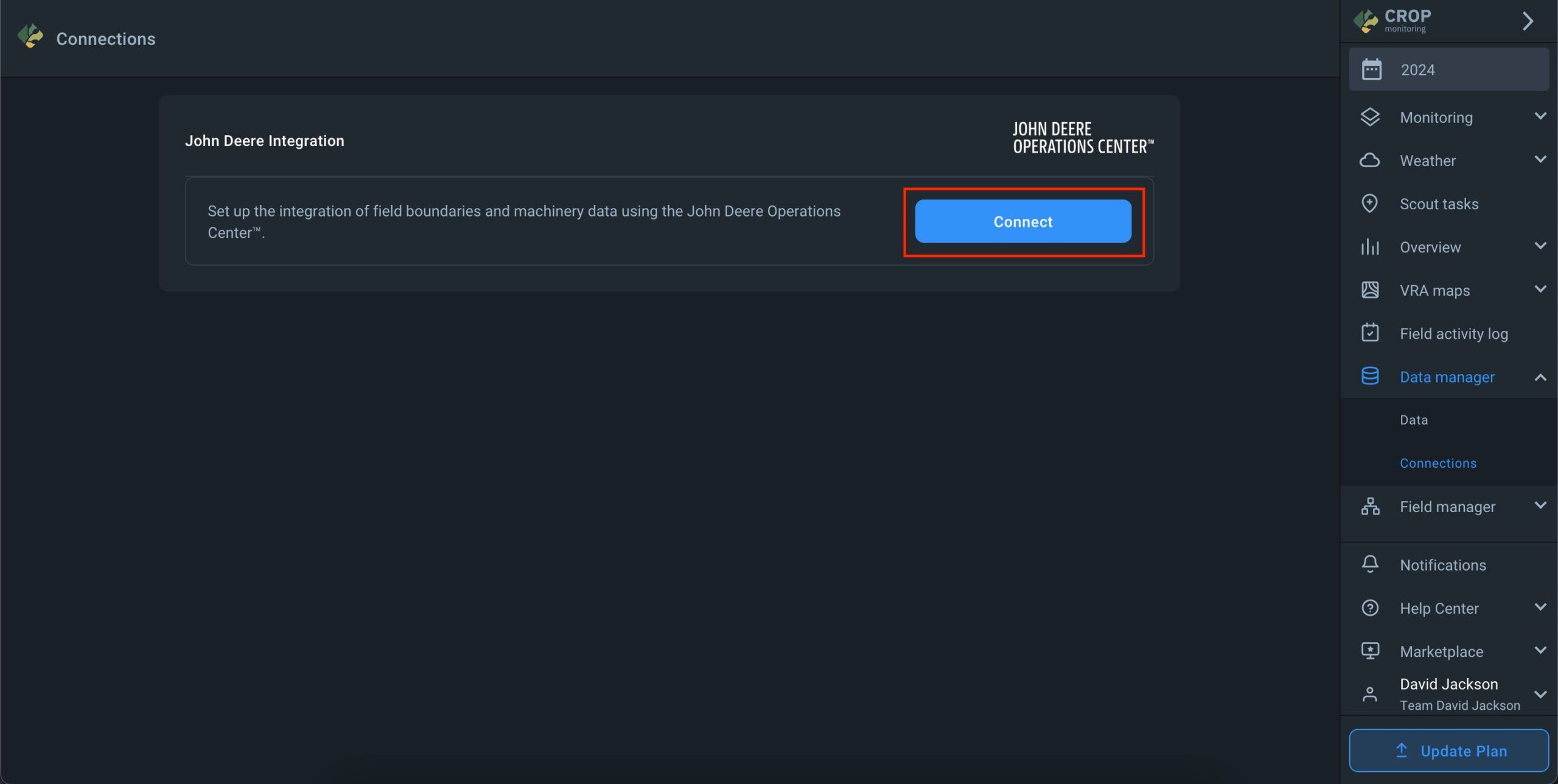

To set up a connection, click the Connect button.

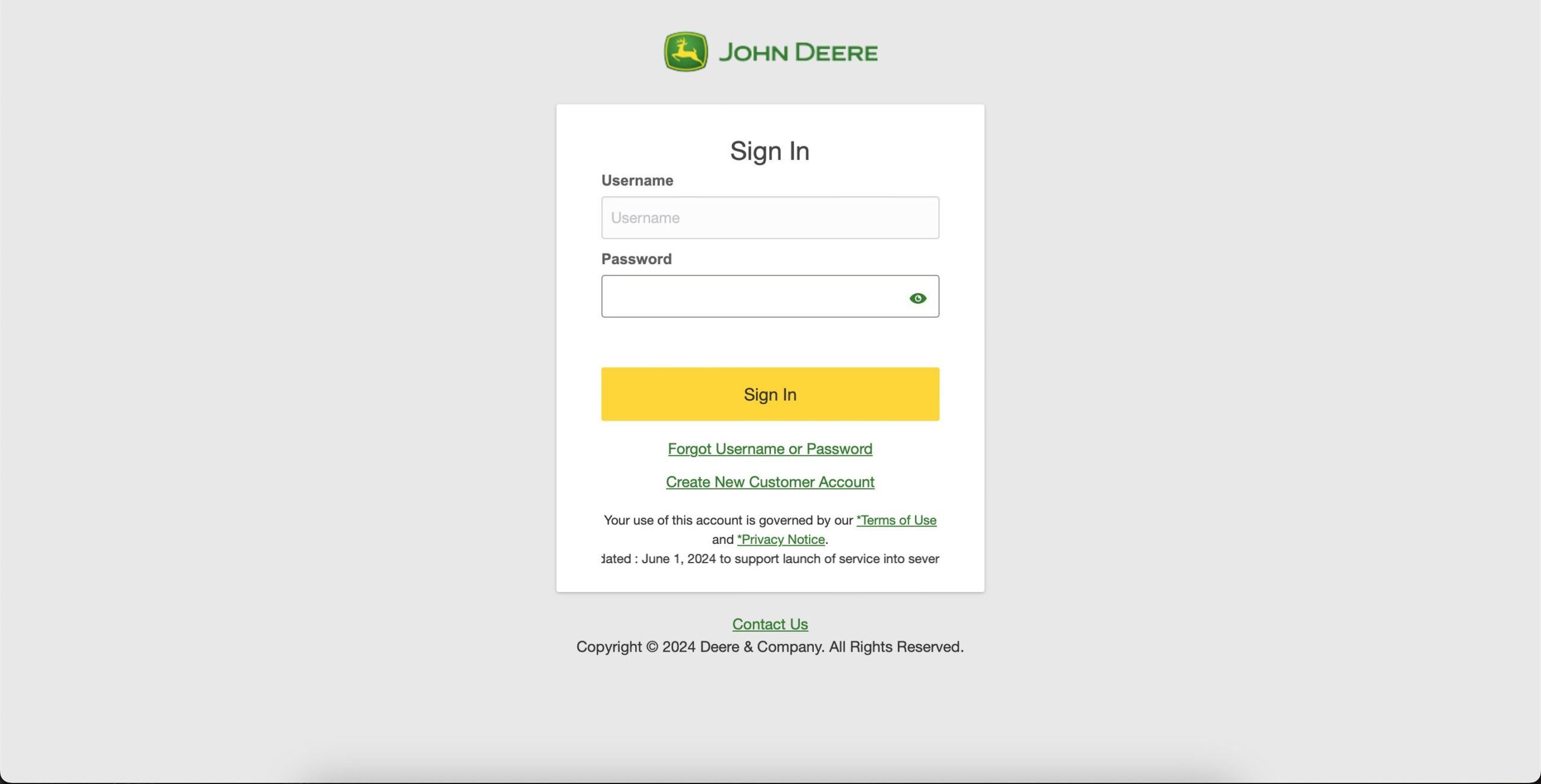

You will be redirected to the John Deere account authorization page. Enter your username, password, and click Sign In.
After successful authorization, you will be redirected back to the Connections page in EOSDA Crop Monitoring, where you will see a list of your organizations from the John Deere account.

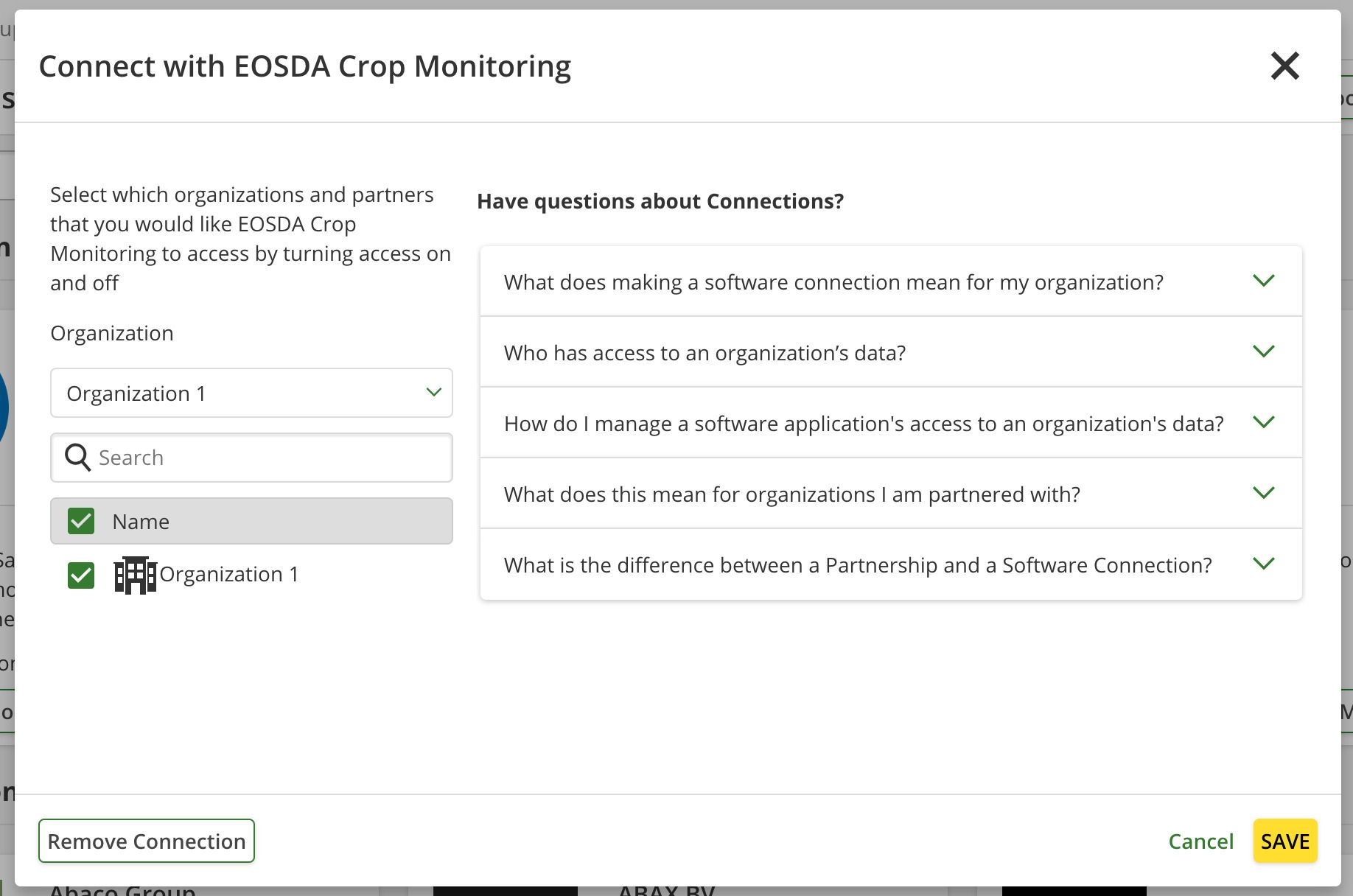

To connect an organization and access its fields, click the Connect button next to the desired organization.
After clicking Connect, you will be redirected to the Connections page in your John Deere account. In the settings window, select the organization you wish to connect and click Save.
Once you grant access to the organization, you will return to the organizations page in EOSDA Crop Monitoring, where the connected organization will be marked as connected.

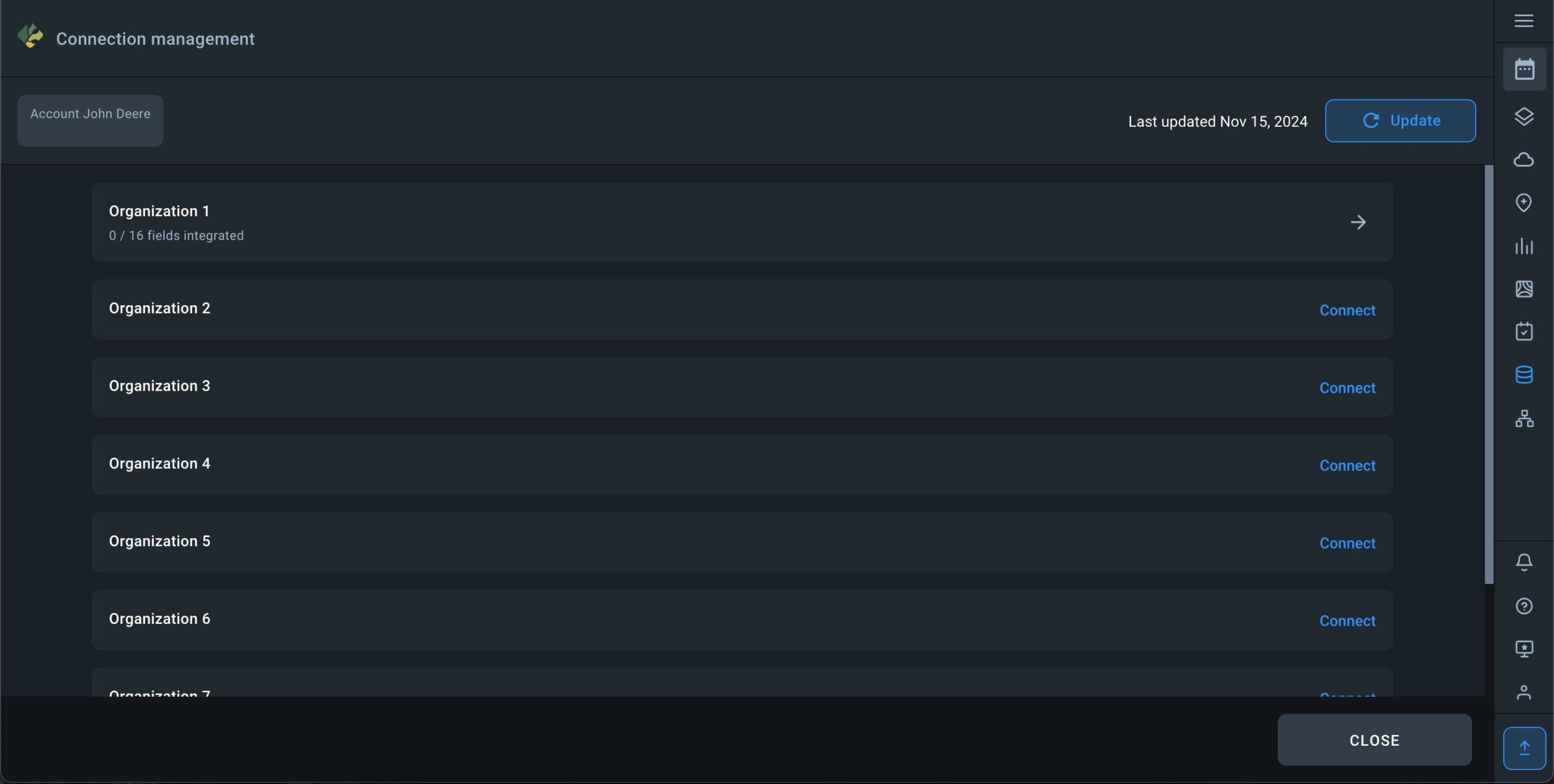

Clicking on a connected organization will open a page displaying the list of fields in that organization.

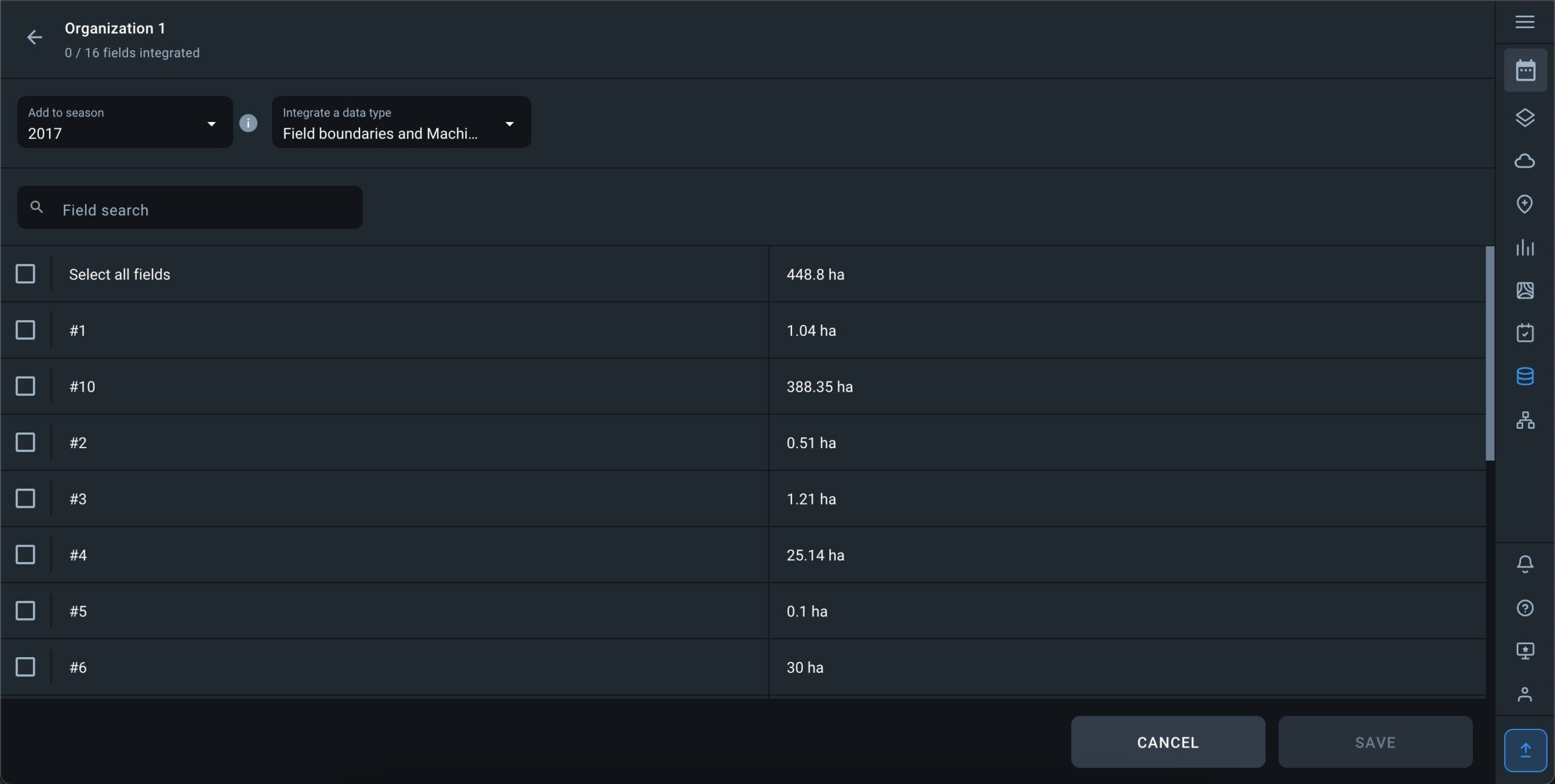

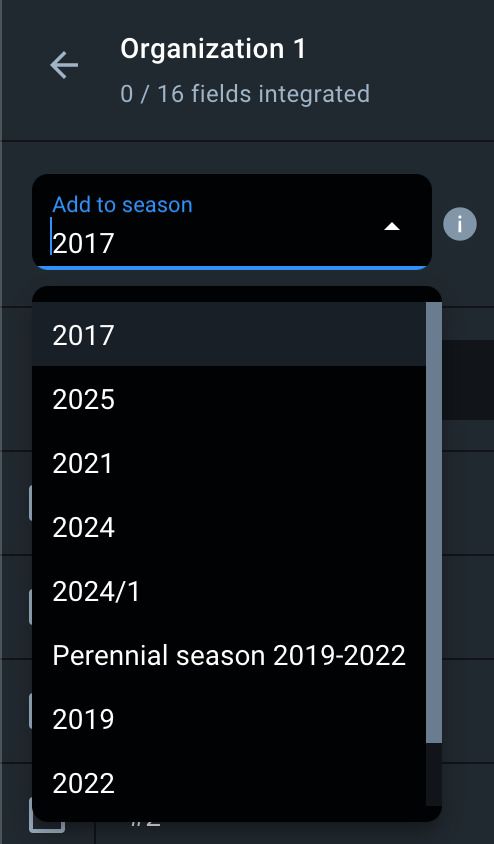

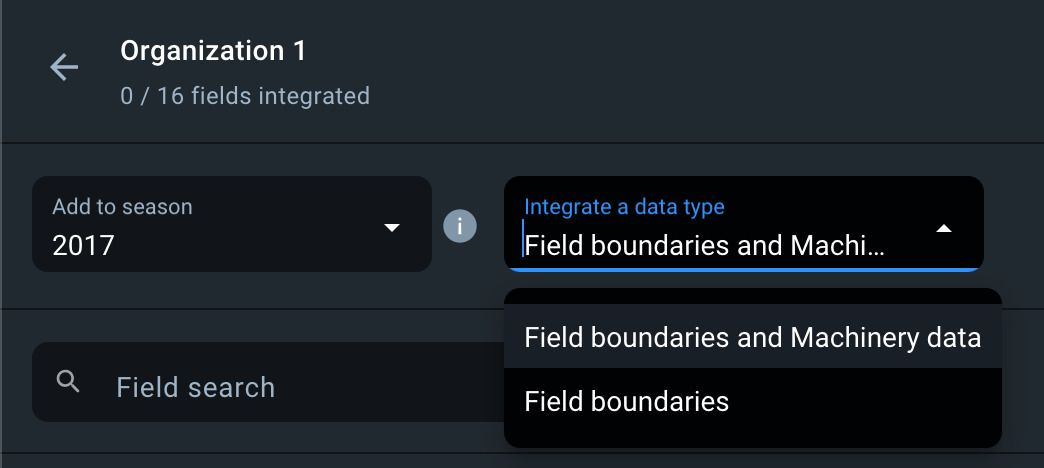

At the top of the page, there are parameters to select before integrating data:
The equipment data will be available in the Data section after the integration is complete.
* Please note: Only equipment data with execution dates matching the selected integration season will be integrated.

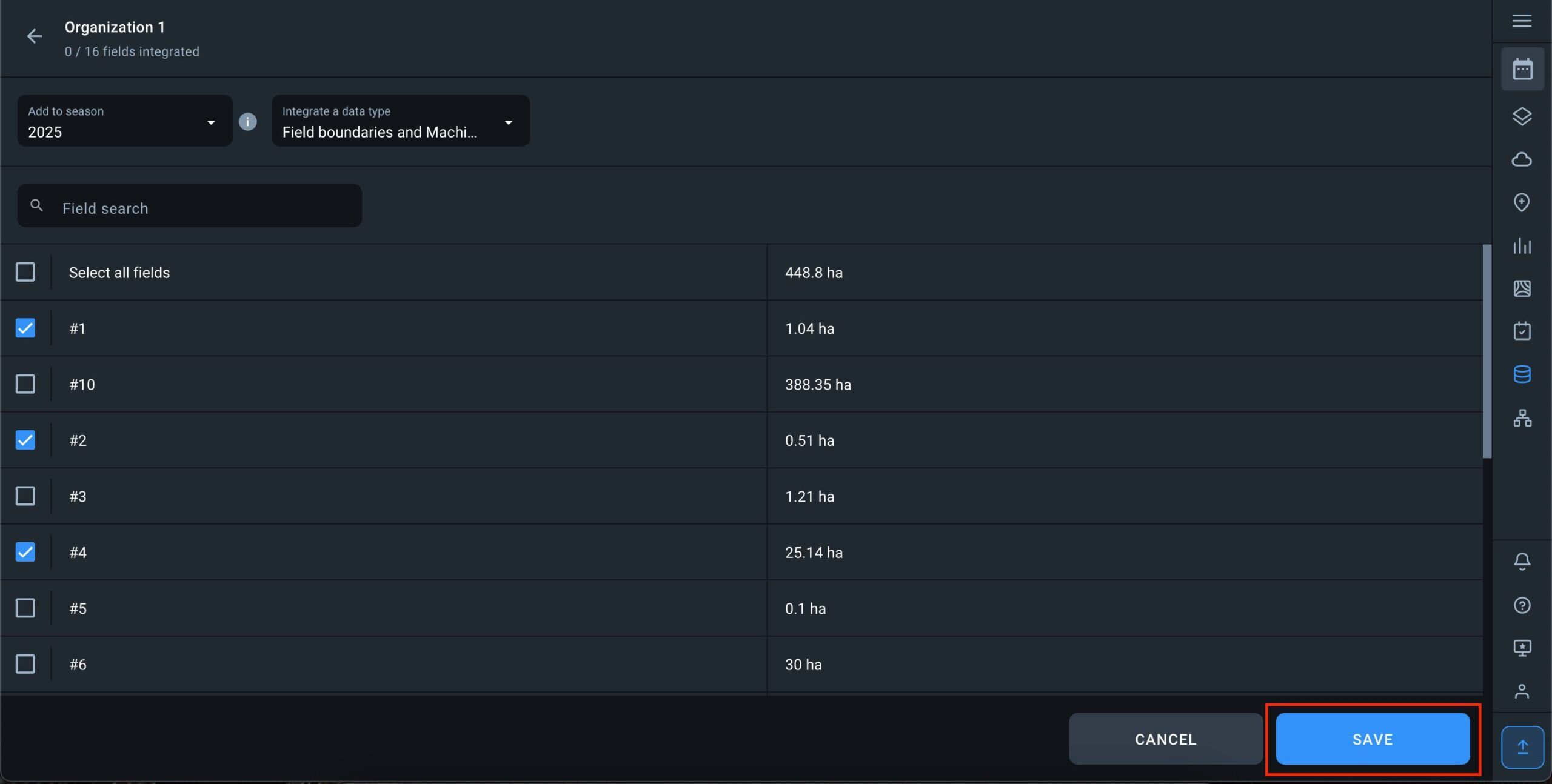

In the field list, you can select multiple fields or all fields for integration.
To start data integration, click the Save button.

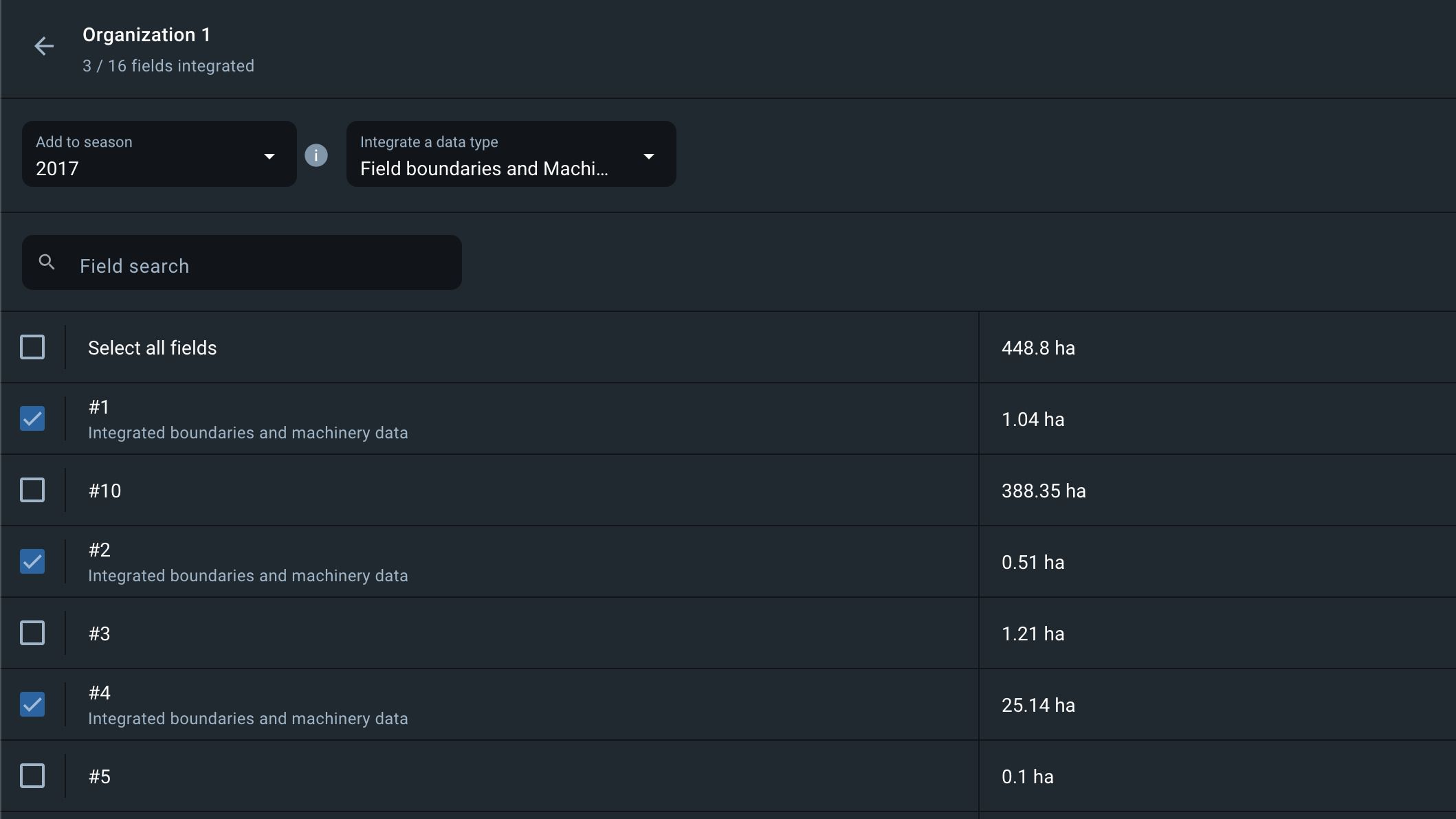

If you are performing integration for the second time, previously integrated fields will be marked as already integrated.

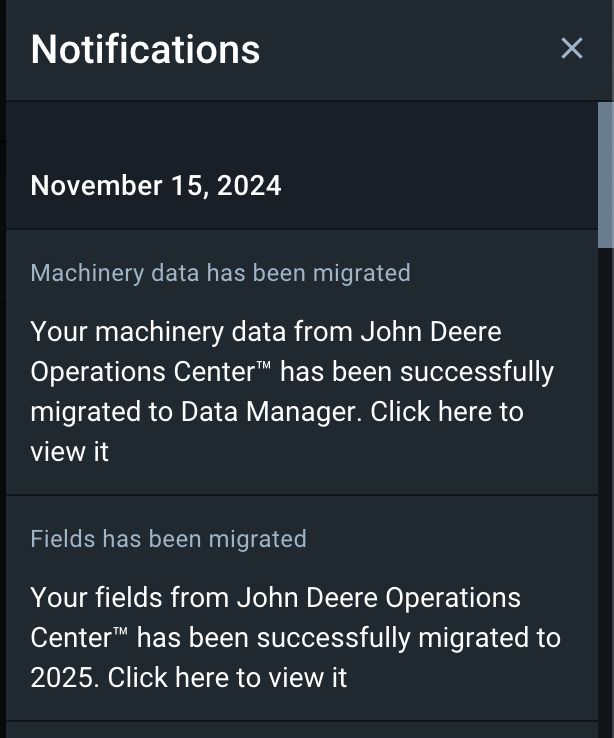

After successful integration, you will receive a notification in the Notifications section.
The Data Update tool on the Connections page should be used in the following cases:

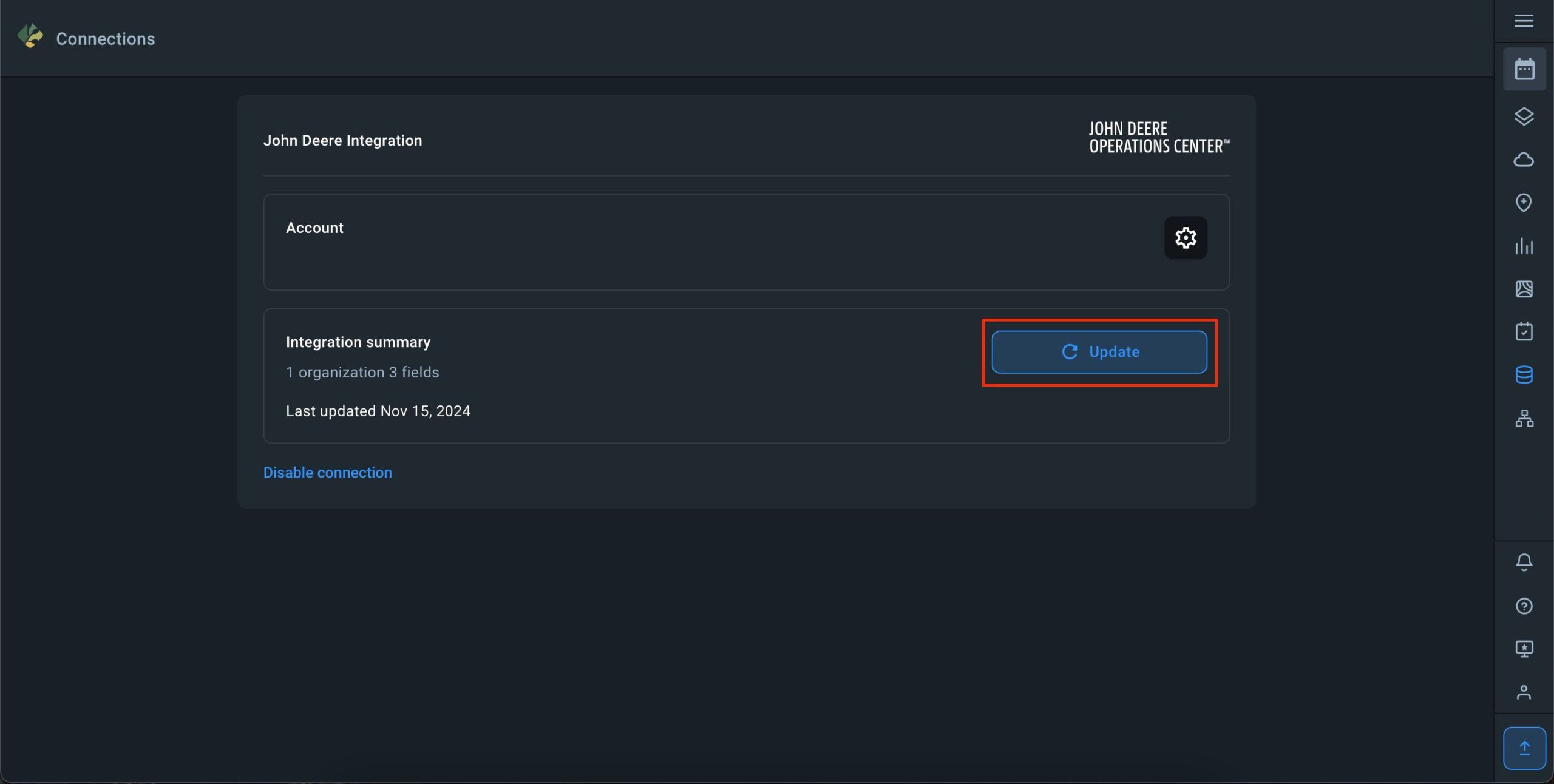

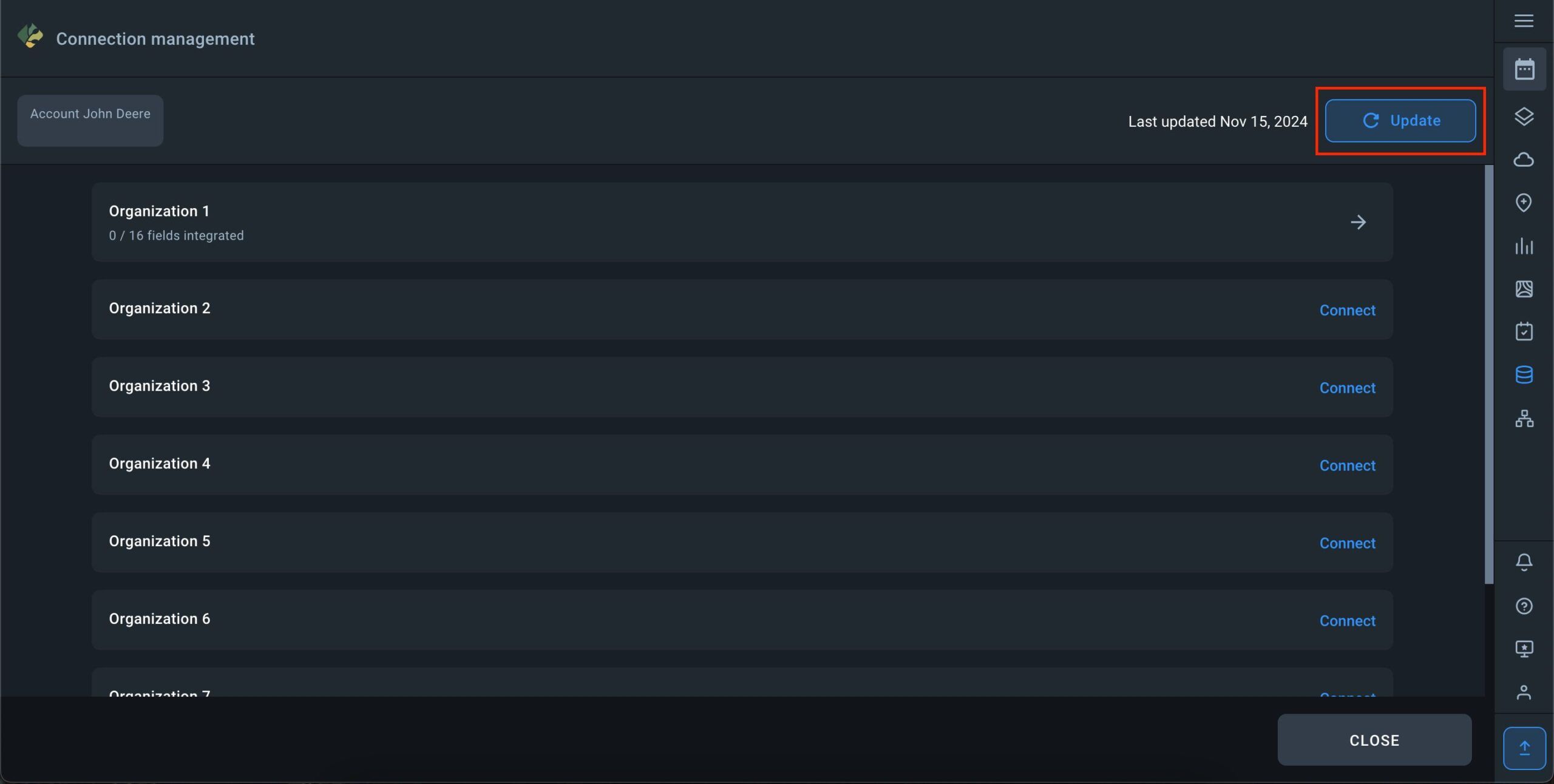

Click the Update button, and the system will search for updates as described above. If updates are found, they will be automatically integrated into EOSDA Crop Monitoring.
The Update button on the organizations list page refreshes all changes that have occurred with organizations in the John Deere account:

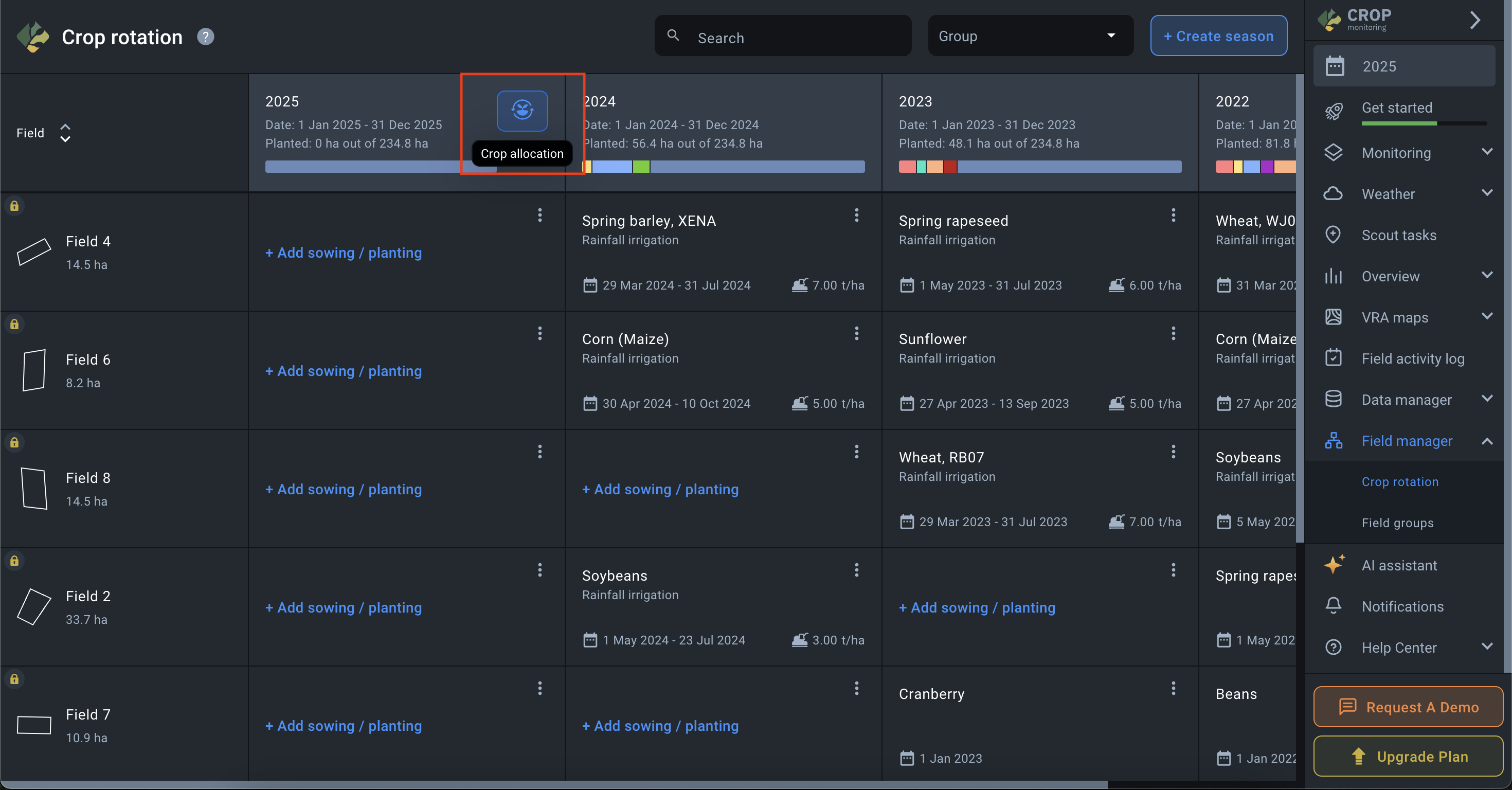

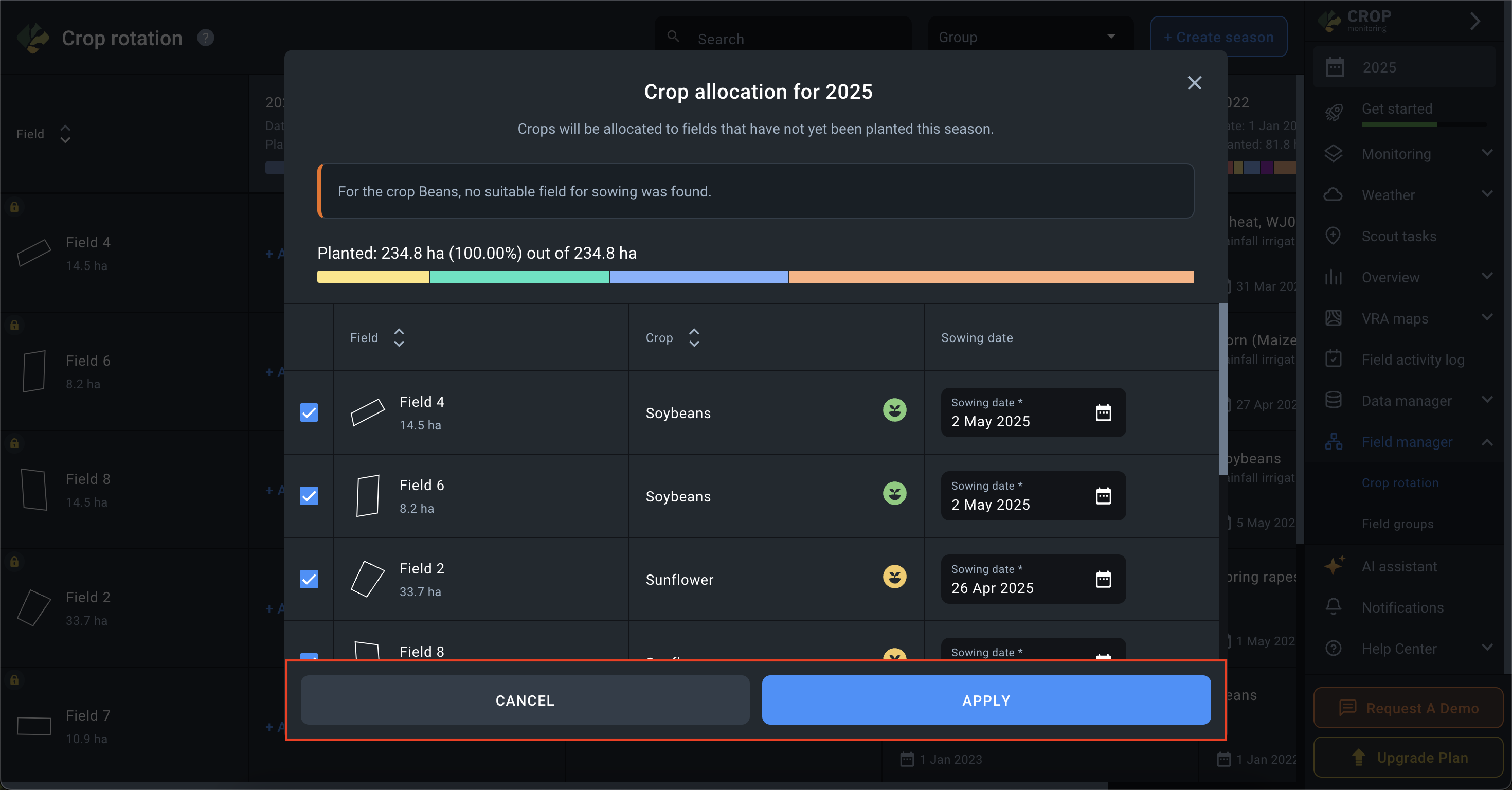

The crop rotation calendar is an essential tool for sustainable farming and food security. With this tool, you can plan new sowings by analyzing historical sowings in a single place.

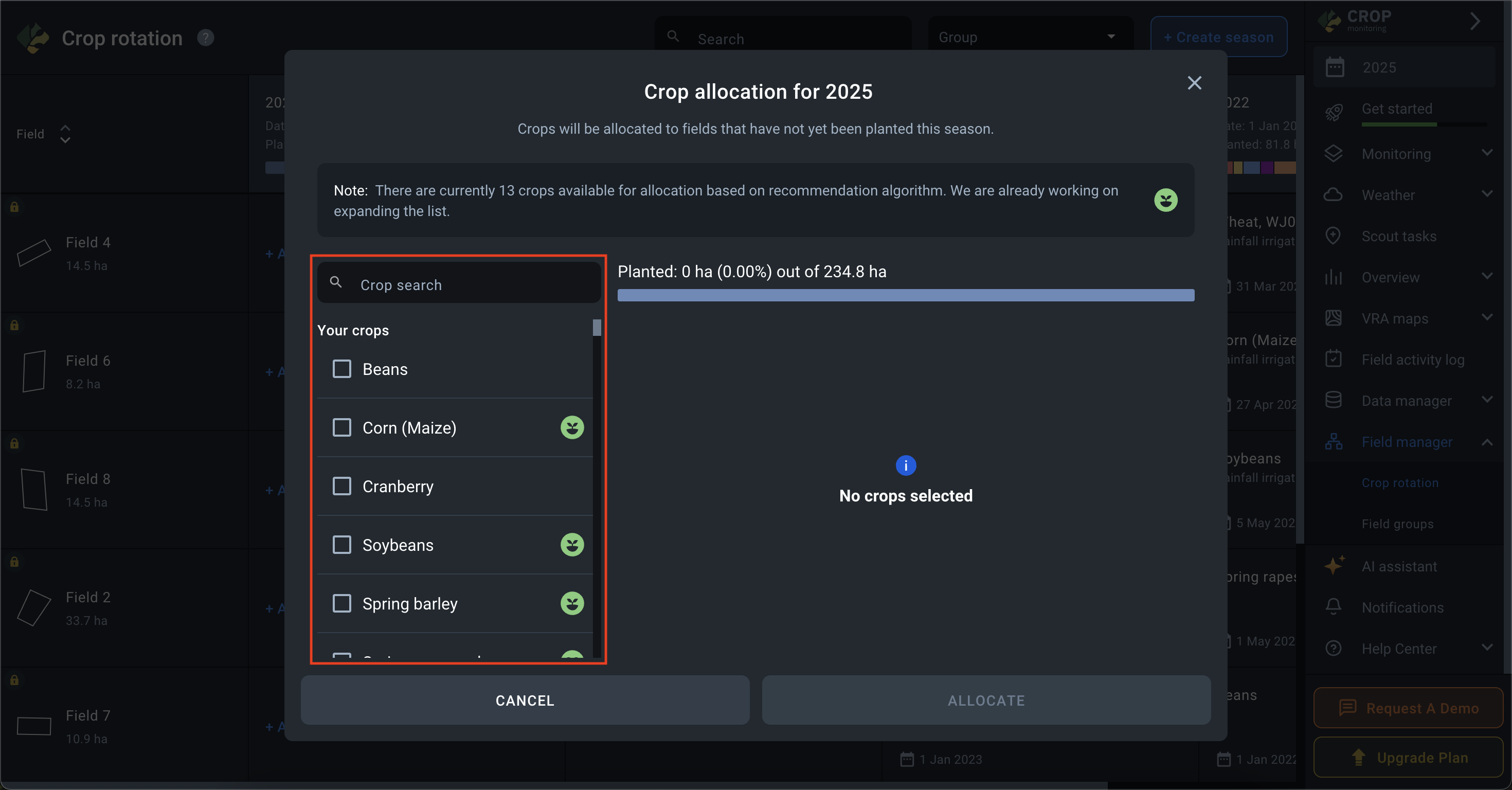

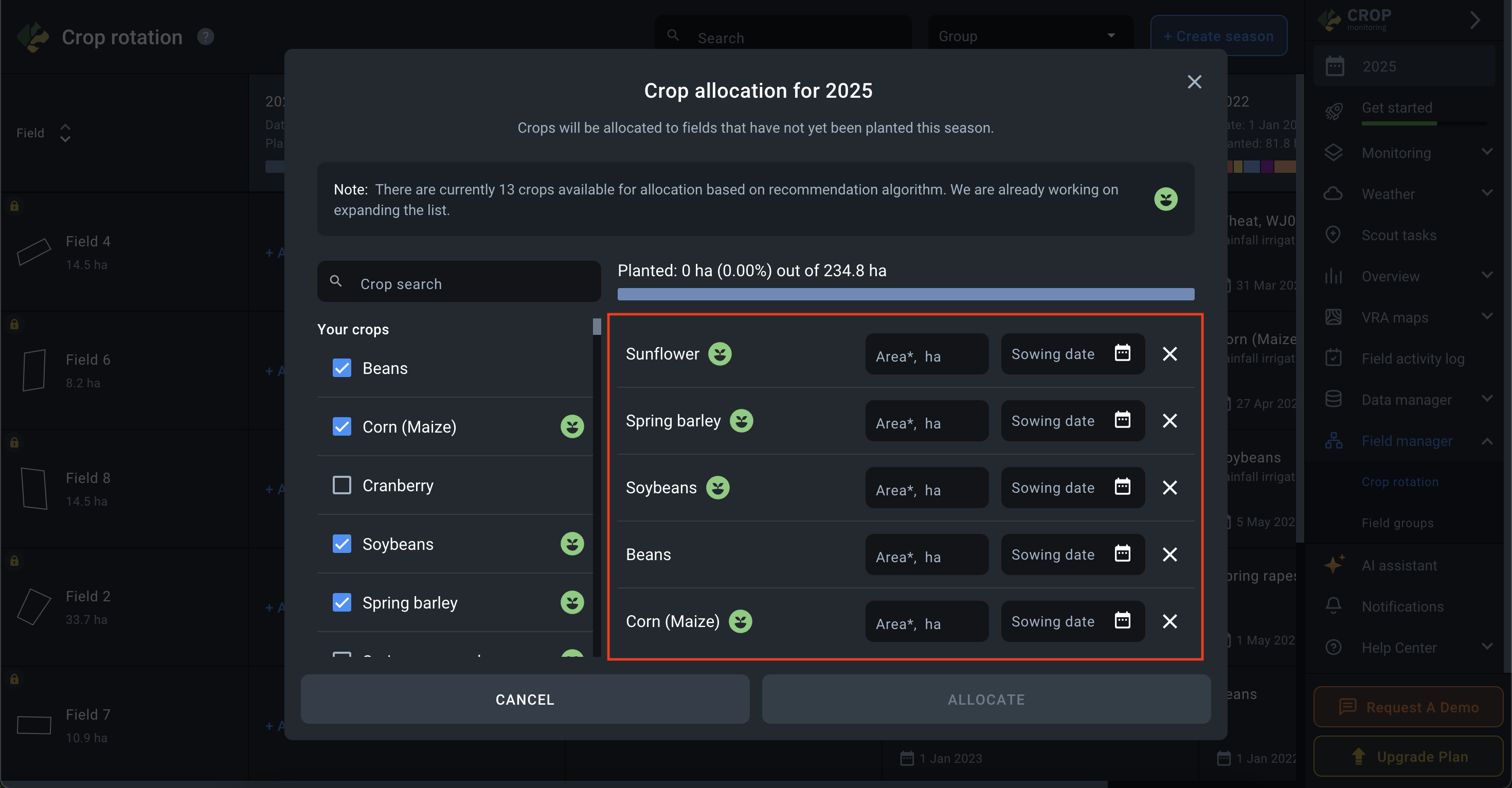

When you navigate to the “Crop rotation” section, the list on the left displays all fields in your account. At the top of the crop rotation calendar, you’ll find:

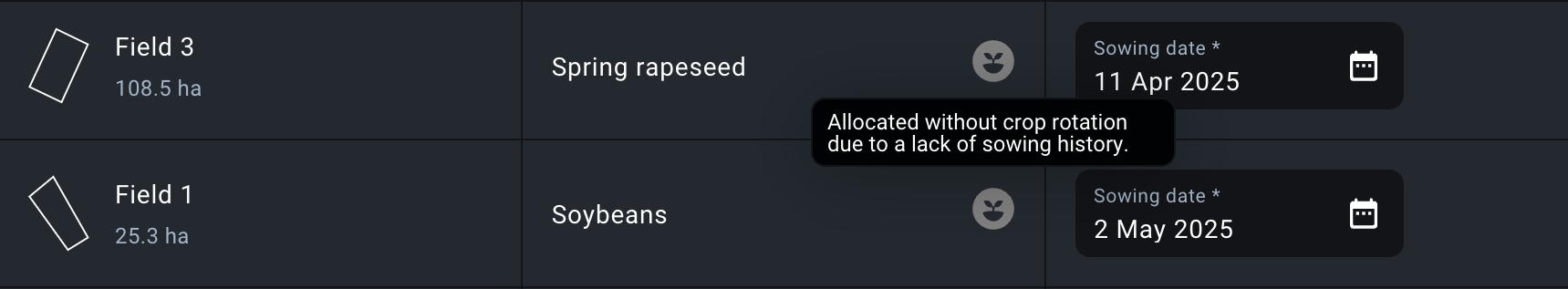

There are three field statuses on the crop rotation calendar for the season:
1) Field not available in the season.
2) Field is available in the season, but data on sowing has not been added.

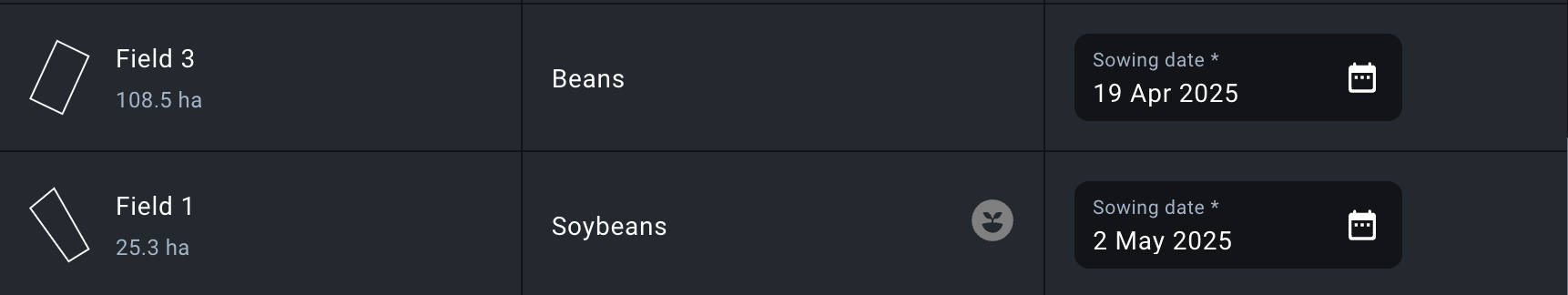

3) Field is available in the season and sowing has been added for it.
1) To add a field to a season, hover above an empty cell in the desired season and click + Add to season.
2) To add data on sowing to a field, click on the cell with the text + Add sowing/planting in the desired season.
3) In the Add sowing/planting window that opens, you must enter the sowing parameters and save them.
4) Once saved, the sowing parameters for the desired season will be displayed in the field cell.
5) Only the parameters you specified are displayed in the sowing cell:
It is also possible to edit sowing parameters or remove fields from the season.
Field group manager is needed to group fields by common characteristics and improve field management.
The Field group manager screen displays the list of groups in your account and the number of fields in each group.
To add a new group, click on the + Add new group button.
In the window that opens, enter the name of the group and add required fields to it.
One field can only belong to one group at a time. Selecting a field that already belongs to a group for adding it to a new group will transfer it from one to the other.
Fields that already belong to a group have a specific marker next to them in the list.
To edit a group, click on the Manage button next to the group you want to edit.
When you open a group, a list of fields that belong to it is displayed on the screen. You can add fields to the group on this screen by clicking the + Add fields button.
You can also remove a field from the group by clicking on the X button next to the desired field.
You can also change the name of the group on this screen.
There is also an option to delete the group. When you delete a group, the fields that were in that group remain in the account without any group.
Team Accounts are accounts that can be shared among multiple users to provide everyone with the same source of information about the same fields or groups of fields, ensuring a more efficient cooperation between various users and a better control of employees by the farm owners.
Delegating, completing, and reporting scout tasks is considerably faster and easier when a Team Account is used. Every team member gets 24/7 access to the satellite monitoring of fields and can react to crop issues according to the permissions defined by the role that the Team Owner has assigned to them.
A problem with the crops can be noticed by any team member who can then create a scout task and either complete it themselves or assign a team member who is available at the moment. When the check-up is completed and the online report is generated in the scout task, the field owner will be able to access it any time via the Team Account.
Who else can benefit from using the Team Management feature?
For the agro-cooperative members:
For agro-consultants:
For agro-traders:
For insurance companies:
To increase the efficiency of tending to the crops growing on all of your fields on a regular basis, you need a larger team under your full remote control. By adding new users to your Team Account, you can build a team of employees that will help you cut costs on unnecessary field activities and reduce time waste.
You can add a new user to the team in three simple steps.
Step 1. Click on the name of your account in the bottom right corner of the side menu.
Step 2. Select “Team Management” from the drop-down menu.
Step 3. Once in the Team Management dashboard, click on + Invite New User.
If this is the first time you’ve opened the Team Management dashboard, you can also click on the button “INVITE A TEAM MEMBER” located in the center of the screen.
Step 4. In the Invitation window, enter the email address of the user(s) you want to invite, select the fields or field groups that will be available to this user*, and assign the role. Then click Invite.
*A user can have access to only one field, several fields, one or more groups of fields, or all fields at once.
Note: Under the name of the role you’ll see the list of user access permissions the role entails.
The user who is being invited will receive an email with the invitation and the link to the Team Account*.
*The same user can be a member of multiple teams.
The practice of assigning roles with clearly defined accountability and access limitations is very important when it comes to team management. It means less worrying about what your employees might accidentally do to your crops or fields or even just messing up something in your EOSDA Crop Monitoring account.
This is why, currently, every Team Account Owner on EOSDA Crop Monitoring can assign one of the three roles to each team member: Admin, Scout, Observer.
Let’s see how these roles differ from one another in terms of accountability and access limitations.
The Admin user has permissions to:
The Scout has permission to:
The Observer has permissions to:
*The observer can only complete those tasks that have been assigned to him or her.
If you have a EOSDA Crop Monitoring account, you are automatically an Owner of a Team Account. Owners and Admins can view all the relevant information about their teams on the Team Management dashboard.
The Team Management dashboard displays:
*The “last active” information provides the Owners and Admins with more control over each team member.
The Team Owner or Admin can edit the user’s access to the fields and/or reassign their role.
Team Owners and Admins can also delete/remove users from the Team.
If the user has not accepted/confirmed the invitation, the Owner or Admin will see the “resend invitation” action that needs to be performed for this user.
If you are the Team Owner or Admin, you can edit the name of the Team Account by clicking on the pencil icon next to the name.
Tip: Keep the name of the team short and simple so it can be more easily recognized by the team members when switching between multiple teams.
If you are a member of more than one team, you can easily switch between the teams. All you need to do is to click on the My Account icon and select “Switch team”.
You will see the list of your teams. Click on the one you want to switch to and then click SAVE.
If you are a member of multiple teams, the system will automatically show you:
In the list of your teams, you can also see the roles you have been assigned in each Team Account.
While switching teams, you can also set one team as the default. Whenever you log into EOSDA Crop Monitoring, you’ll see the fields available to you in the default Team Account.
To set the team as default, use the toggle switch in the “switch team” menu.
Use Settings to select interface language, metric system, and whether demo content will be displayed. The ability to hide demo content is available for Pro users only.
Note: Demo content includes a demo field, demo scouting tasks, and a dataset for the Data Manager feature.
To get access to the paid features of EOSDA Crop Monitoring, upgrade your plan to Essential or Professional. You can learn more about the specific functionality available within each subscription plan on our Pricing page.
To view the Pricing page, click or tap on the arrow button in the bottom right corner of the screen.
If you’re using the Essential plan, you can monitor up to 1000 ha.
For the Professional plan, you are free to choose how many hectares you would like to monitor and you can always add more hectares for an additional price.
We also offer a more personal approach with the Enterprise plan containing custom solutions and tailored prices for farms of over 5000 ha, agricultural cooperatives, advisors, IT companies, and other customers.
To explore more solutions, refer to our add-ons store. You can access it by clicking or tapping the appropriate icon on the right side menu.
Another way to access the add-ons store is directly from the Pricing page.
Among other advantages, users can access the tool through the API.
To get access to EOSDA Documentation you need to click My account on the sidebar menu and then on the API icon. Once on the API page, click Get started.
Now get the API key by registering at the developer portal.
